RBCTDTM12VPMR

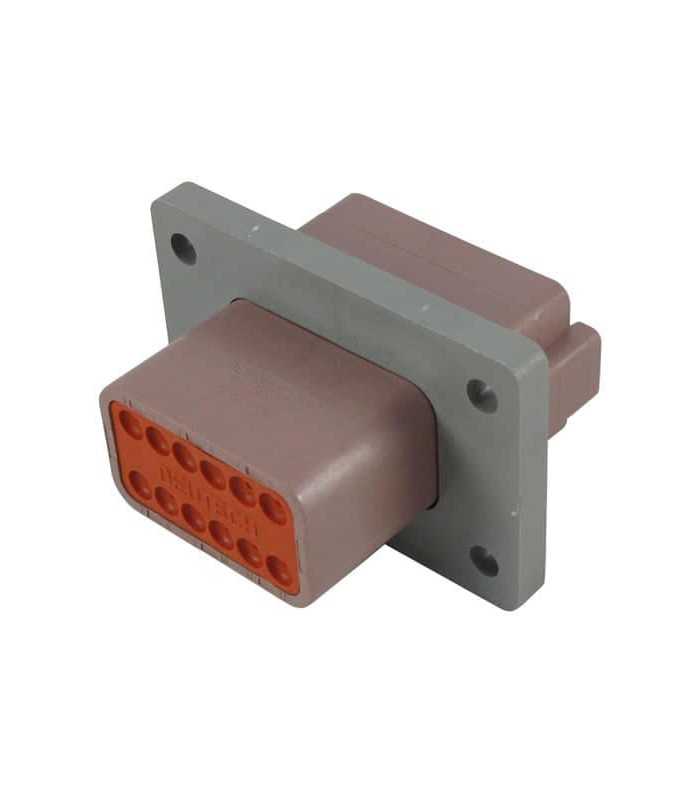

Connector DT Series Female 12 Way from panel Brown

Errebi code: 60224
Producer code: DT04-12PD-L012
Producer: Deutsch
Read moreShow less
€3.87 (tax excl.)
€4.72 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €4.26 €4.66
25 €3.78 €23.55
50 €3.54 €59.02
100 €3.06 €165.72
250 €2.60 €530.57
500 €2.36 €1,180.35
1000 €2.12 €2,599.13
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTDTF12VPMR
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 12 positions
Pitch: 9.12mm
Gender: Male
Mounting Style: Mounting Flange
Termination style: crimp
Max wire diameter: 14 AWG
Min Gauge Wire: 20 AWG
Application: from wire to wire
Fixing hole diameter: 1.5mm
Brand: DEUTSCH
Brown color
Current rating: 13 A
Height: 22.25 mm
Housing material: polyamide (PA)
Ingress Protection: IP68, IP6K9K
Insulation: isolated
Length: 45.92mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Number of lines: 2 lines
Product Type: Automotive Connectors
Row spacing: 4.45mm
Rated voltage: 250V
Width: 35.56 mm
Unit weight: 26 g
Read moreShow less
Product Details
RBCTDTF12VPMR

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Brown
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
45,92x35,56x22,25 (L x W x H)
Flammability
94V-0
Voltage
250V
Mounting
On panel
Kind
Female
Number of poles
12
Number of rows
2
Pitch
9.12 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
