RBCTDTPF12VCE04VR

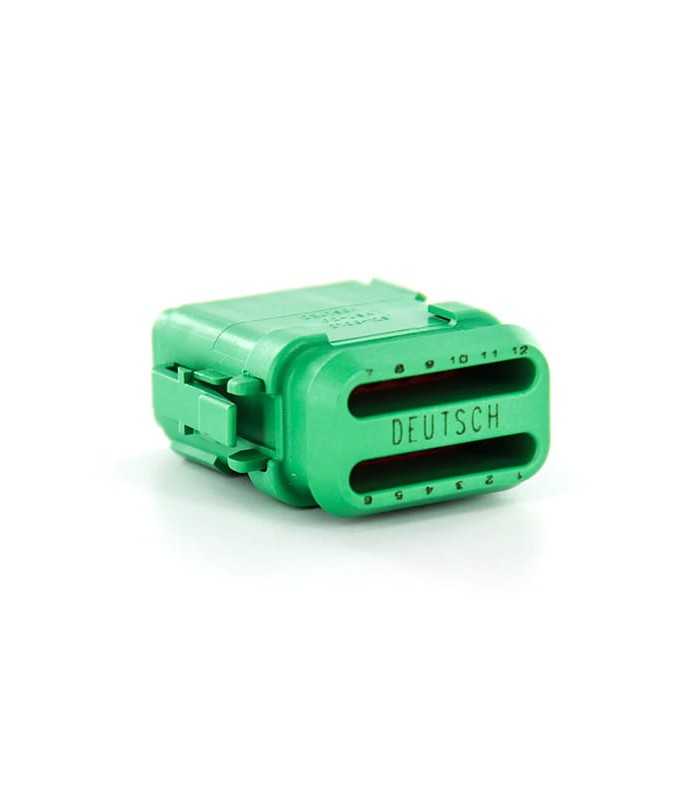

Connector DT Series Male 12 Way CE04 Green

Errebi code: 60215
Producer code: DT06-12SC-CE04
Producer: Deutsch
Read moreShow less
€4.13 (tax excl.)
€5.04 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €4.75 €2.88
25 €4.46 €14.40
50 €3.53 €75.58
100 €3.17 €187.13
250 €2.81 €557.90
500 €2.52 €1,259.65
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTDTPF12VCE04VR
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 12 positions
Pitch: 9.12mm
Gender: male
Mounting Style: Cable Mount / Free Hanging
Termination style: crimp
Max wire diameter: 14 AWG
Min Gauge Wire: 20 AWG
Brand: DEUTSCH
Green colour
Current rating: 13 A
Height: 40.56 mm
Housing material: polyamide (PA)
Ingress Protection: IP68, IP6K9K
Insulation: isolated
Length: 30.94mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Number of lines: 2 lines
Product Type: Automotive Connectors
Row spacing: 4.45mm
Rated voltage: 250V
Width: 18.19 mm
Unit weight: 19.300 g
Read moreShow less
Product Details
RBCTDTPF12VCE04VR

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Green
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
30.94x18.19x40.56 (L x W x H)
Flammability
94V-0
Voltage
250V
Mounting
On cable
Kind
Male
Number of poles
12
Number of rows
2
Pitch
9.12 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
