RBCTDTMF4VP

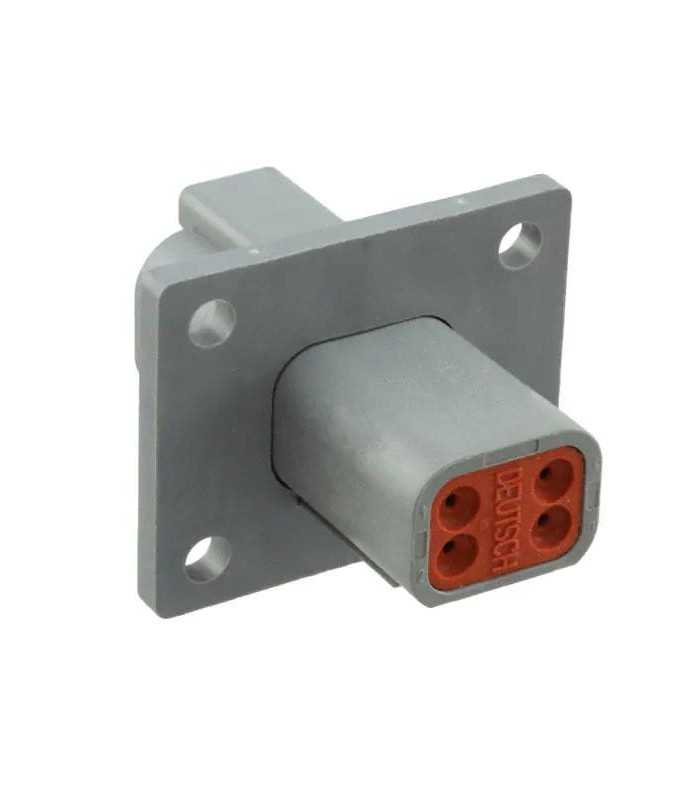

Connector DT Series Female 4 Way from panel

Terminal DT size 16 male 16-20 awg
Errebi code: 57800
Producer code: DT04-4P-L012
Producer: Deutsch
Read moreShow less
€3.78 (tax excl.)
€4.61 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €4.15 €4.61
25 €3.69 €23.06
50 €3.46 €57.65
100 €3.00 €161.41
250 €2.54 €518.81
500 €2.31 €1,152.90
1000 €2.08 €2,536.38
Last items in stock 7 Items
Condition
New
Reference:
RBCTDTPM4VPL012GR
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 4 positions
Pitch: 4.45mm
Gender: Female
Mounting Style: Mounting Flange
Termination style: crimp
Maximum wire diameter: 14 AWG
Minimum wire diameter: 20 AWG
Fixing hole diameter: 1.5mm
Color: Grey
Rated current: 13A
Height: 31.75 mm
Housing material: polyamide (PA)
Degree of protection: IP68, PI6K9K
Insulation: isolated
Length: 45.92mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Number of lines: 2 lines
Product Type: Automotive Connectors
Leading: 9.12 mm
Type: 4 way
Rated voltage: 250V
Width: 40.51 mm
Unit weight: 11.786 g
Read moreShow less
Product Details
RBCTDTPM4VPL012GR

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Grey
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
45.95x40.51x31.75 (L x W x H)
Flammability
94-HB
Voltage
250V
Mounting
On panel
Kind
Male + Female
Number of poles
4
Number of rows
2
Pitch
4.45 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
