RBCTDTMF2VP

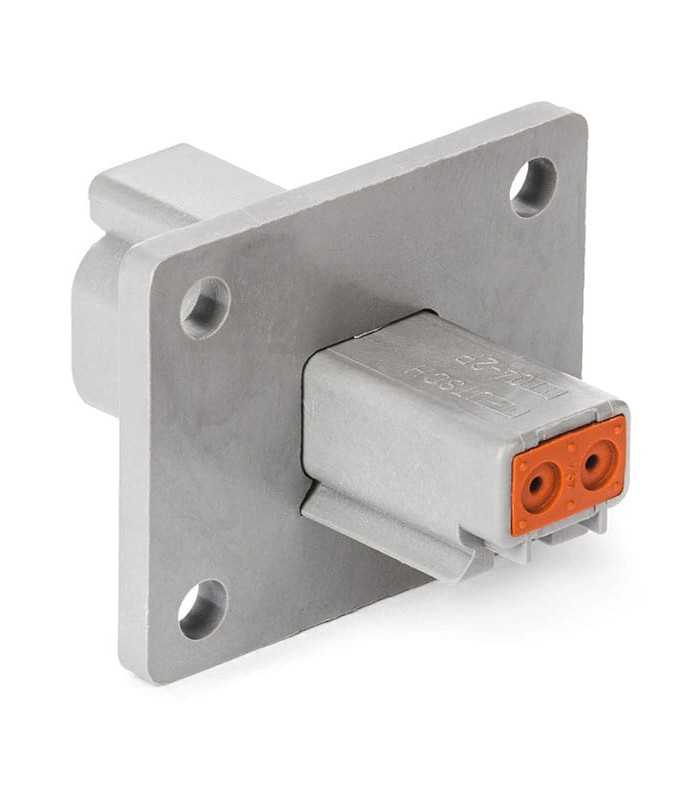

Connector DT Series Female 2 Way from panel

Errebi code: 57798
Producer code: DT04-2P-L012
Producer: Deutsch
Read moreShow less
€2.43 (tax excl.)
€2.96 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.67 €2.92
25 €2.37 €14.79
50 €2.22 €37.06
100 €1.92 €104.06
250 €1.63 €333.15
500 €1.48 €741.15
1000 €1.33 €1,632.01
Available in stock 77 Items
Condition
New
Reference:
RBCTDTF2VP
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 2 positions
Pitch: 5.46mm
Gender: Female
Mounting Style: Mounting Flange
Termination style: crimp
Maximum wire diameter: 14 AWG
Minimum wire diameter: 20 AWG
Fixing hole diameter: 1.5mm
Color: Grey
Rated current: 13A
Height: 31.75 mm
Housing material: polyamide (PA)
Degree of protection: IP68, IP6K9K
Insulation: isolated
Length: 43.38mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Number of lines: 1 line
Product Type: Automotive Connectors
Rated voltage: 250V
Width: 41.51 mm
Unit weight: 8.700 g
Read moreShow less
Product Details
RBCTDTF2VP

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Grey
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
43.38x41.51x31.75 (L x W x H)
Flammability
94-HB
Voltage
250V
Mounting
On panel
Kind
Male + Female
Number of poles
2
Number of rows
1
Pitch
5.46 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
