RBCTDTM12VP

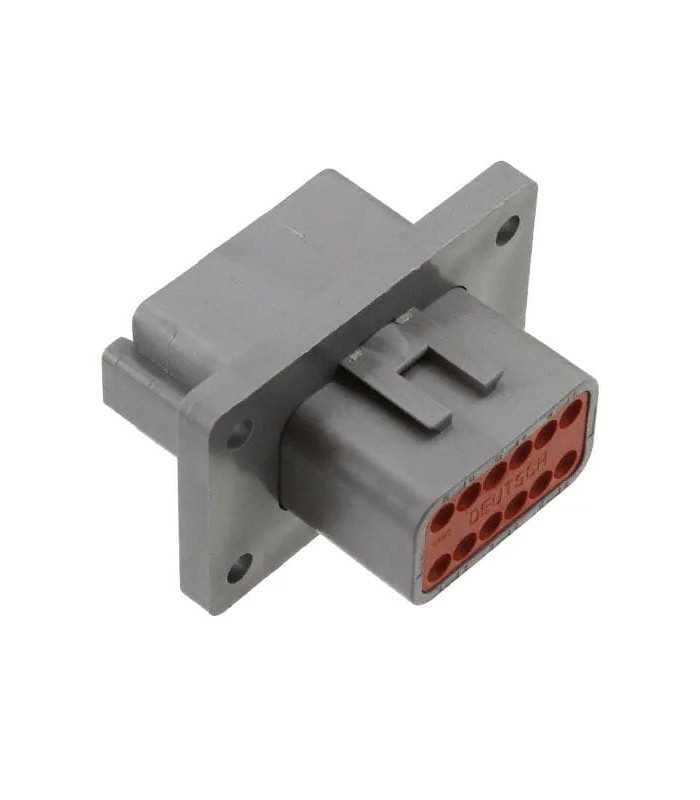

Connector DT Series Female 12 Way from panel

Errebi code: 57803
Producer code: DT04-12PA-L012
Producer: Deutsch
Read moreShow less
€4.39 (tax excl.)
€5.36 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €5.05 €3.06
25 €4.74 €15.30
50 €3.75 €80.34
100 €3.37 €198.91
250 €2.98 €593.02
500 €2.68 €1,338.95
Last items in stock 5 Items
Condition
New
Reference:
RBCTDTPM12VPL012GR
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 12 positions
Pitch: 9.12mm
Gender: Female
Maximum wire diameter: 14 AWG
Minimum wire diameter: 20 AWG
Fixing hole diameter: 1.5mm
Color: Grey
Contact type (M / F): without pin contacts
Rated current: 13A
Height: 22.25 mm
Housing material: polyamide (PA)
Degree of protection: IP68, IP6K9K
Insulation: isolated
Length: 45.92mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Number of lines: 2 lines
Product Type: Automotive Connectors
Lead spacing: 4.45mm
Type: 12 way
Rated voltage: 250V
Width: 35.56 mm
Unit weight: 22.035 g
Read moreShow less
Product Details
RBCTDTPM12VPL012GR

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Grey
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
45.92x35.56x22.25 (L x W x H)
Flammability
94-HB
Voltage
250V
Mounting
On panel
Kind
Male + Female
Number of poles
12
Number of rows
2
Pitch
9.12 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
