RBCTDTM3VPFE004

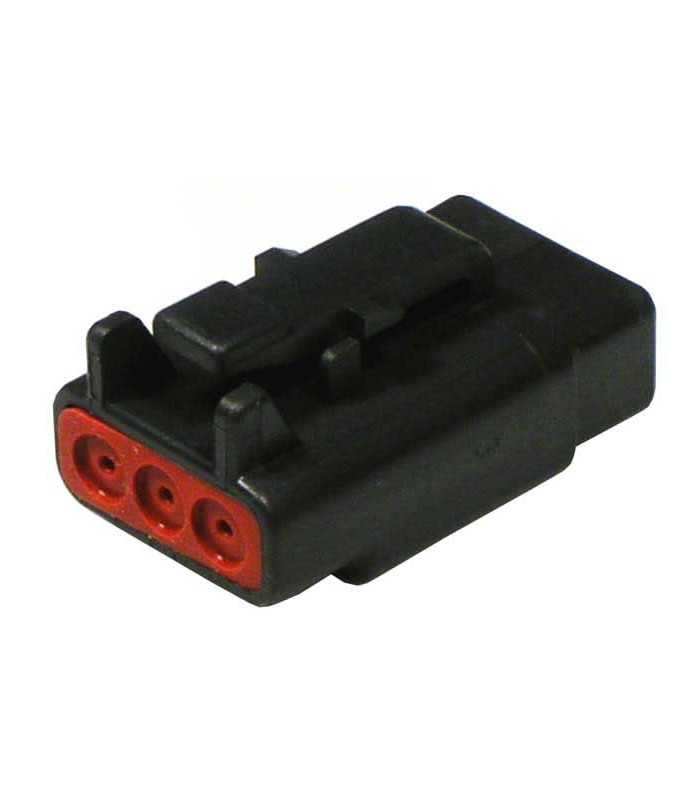

Connector DTM Series Male 3 Way E004

Connector Headlamp SICMA Male 8 way Sealed Black
Errebi code: 57784
Producer code: DTM06-3S-E004
Producer: Deutsch
Read moreShow less
€2.12 (tax excl.)
€2.59 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.33 €2.55
25 €2.07 €12.90
50 €1.94 €32.33
100 €1.68 €90.78
250 €1.42 €290.65
500 €1.29 €646.60
1000 €1.16 €1,423.81
'Available in 15 working days from the order.'
Condition
New
Reference:
RBCTDTM3VPFE004
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 3 positions
Pitch: 4.19 mm
Gender: male
Termination style: crimp
Maximum wire diameter: 16 AWG
Minimum wire diameter: 20 AWG
Series: DTM
Fixing hole diameter: 1 mm
Brand: TE Connectivity / DEUTSCH
Black colour
Rated current: 7.5A
Height: 14 mm
Housing material: polyamide (PA)
Degree of protection: IP68, IP6K9K
Insulation: isolated
Length: 27.56mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Number of lines: 1 line
Product Type: Automotive Connectors
Type: 3 way
Rated voltage: 250V
Width: 16.26 mm
Unit weight: 3.300 g
Read moreShow less
Product Details
RBCTDTM3VPFE004

Data sheet

Product type
Connector body
Serie
DTM
Amperage
7,5A
Material
PA (Polyamide, Nylon)
Color
Black
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
27.56x16.26x14.00 (L x W x H)
Flammability
94-HB
Voltage
250V
Mounting
On cable
Kind
Male
Number of poles
3
Number of rows
1
Pitch
4.19 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
