RBCTDTPF4VCE04

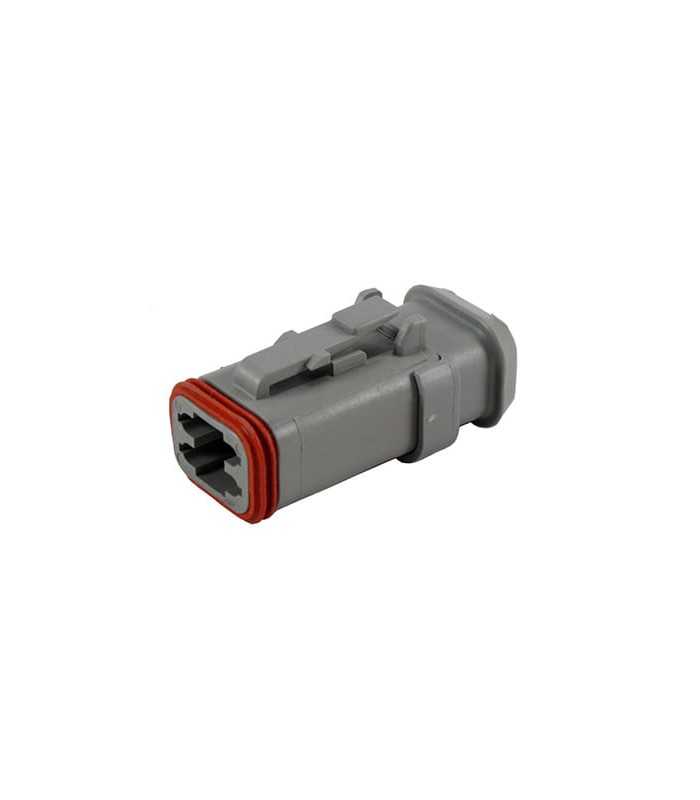

Connector DT Series male 4 Way CE04

Terminal DT size 16 female 16-20 awg
Errebi code: 57559
Producer code: DT06-4S-CE04
Producer: Deutsch
Read moreShow less
€3.62 (tax excl.)
€4.42 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €3.97 €4.42
25 €3.53 €22.08
50 €3.31 €55.21
100 €2.87 €154.57
250 €2.43 €496.85
500 €2.21 €1,104.10
1000 €1.99 €2,429.02
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTDTPF4VCE04
Brand:
Deutsch
Add to wishlist
Description
Product Type Features
Accessory Type: TPA (Terminal Position Assurance)
Connector System: Wire-to-Wire

Body Features
Material: PBT GF

Usage Conditions
Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F]

Industry Standards
UL Flammability Rating: UL 94-HB

Other
Serviceable: Yes
Read moreShow less
Product Details
RBCTDTPF4VCE04

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Grey
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
32.46x20.83x19.58 (L x W x H)
Flammability
94-HB
Voltage
250V
Mounting
On cable
Kind
Male
Number of poles
4
Number of rows
2
Pitch
4.45 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
