RBCTDTMPF12VE007NR

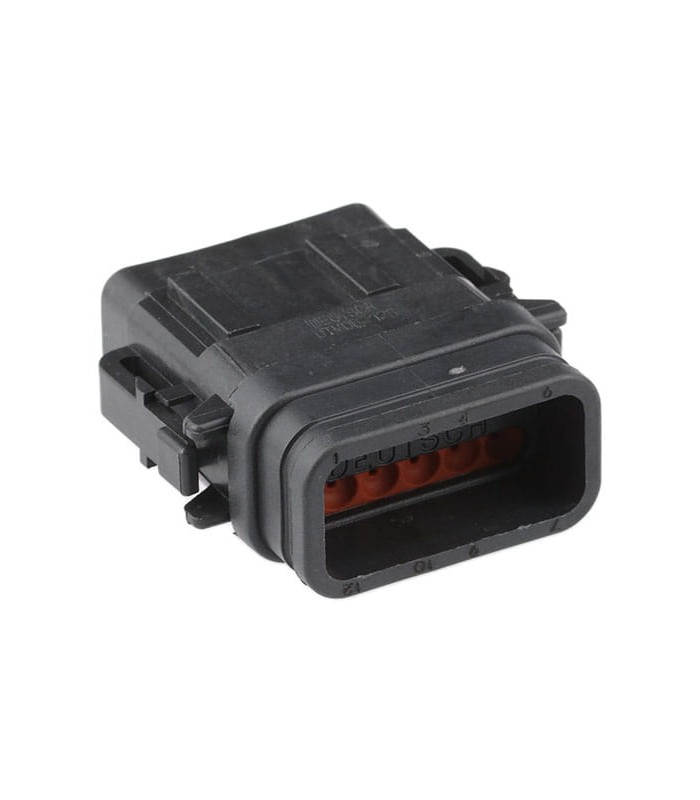

Connector DTM Series Male 12 Way E007 Black

Terminal DT size 16 female 16-20 awg
Errebi code: 65510
Producer code: DTM06-12SB-E007
Producer: Deutsch
Read moreShow less
€5.40 (tax excl.)
€6.59 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €6.26 €3.29
25 €5.93 €16.47
50 €4.94 €82.35
100 €3.95 €263.52
250 €3.62 €741.15
500 €3.29 €1,647.00
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTDTMPF12VE007NR
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 12 positions
Pitch: 4.19mm
Gender: Male
Black colour
Series: DTM
Rated current: 7.5A
Dimensions: 15.24mm x 40.01mm x 30.1mm
Housing material: Polyamide (PA)
Ingress Protection: IP68, IP6K9K
Material: plastic
Counterpart: DTM04-12SB
Maximum operating temperature: +125 C
Minimum operating temperature: - 55 C
Mounting Angle: Straight
Number of lines: 2 lines
Line spacing: 7.11 mm
Rated voltage: 250V
Wire gauge: 22AWG to 16AWG
Unit weight: 12,600 g
Read moreShow less
Product Details
RBCTDTMPF12VE007NR

Data sheet

Product type
Connector body
Serie
DTM
Amperage
7,5A
Material
Plastic
Color
Black
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
15,24x40,01x30,01 (L x W x H)
Voltage
250V
Mounting
On cable
Wire range
22 - 16 AWG
Kind
Male
Number of poles
12
Number of rows
2
Pitch
4.19 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
