RBCTDTPM12VVR

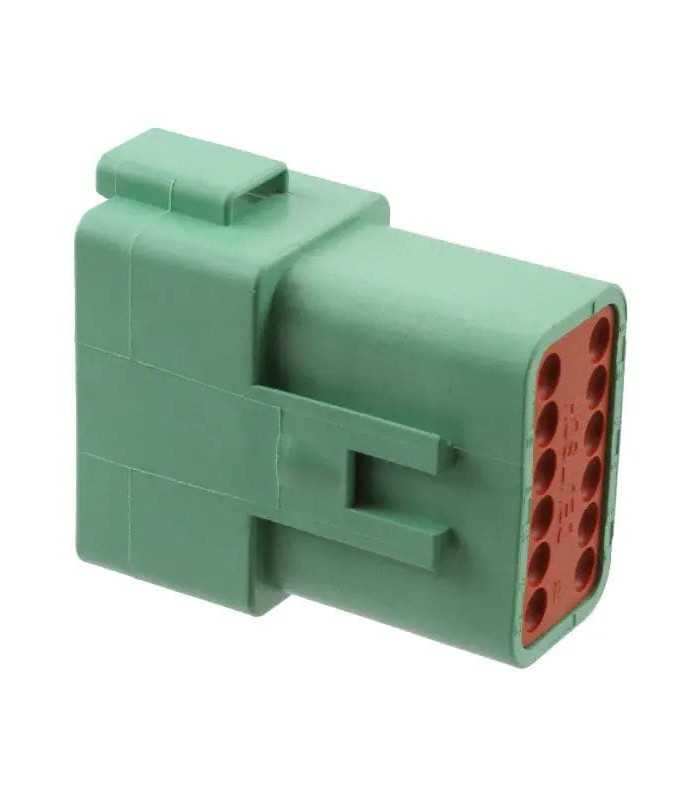

Connector DT Series Female 12 Way green

Errebi code: 63968
Producer code: DT04-12PC
Producer: Deutsch
Read moreShow less
€4.05 (tax excl.)
€4.94 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €4.66 €2.82
25 €4.38 €14.12
50 €3.46 €74.12
100 €3.11 €183.51
250 €2.75 €547.09
500 €2.47 €1,235.25
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTDTPM12VVR
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 12 positions
Pitch: 9.12mm
Gender: Female
Minimum wire diameter: 20 AWG
Maximum wire diameter: 14 AWG
Green colour
Rated current: 13A
Height: 22.25mm
Housing material: polyamide (PA)
Ingress Protection: IP68, IP6K9K
Insulation: Insulated
Length: 45.92mm
Locking mechanism: integrated in the housing
Material: plastic
Maximum working temperature: +125C
Minimum operating temperature: - 55C
Mounting angle: straight
Number of lines: 2 lines
Product Type: Automotive Connectors
Row spacing: 4.45mm
Type: 12-way
Rated Voltage: 250V
Width: 22.25mm
Unit Weight: 17g
Read moreShow less
Product Details
RBCTDTPM12VVR

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Green
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
45,92x40,56x22,25 (L x W x H)
Voltage
250V
Mounting
On cable
Kind
Female
Number of poles
12
Number of rows
2
Pitch
9.12 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
