RBCTDTPM12VNR

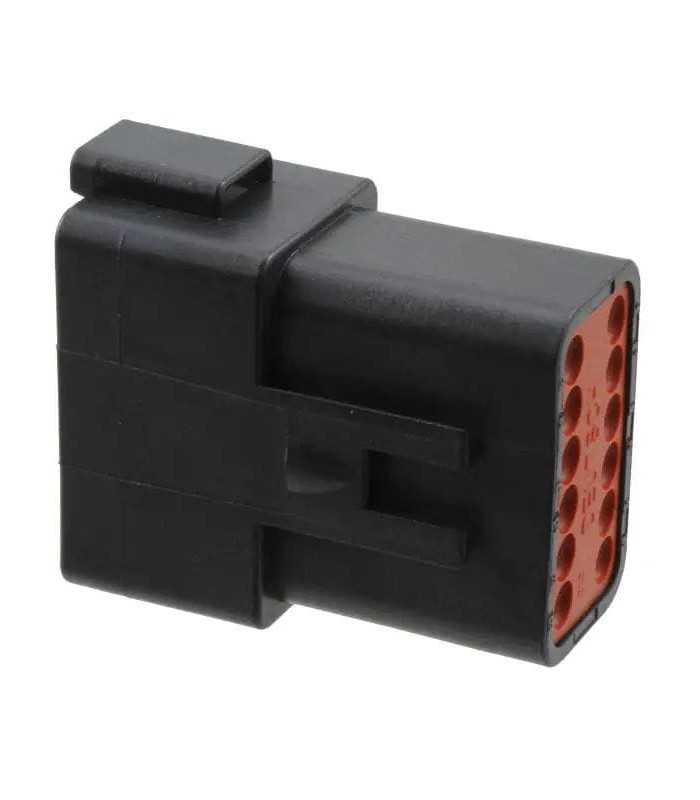

Connector DT Series Female 12 Way black

JPT Connector Female 25 way blue
Errebi code: 63966
Producer code: DT04-12PB
Producer: Deutsch
Read moreShow less
€5.11 (tax excl.)
€6.23 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €5.92 €3.12
25 €5.61 €15.59
50 €4.68 €77.93
100 €3.74 €249.37
250 €3.43 €701.35
500 €3.12 €1,558.55
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTDTPM12VNR
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 12 positions
Pitch: 9.12mm
Gender: Female
Minimum wire diameter: 20 AWG
Maximum wire diameter: 14 AWG
Black colour
Rated current: 13A
Height: 22.25mm
Housing material: polyamide (PA)
Ingress Protection: IP68, IP6K9K
Insulation: Insulated
Length: 45.92mm
Material: plastic
Maximum working temperature: +125C
Minimum operating temperature: - 55C
Mounting angle: straight
Number of lines: 2 lines
Row spacing: 4.45mm
Type: 12-way
Rated Voltage: 250V
Width: 22.25mm
Unit Weight: 17g
Read moreShow less
Product Details
RBCTDTPM12VNR

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Black
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
45,92x40,56x22,25 (L x W x H)
Voltage
250V
Mounting
On cable
Kind
Female
Number of poles
12
Number of rows
2
Pitch
9.12 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
