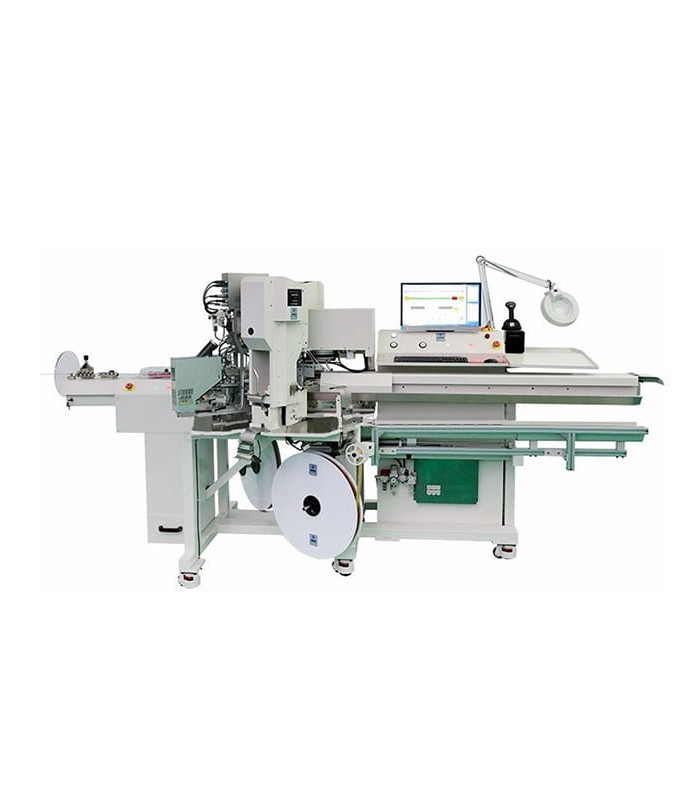

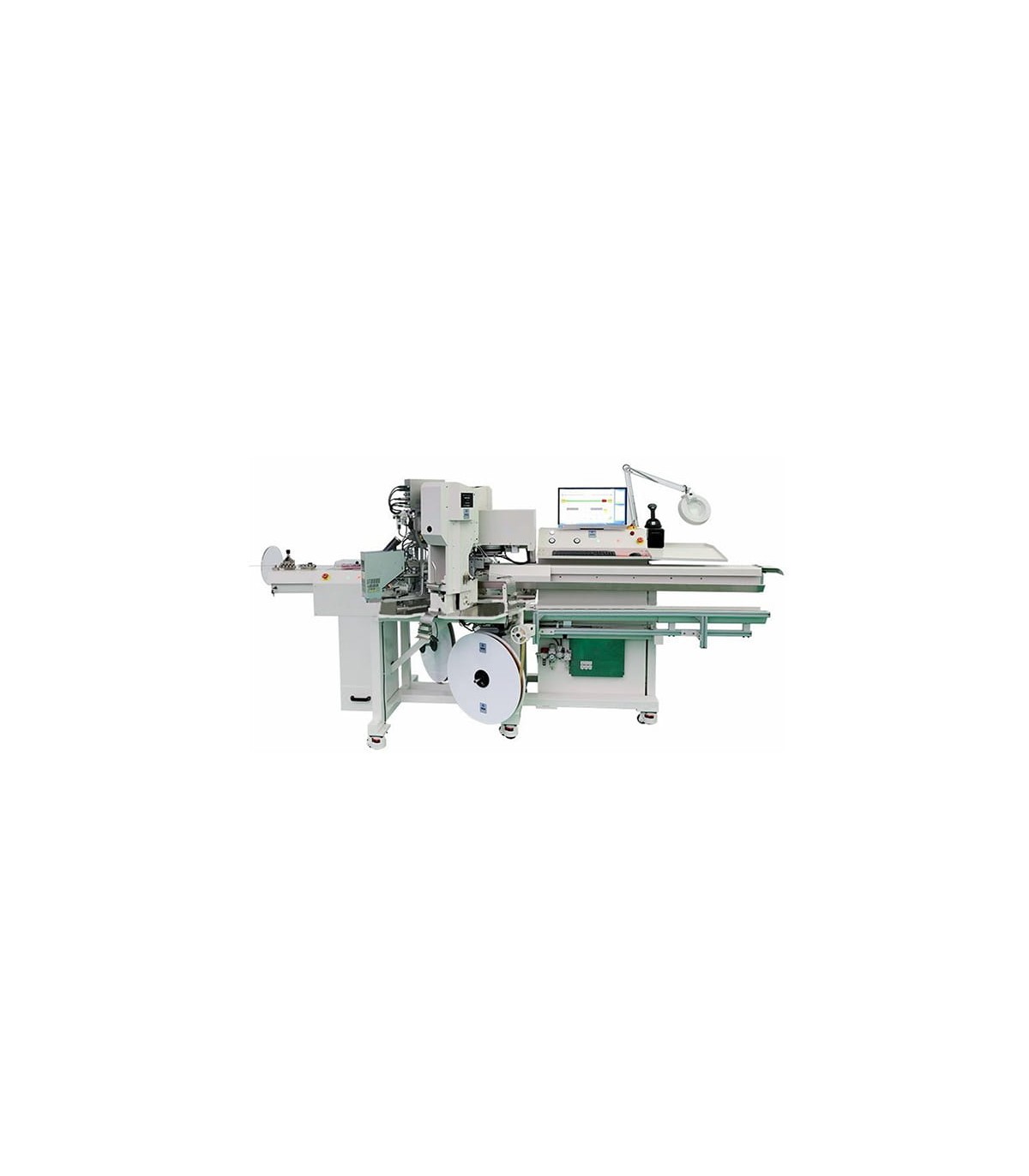

Automatic terminal crimping machine for cables 0.3 - 6 mmq

The RBEW8075 automatic machine for cutting, stripping and terminal crimping on cables is a professional system designed for automatic processing of cables from 0.3 to 6 mm², equal to 9 - 23 AWG.
It is suitable for automotive applications, industrial wiring harness production, wiring for electrical panels and production lines where high productivity, processing precision and consistent terminal crimping quality are required.
The machine automatically performs cable cutting, stripping and terminal crimping, reducing manual operations and improving repeatability of the production process.
The cutting length is programmable from 60 to 99999 mm, while the stripping length can be set from 0.1 to 18 mm, making the system suitable for multiple wiring configurations.
The 3.0 T crimping force allows terminals to be processed on cables of different sections, ensuring stable and controlled crimping during the production cycle.
The feeding speed up to 8.0 m/s and productivity from 4500 to 5000 pieces/hour make the machine suitable for production departments with high volumes and continuous operation requirements.
The system is designed to offer good cutting and stripping precision, with control of working parameters and automated cycle management, reducing errors, waste and processing times.
The robust structure, 1100 kg weight and operating dimensions make the machine suitable for fixed installation in professional and industrial production lines.

OPERATING PRINCIPLE

- The cable is inserted into the machine feeding system
- The operator sets cutting length, stripping length and crimping parameters
- The system feeds the cable at the programmed speed
- The machine cuts the cable to the set length
- The stripping unit removes the insulation according to the programmed value
- The terminal is positioned and crimped onto the cable with controlled crimping force
- The processed cable is collected at the output according to the required length
- The cycle is repeated automatically for series production

MAIN ADVANTAGES

- Automatic machine for cable cutting, stripping and terminal crimping
- Suitable for cables from 0.3 to 6 mm²
- Working range 9 - 23 AWG
- Programmable cutting length from 60 to 99999 mm
- Stripping length from 0.1 to 18 mm
- Crimping force 3.0 T
- Crimping stroke 30/40 mm
- Feeding speed up to 8.0 m/s
- Productivity from 4500 to 5000 pieces/hour
- Controlled stripping and cutting precision
- Suitable for automotive production
- Reduces manual processing
- Improves repeatability of the production process
- Ideal for series production
- Robust structure for industrial use
- Suitable for wiring harness production lines

MAIN APPLICATIONS

- Automatic cutting of electrical cables
- Automatic cable stripping
- Automatic terminal crimping
- Automotive wiring harness production
- Industrial wiring harness production
- Wiring for electrical panels
- Wiring for electrical systems and installations
- Cable preparation for assembly
- High-capacity production lines
- Series production of terminated cables
- Professional wiring departments
- Applications where precision, speed and repeatability are required
