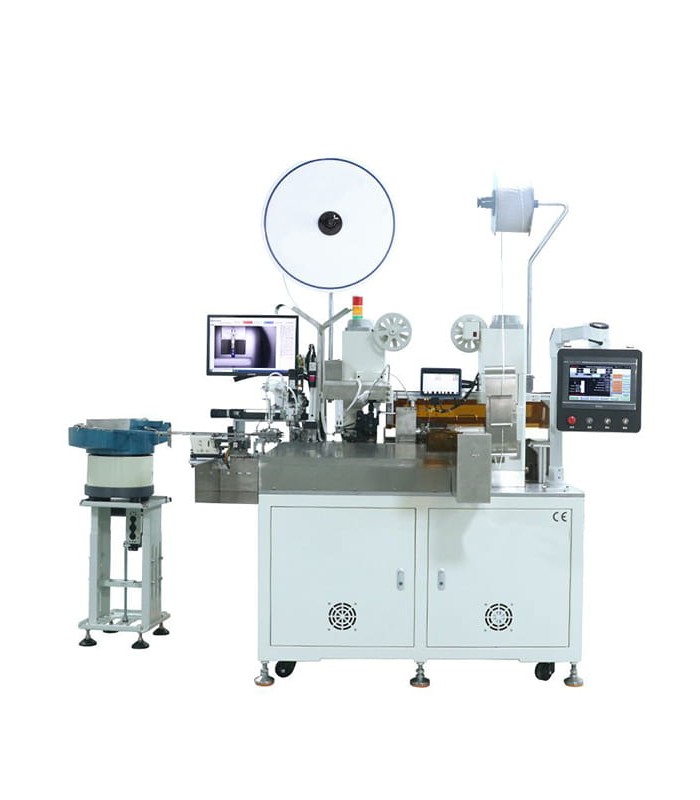

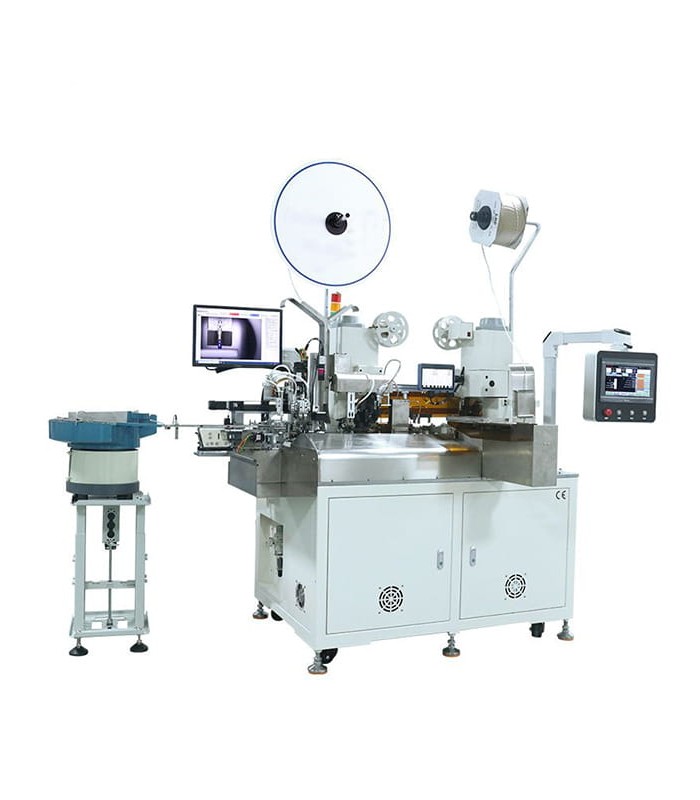

Automatic crimping machine, inserting the connector on one side
Automatic crimping machine, inserting the connector on one side
Automatic crimping machine, inserting the connector on one side
Automatic crimping machine, inserting the connector on one side

Automatic crimping machine, inserting the connector on one side

Automatic crimping machine, connector insertion on both sides
Errebi code: 66090
Producer code: RBEW8030
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
SOLD WITH PROTECTIVE COVER
Read moreShow less
€46,796.00 (tax excl.)
€57,091.12 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW8030
Brand:
ErreBi Group
Add to wishlist
Description
Characteristics

The machine can perform both side crimping and one-side insertion. Up to 6 hanks/reels of cable can be processed
thanks to the presence of 6 unwinding rollers. The order and length of each cable can be specified by the program. The cable can
be crimped, inserted and then automatically fed by the vibrating plate. The crimping force can be coded according to production requests

Technical data
Model: RBEW8030
Cable section: 28 - 20 AWG
Stripping length: 1 - 8 mm
Cutting accuracy: +/- 0.1mm
Cutting length: 50 - 1000 mm
Capacity: 2000 pcs/hour (L=100mm)
Crimping force: 2.0T (20KN)
Stroke: 30 mm
Air pressure: 0.5 - 0.7 Mpa
Thread Color: 2 - 6 Color Threads
Power: 220V/110V/50-60HZ
Dimensions: 1560*1100*1600 mm
Weight: 700Kg
Read moreShow less
Product Details
RBEW8030

Data sheet

Product type
Terminal crimping machine
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
1560x1100x1600 (L x W x H)
Cable section AWG
28 AWG - 20 AWG
Minimum order quantity
1
Unit Type
piece
Crimping force
20 KN (2T)
Stripping length Side1
1 - 8 mm
Length of Cut
50 - 1000 mm
Blade material
tungsten steel
Driving mode
6 reels
Viewing mode
touch screen
Air pressure
0.5 - 0.7 MPa
Productivity
2000 pcs/h (cut 0.1m)
Press stroke
30mm
Attachments
066090_001_DATASHEET.pdf
Download (1023.82KB)
066090_002_CERTIFICATION.pdf
Download (3.13MB)
