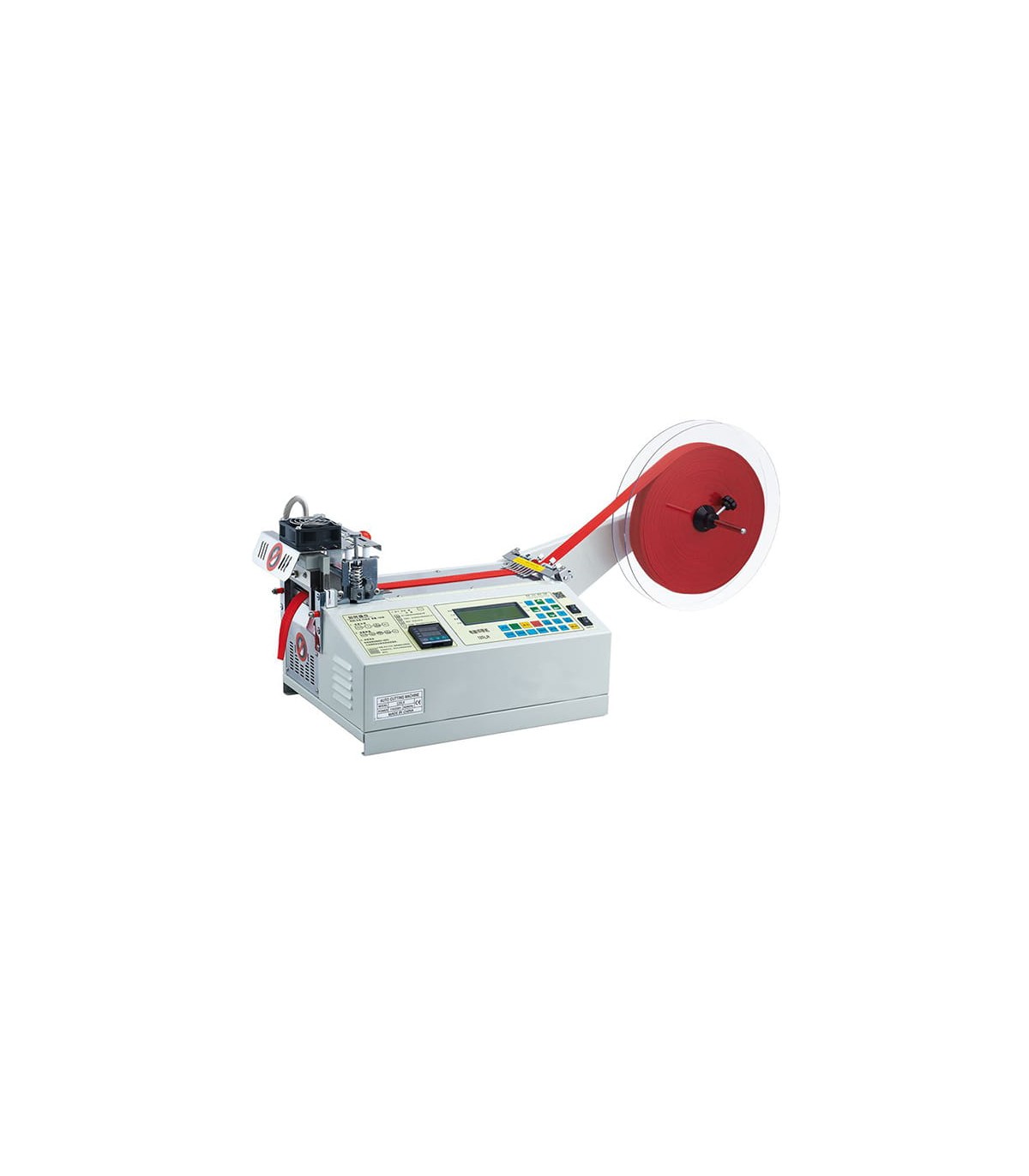

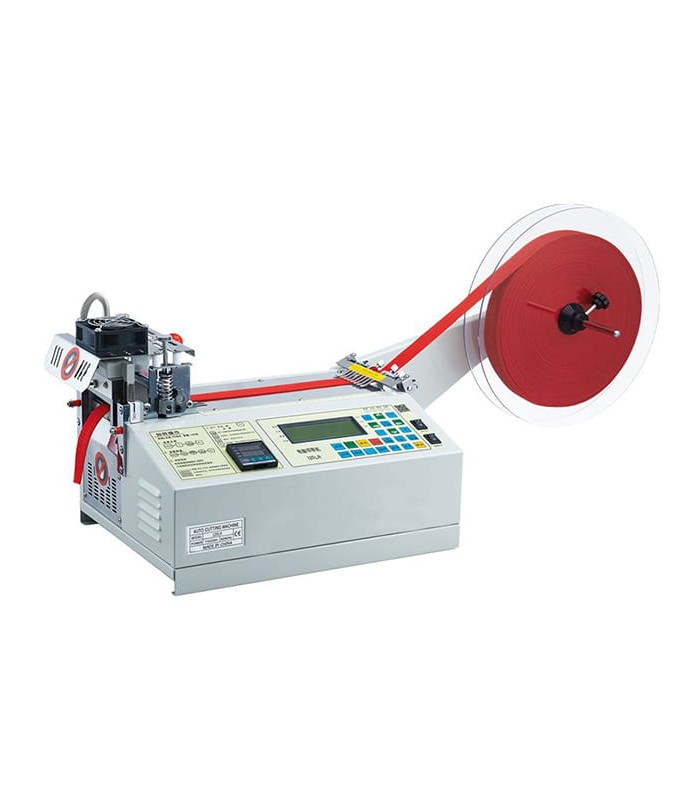

Automatic cut-to-length hot & cold cutting machine for labels, tapes and nylon materials

The RBEW1215R is an automatic machine designed for cut-to-length processing of flat materials such as tapes, labels, and nylon materials when speed, precision and above all repeatability are required for continuous production.
It is a very effective solution to replace manual cutting: it standardizes the length of the pieces, reduces waste and makes the process more stable, especially when many identical pieces must be prepared.

The RBEW1215R is ideal for anyone who needs to cut materials up to 95 mm wide to length, maintaining a constant workflow.

Key strengths

1) The core of the machine is the feed and cutting control, designed to deliver high accuracy and consistent results:

2) You set length and quantity, and the machine performs the entire cycle automatically, repeating the cut uniformly.

3) The system is driven by a stepper motor, designed to ensure good feed accuracy and therefore cutting precision.

4) The hot cutting mode (high-temperature blade) helps achieve a cleaner edge on many synthetic materials; the maximum blade temperature reaches 300°C.

5) The autopause function is included: if the material ends, the machine stops automatically, avoiding idle cycles and waste.

6) It includes a memory function: before shutdown it records length, quantity and speed, useful when resuming repetitive productions without resetting everything each time.

Technical specifications

Model: RBEW1215R

Cutting length: 20 - 100,000 mm

Material width: 1 - 95 mm

Productivity: 90 pcs/min (with L= set to 50 mm)

Max blade temperature: 300°C

Voltage: 220/110 V – 50/60 Hz

Power: 660 W

Dimensions: 560 × 420 × 405 mm

Weight: 29 kg
