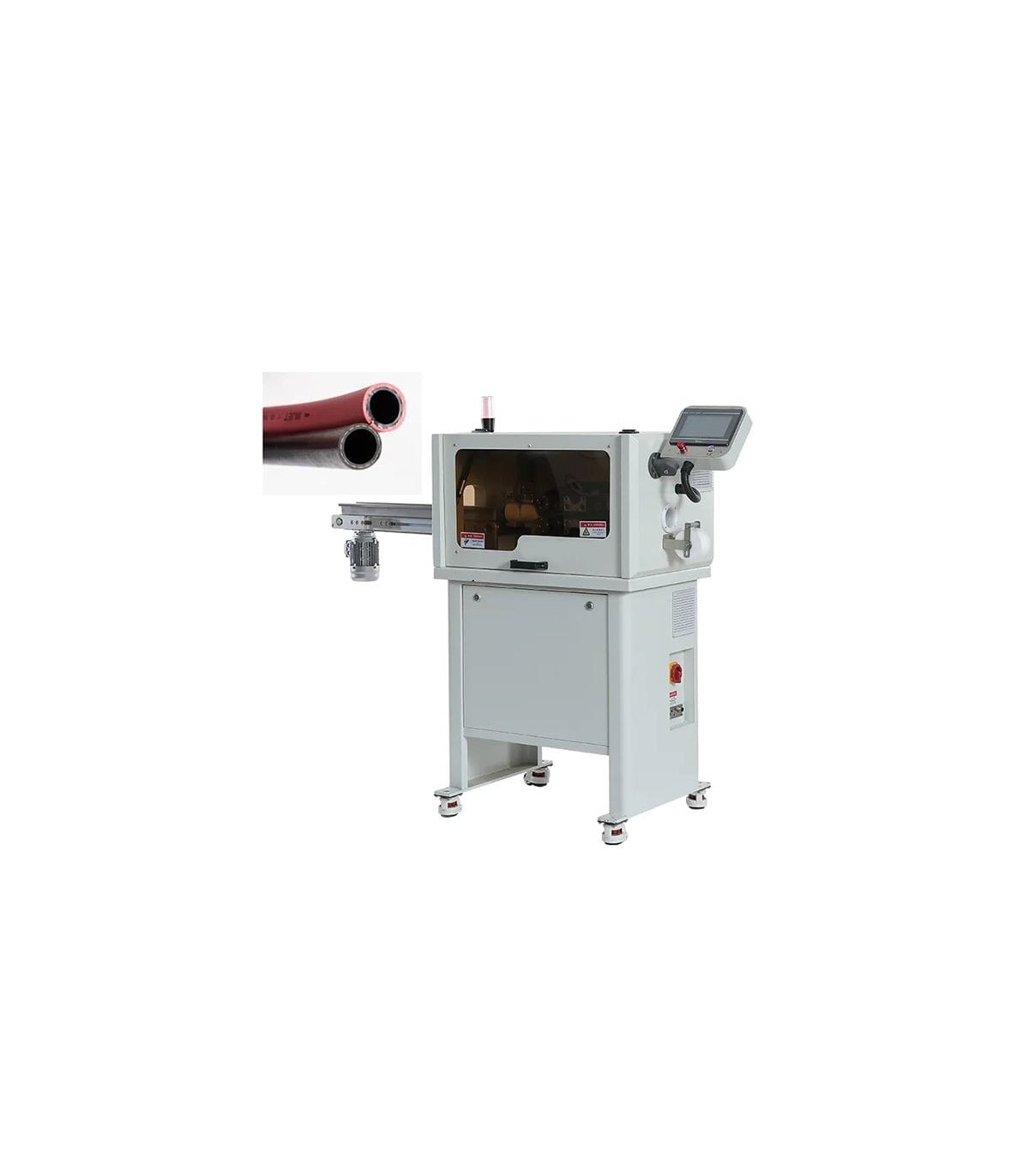

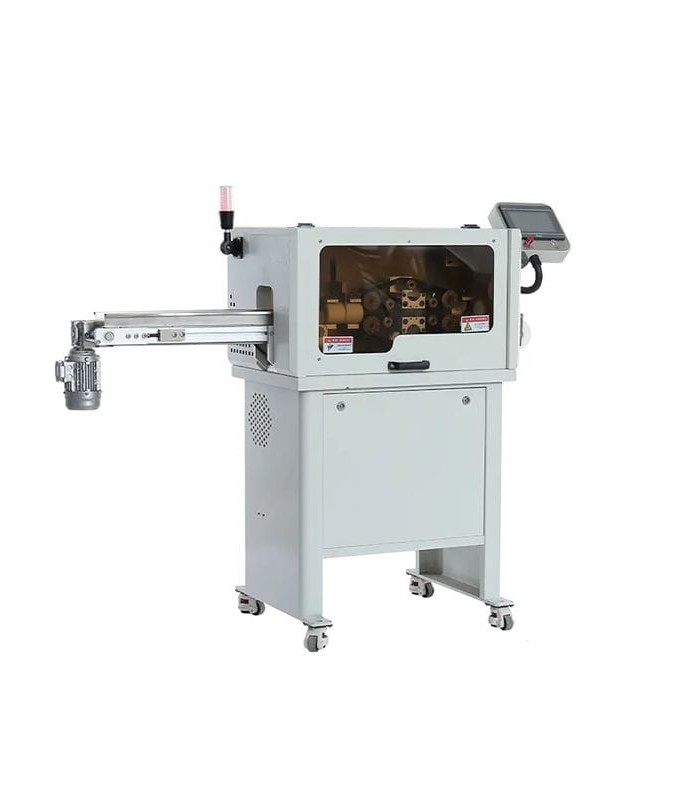

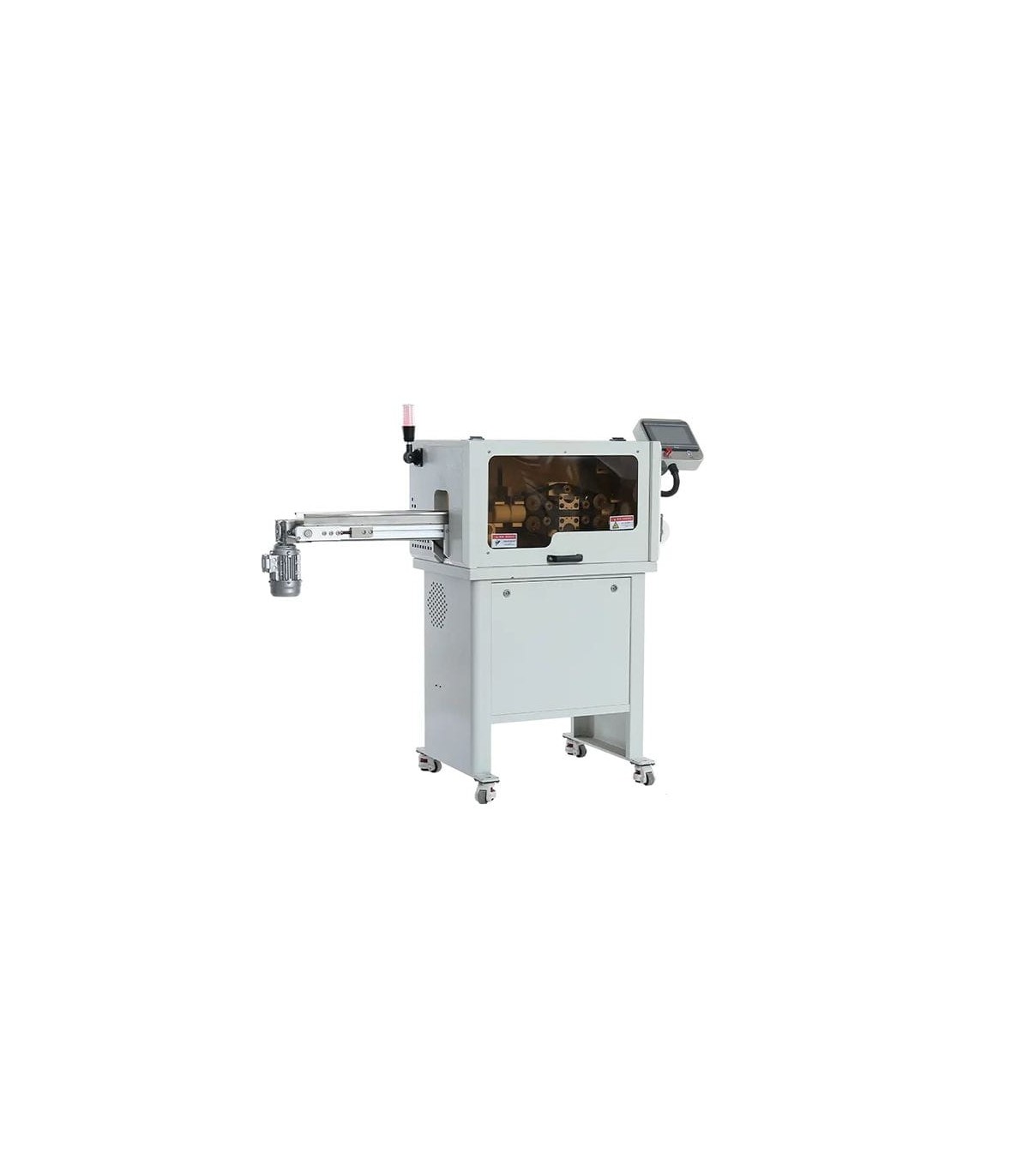

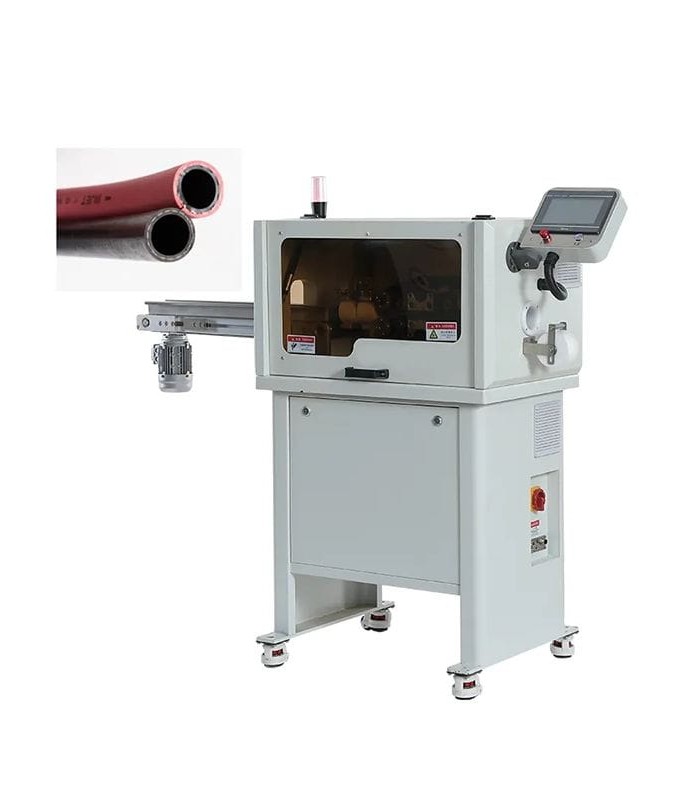

Automatic cutting machine for pipes and sheaths (1 - 55 mm)

The RBEW12E is an automatic machine designed for cut-to-length processing of flexible materials, when precision, repeatability and a stable workflow are required.
It is particularly suitable for those working with tubes/sleeves and similar materials, where manual cutting or non-dedicated tools can easily lead to uneven lengths, scrap and higher processing times.

The key benefit of the RBEW12E is its ability to handle very wide cutting-length ranges with a fine step and a controlled feeding system: you set the parameters and the machine repeats the cycle consistently, reducing variation from one piece to the next.

Operating process

1) Parameter setting: set the cutting length and working logic via PLC control.

2) Material feeding: feeding is performed by belts, a solution that helps ensure continuity and good grip on flexible materials.

3) Feed drive system: feeding is managed by a servo motor, useful to keep measurements repeatable especially with variable lengths.

4) Cut-to-length: the machine cuts automatically according to the set length.

Technical specifications

Model: RBEW12E

Applicable materials: various flexible materials

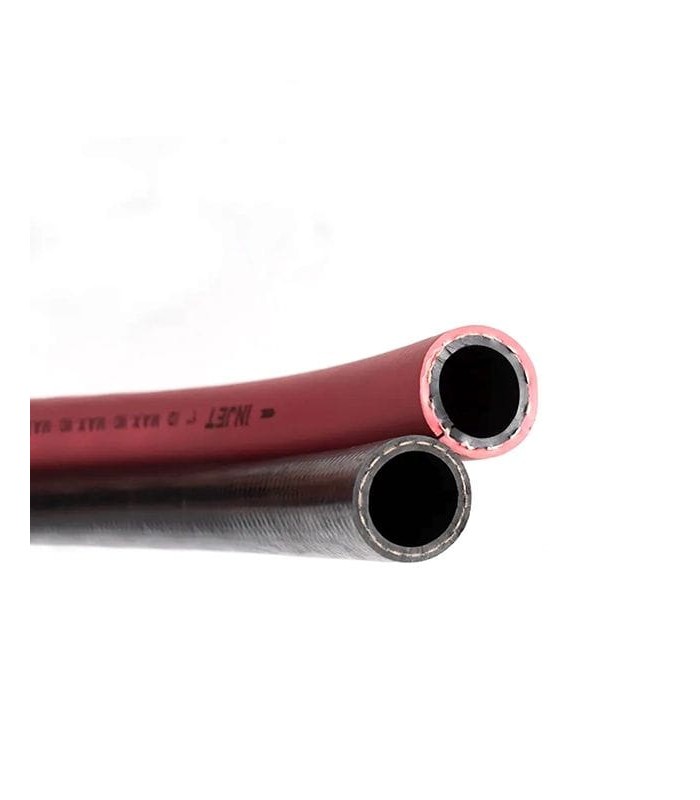

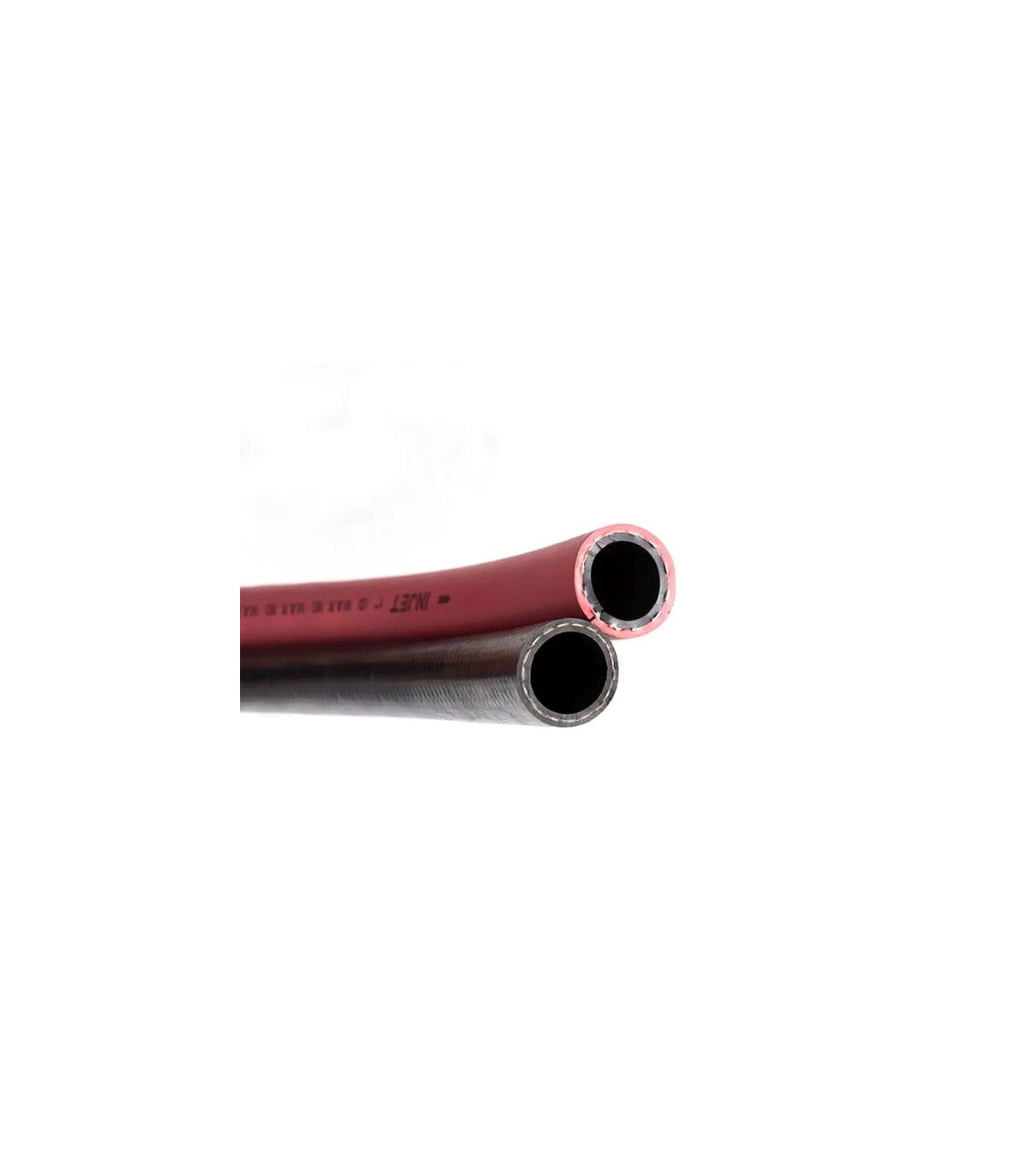

Material outer diameter: 1 - 55 mm

Cutting length: 1 - 99,999.9 mm

Length increment: 0.1 mm

Cutting length tolerance: ± 0.5 mm

Control mode: Touch screen, PLC

Feeding: by belts

Feed motor: servo motor

Compressed air: 0.5 - 0.7 MPa

Voltage: 110 / 220 V (50 - 60 Hz)

Power: 2000 W

Dimensions: 1730*780*1430 mm

Weight: 251 kg
