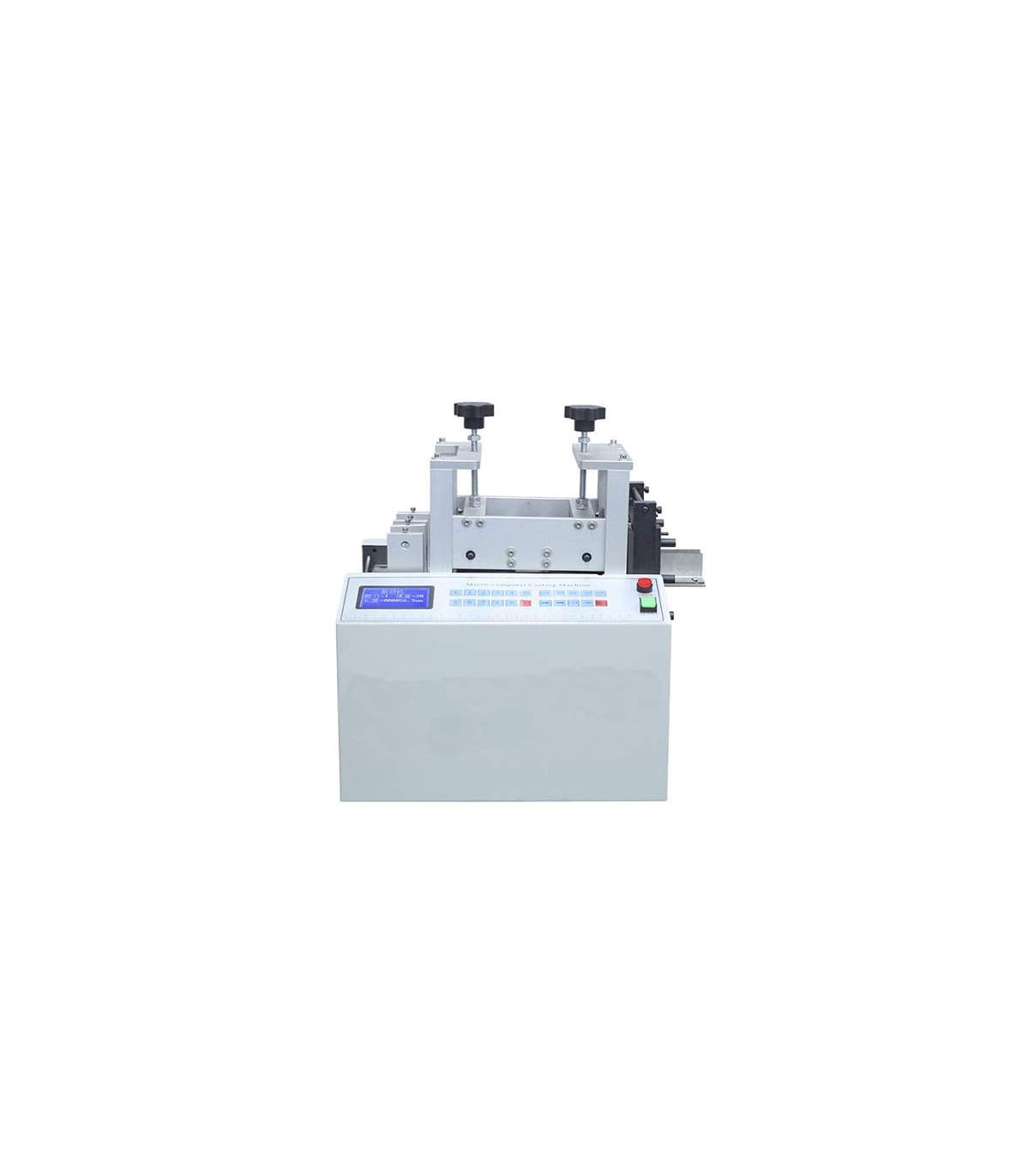

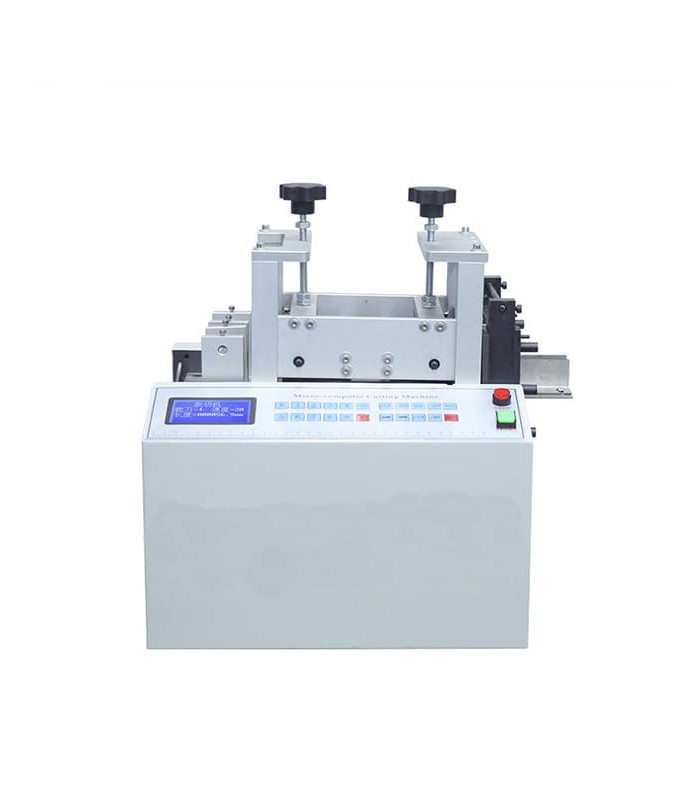

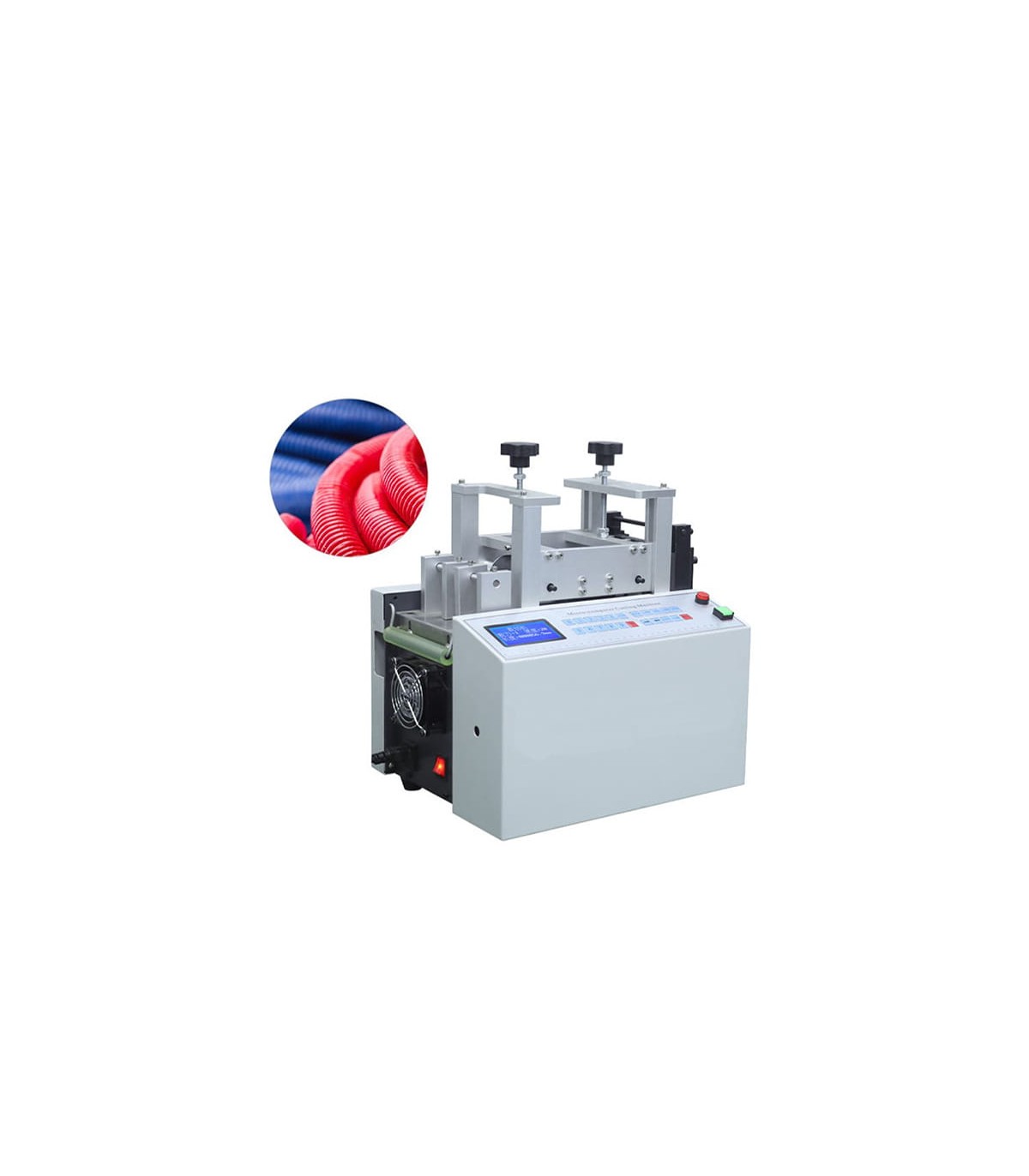

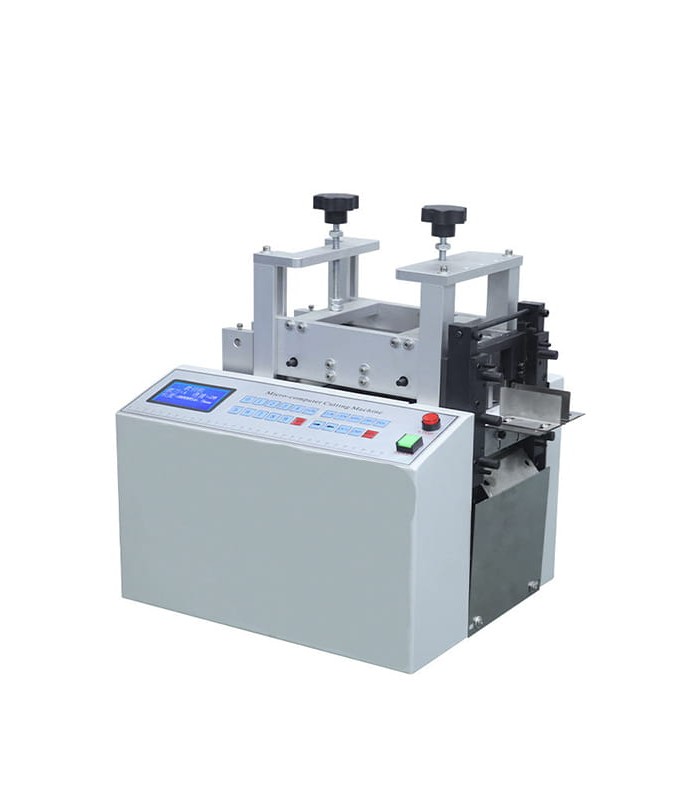

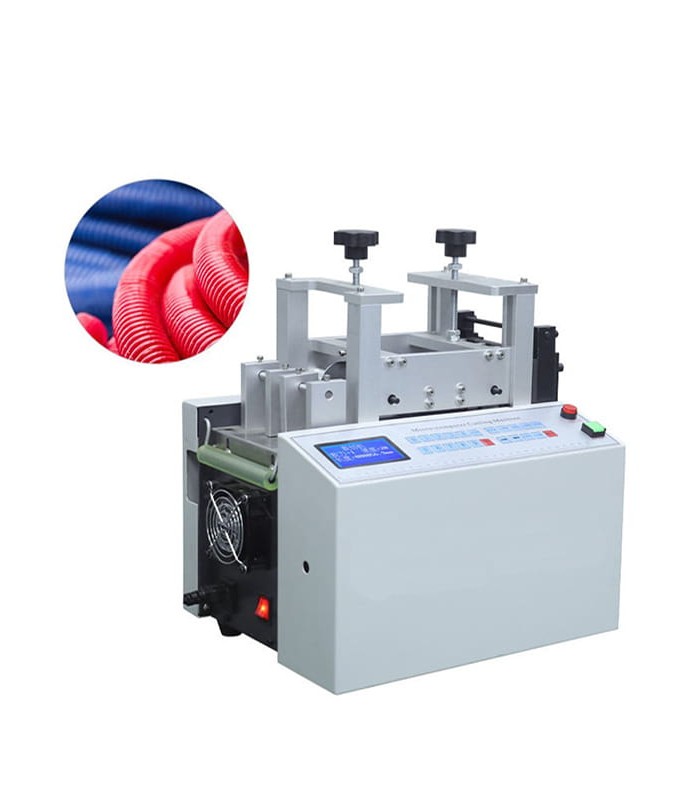

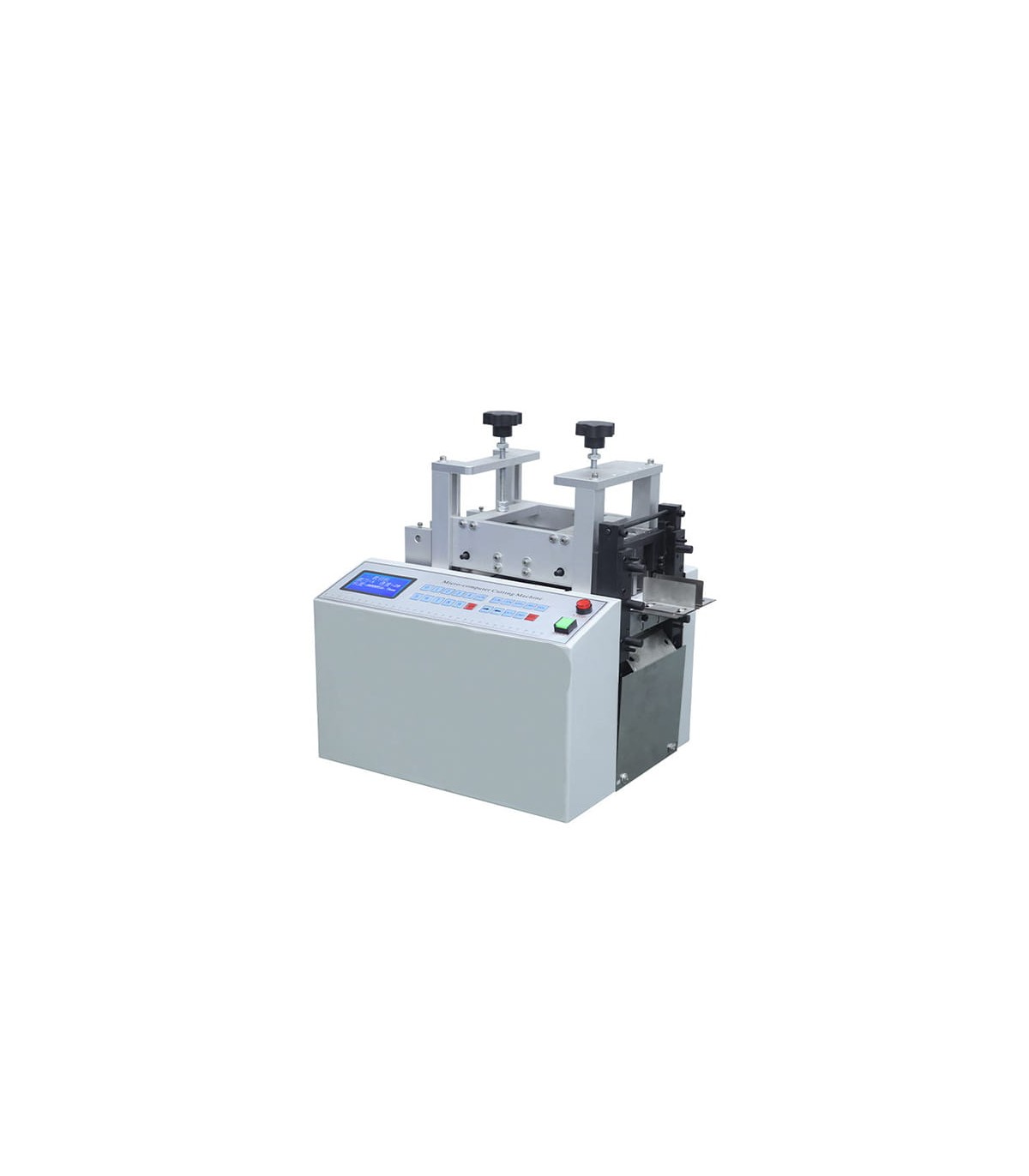

Automatic cutting machine with servomotor (0 - 45 mm)

The RBEW1295 is an automatic machine designed for cut-to-length processing of a wide range of industrial materials. It is the typical solution when manual cutting no longer guarantees repeatability, productivity and, above all, consistent length from one piece to the next.

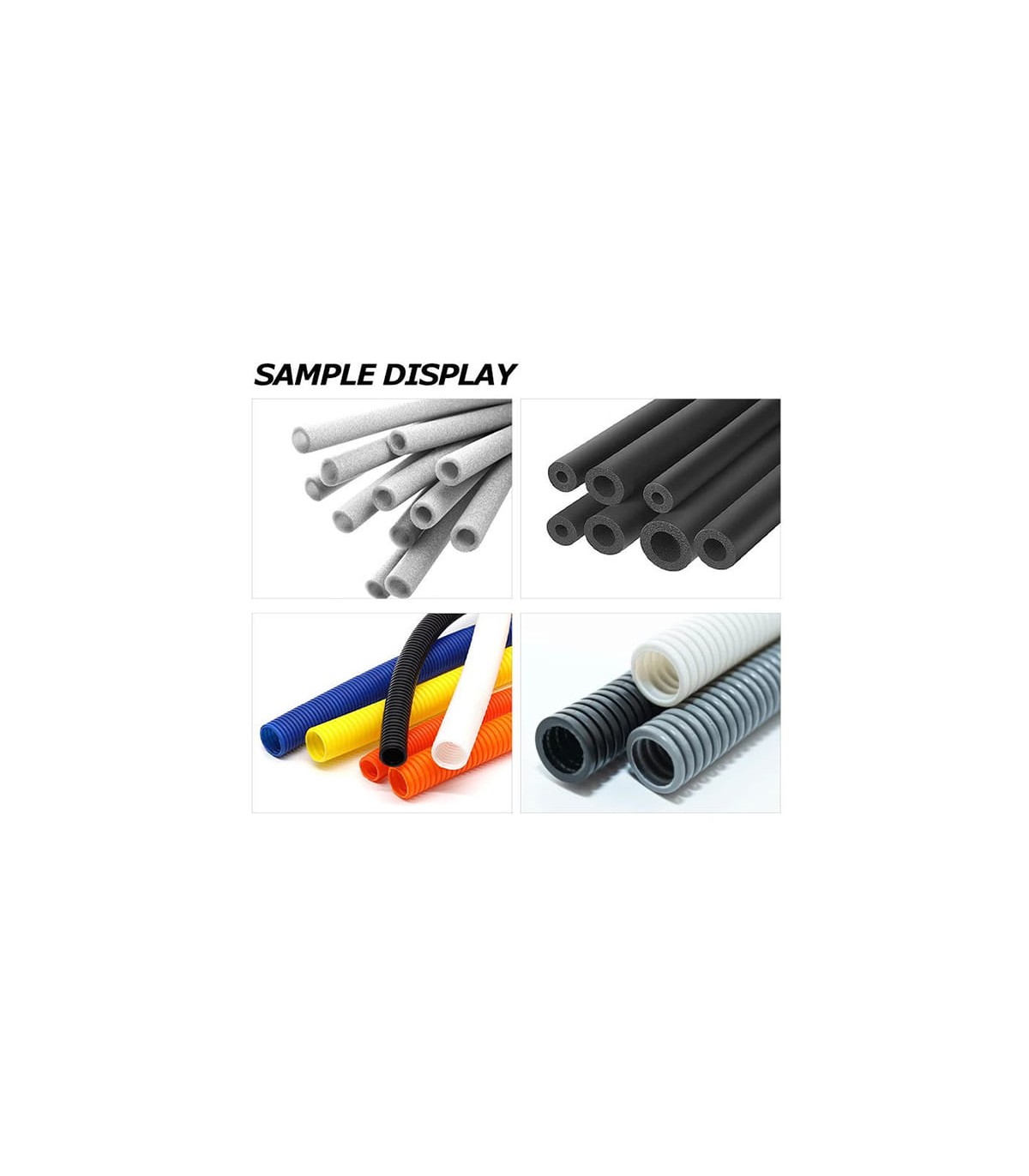

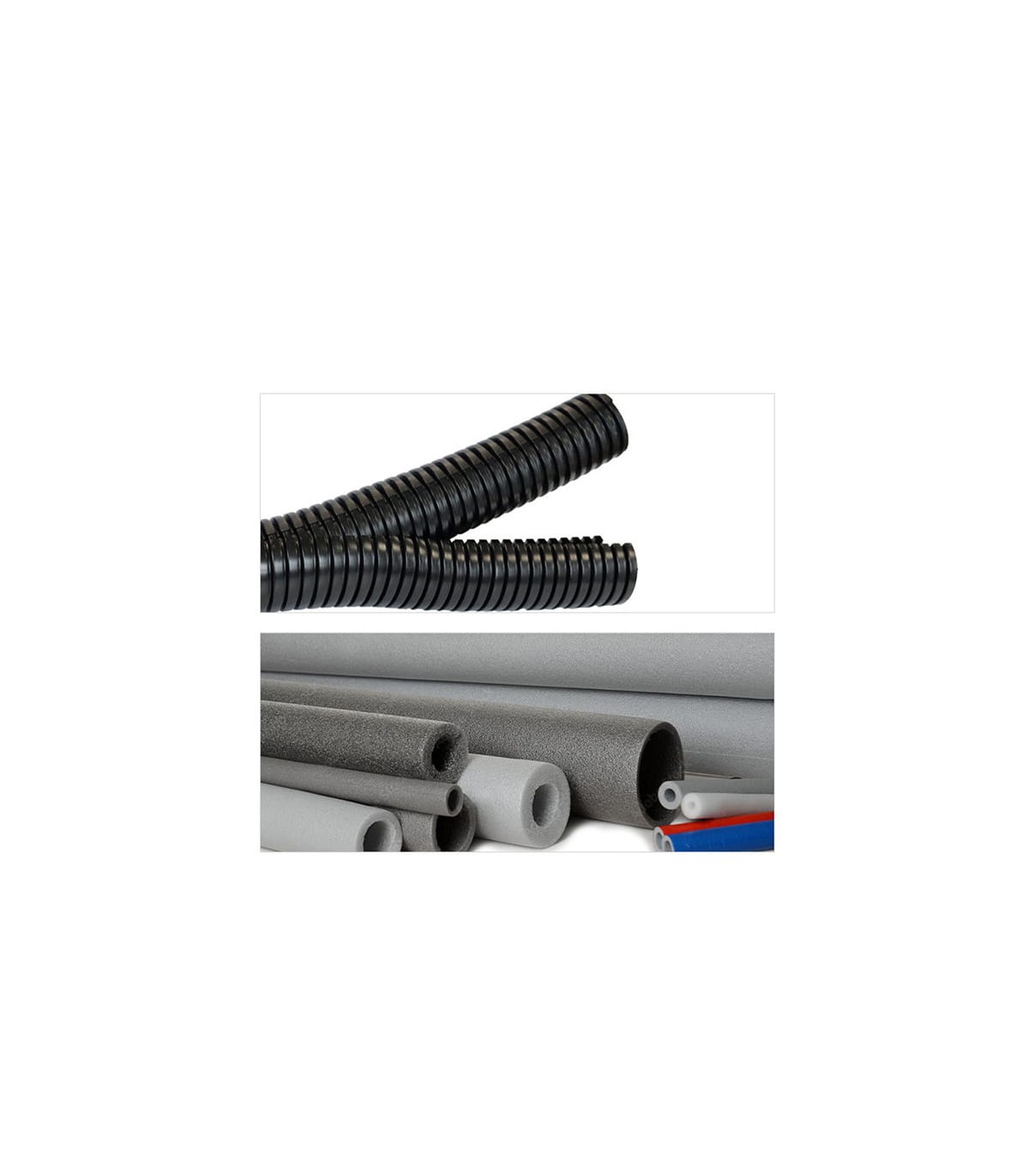

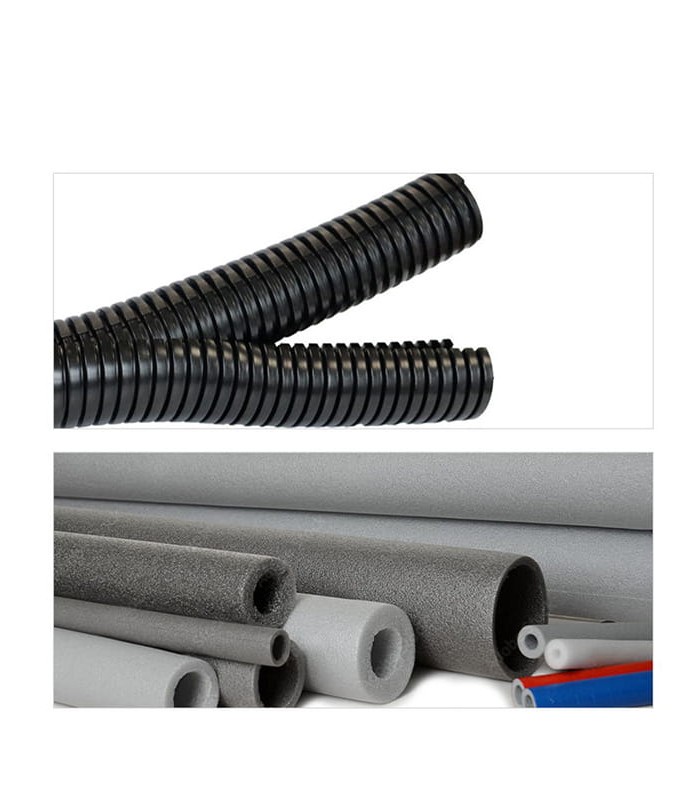

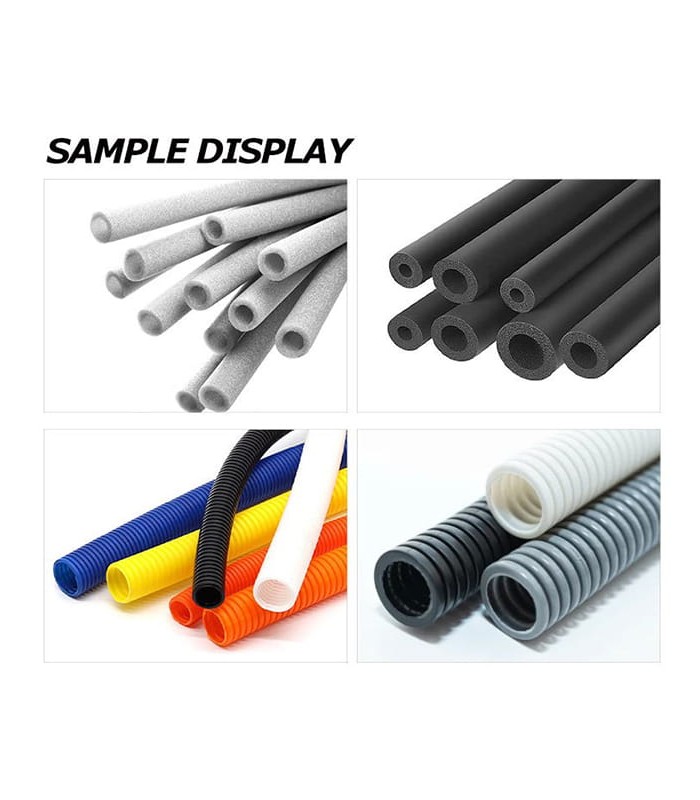

This machine is designed to work flexibly with tubes and sleeves, but also with strips, tapes, thin sheets, as well as cables and even ropes: in practice, it is a department machine used when different materials run through production, but the need is always the same: fast cutting, controlled length, minimal waste.

Ideal for

1) Repetitive production: when you need to prepare thousands of identical pieces.

2) Clean and controlled cutting: when the final quality depends on measurement accuracy and feed stability.

3) Waste reduction: by setting the correct length and correction (calibration), you limit differences from batch to batch.

4) Departments that need order and speed: with roll support and guiding systems for stable feeding.

How it works

1) Load the material: the machine is equipped with a roll stopper bar and roll fixing to keep feeding stable during the cycle.

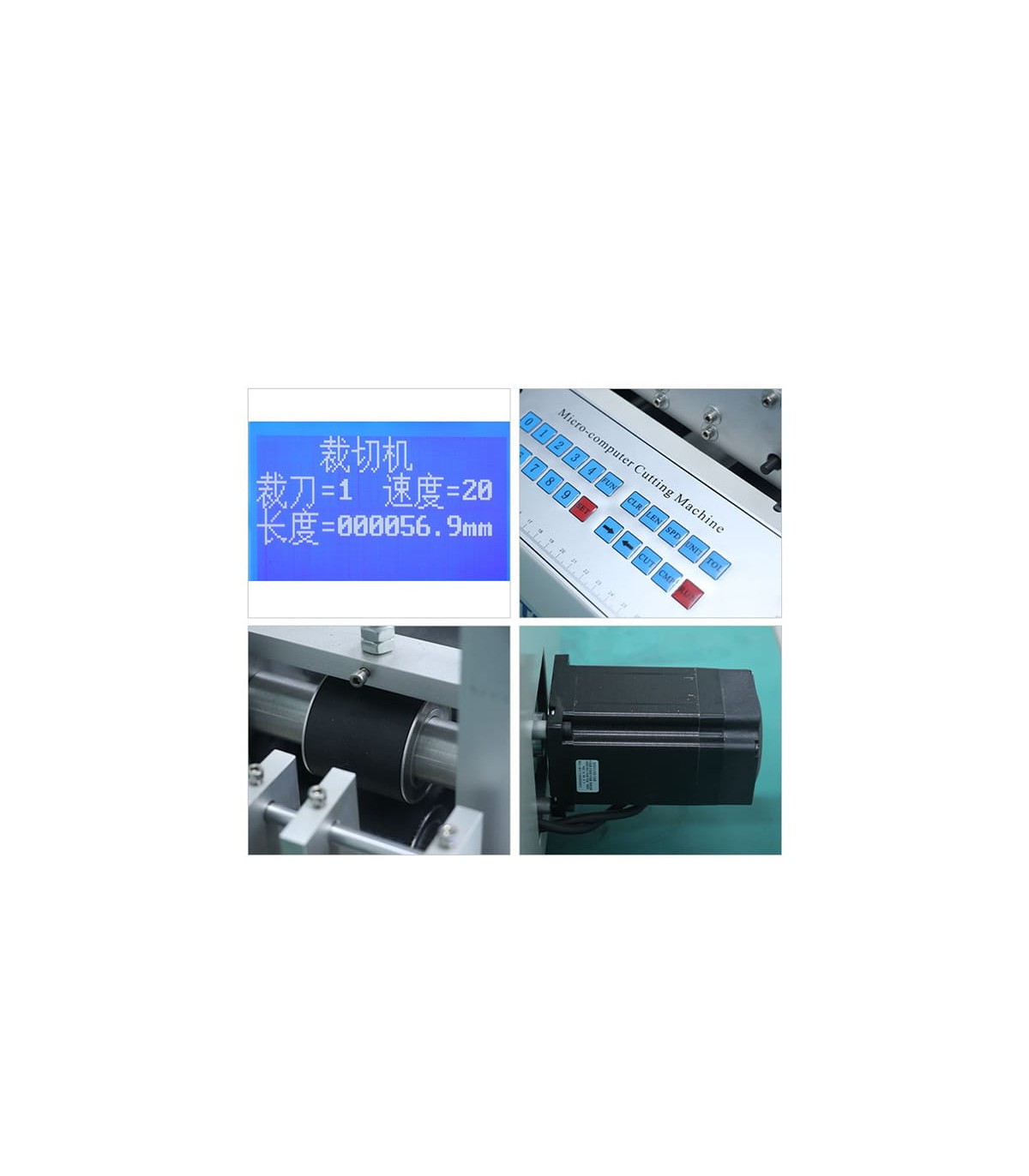

2) Set the job on the LCD display: practical production settings such as total quantity, length calibration, reset, etc. This is useful because it makes the machine “production-ready”: not only cutting, but also organized batch management.

3) Automatic feeding + cutting: once the length is set, the system feeds and cuts by repeating the cycle with constant declared tolerance.

4) Length calibration: a dedicated program is available to correct the cutting length (useful when you change material or want to refine the real length based on material slip/flow).

5) Factory reset: button to reset parameters and restart from a clean setup.

Technical specifications

Model: RBEW1295

Material width: 0 - 45 mm

Cutting length: 1 - 9999.9 mm

Length increment: 0.1 mm

Cutting tolerance: 0.1 mm

Productivity: 7200 - 9000 pcs/hour

Motor: AC motor

Power supply: 110 / 220 V (50-60 Hz)

Interface: High-definition LCD

Weight: 42 kg

Dimensions: 580*530*410 mm
