RBCTMFPM3X2VSAM

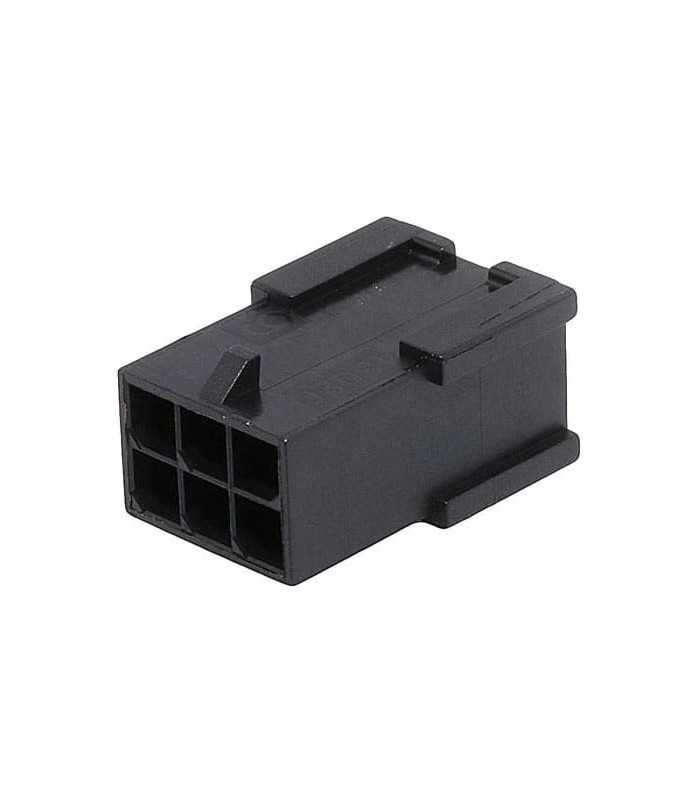

Micro Fit Connector female 3X2 way without fins molex

Errebi code: 48684
Producer code: 43020-0601
Producer: Molex
Read moreShow less
€0.88 (tax excl.)
€1.07 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €1.07 €0.00
10 €0.97 €1.06
25 €0.86 €5.35
50 €0.81 €13.42
100 €0.70 €37.68
250 €0.59 €120.65
500 €0.54 €268.40
1000 €0.48 €591.02
Available in stock 6011 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMFPM3X2VSAM
Brand:
ErreBi Group
Add to wishlist
Description
Circuits (maximum): 6
Color - Resin: Black
Flammability: 94V-0
Glow Wire Compatible: No
Key on the coupling part: None
Lock on the mating part: Yes
Material: nylon resin
Net weight: 0.773 / g
Number of lines: 2
Panel Mount: No
Pitch - Mating interface: 3.00mm
Pitch - 3.00: mm termination interface
Polarized to the mating part: Yes
Stackable: No
Temperature range - Operating from: -40 ° to + 105 ° C
Read moreShow less
Product Details
RBCTMFPM3X2VSAM

Data sheet

Product type
Connector body
Serie
Micro-Fit 3.0 - 43020
Amperage
5A
Material
Polyester
Color
Black
Operating temperature
-40°C to +105°C
Dimensions
14,00x9,85x8,28 (L x W x H)
Flammability
94V-0
Mounting
For cable
Kind
Female
Number of poles
6
Number of rows
2
Pitch
3.00 mm
Orientation
180°
Minimum order quantity
5
Unit Type
pieces
