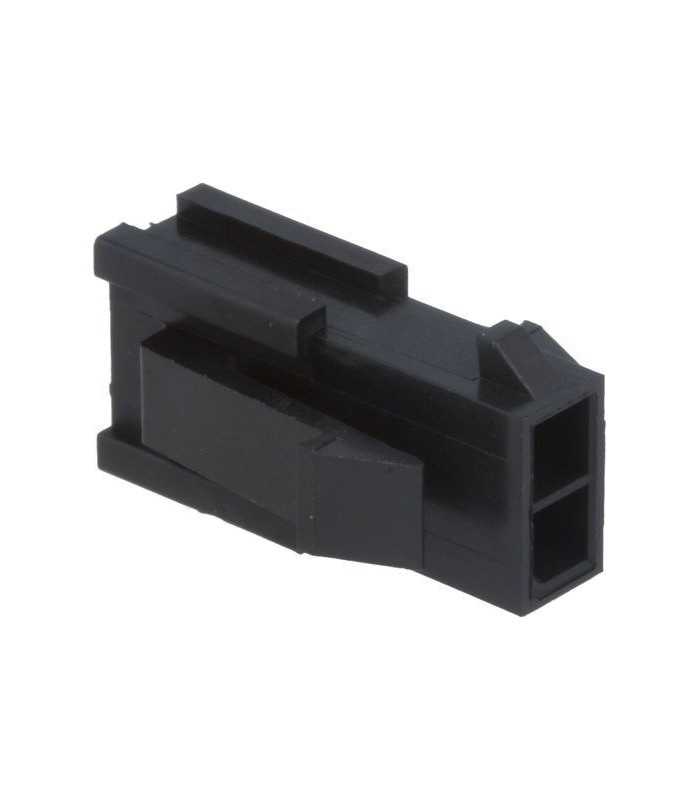

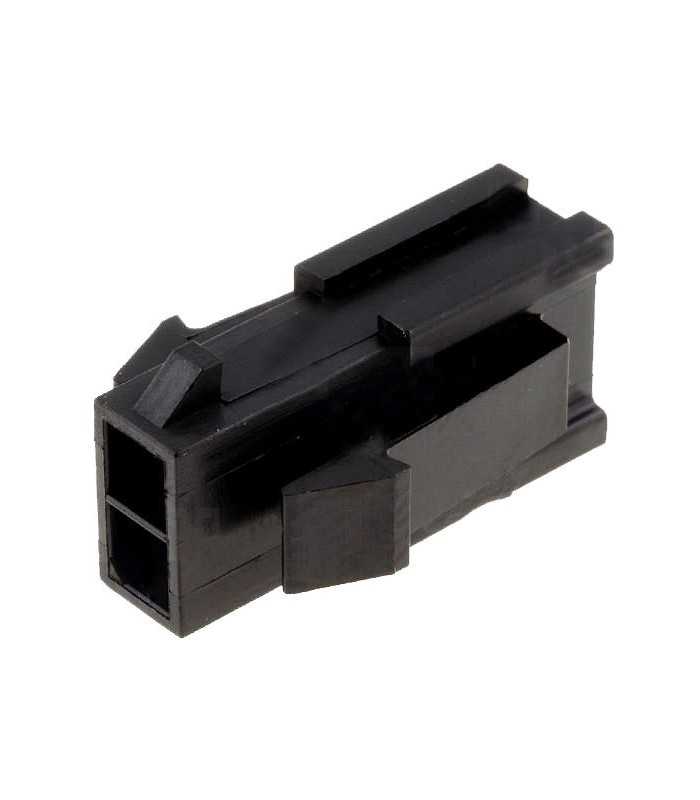

Micro Fit Connector female 2 way

Errebi code: 14975
Producer code: 43020-0200
Producer: Molex
Read moreShow less
€0.16 (tax excl.)
€0.20

Discounts for quantities

Quantity Unit price You Save
20 €0.20 €0.00
40 €0.16 €1.56
60 €0.15 €2.93
100 €0.13 €6.85
260 €0.11 €22.81
500 €0.10 €48.80
1000 €0.09 €107.46
Available in stock 4116 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTMFPM1X2VAF
Brand:
Add to wishlist
Description
Series: Micro-Fit 3.0
No. of Positions: 2
Pitch Spacing: 3mm
For Use With: Micro-Fit 3.0 Crimp Terminals
Connector Body Material: Nylon (Polyamide)
Contact Resistance: 10mohm
Current rating: 5A
Dielectric Strength: 1500V/m
Flammability rating: UL94V-0
Gender: Plug
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Voltage Rating V AC: 250V
Read moreShow less
Product Details
RBCTMFPM1X2VAF

Data sheet

Product type
Connector body
Serie
Micro-Fit 3.0 - 43025
Amperage
5A
Material
PA (Polyamide, Nylon)
Color
Black
Operating temperature
-40°C to +105°C
Flammability
94V-0
Voltage
250V
Mounting
For cable
Kind
Female
Number of poles
2
Number of rows
2
Pitch
3.00 mm
Orientation
180°
Minimum order quantity
20
Unit Type
pieces

Specific References

UPC
800754383264
