RBCTDF22PM3VP

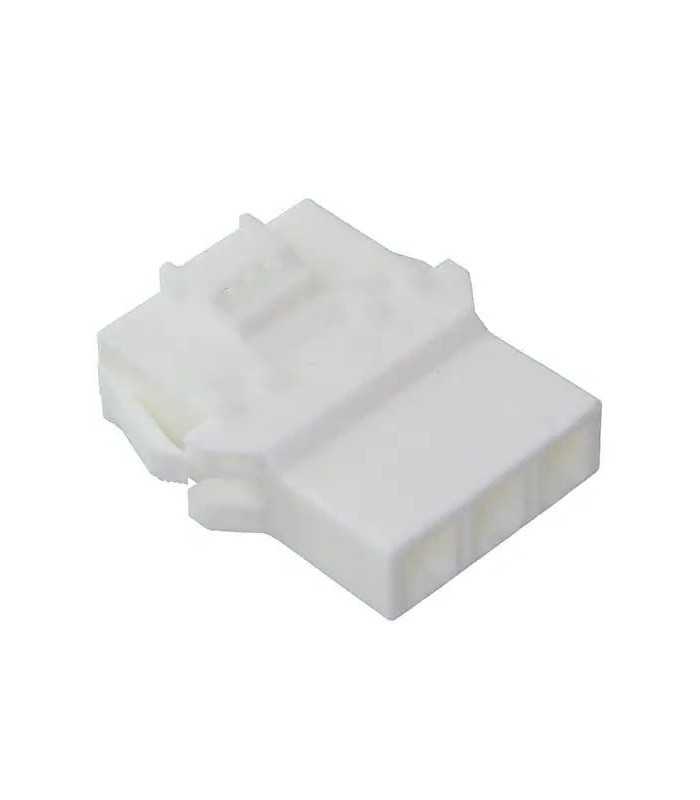

Connector DF22 Female 3 Way

Errebi code: 42390
Producer code: DF22-3EP-7.92C
Producer: Hirose
Read moreShow less
€1.93 (tax excl.)
€2.35 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
12 €2.12 €2.83
27 €1.88 €12.71
51 €1.77 €30.02
102 €1.53 €84.06
252 €1.30 €267.01
501 €1.18 €589.83
1002 €1.06 €1,297.62
Available in stock 70 Items
The minimum purchase order quantity for the product is 3.
Condition
New
Reference:
RBCTDF22PM3VP
Brand:
Hirose
Add to wishlist
Description
Basic Specifications
- Connector Type: In-line plug
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL, TÜV
- Number of Positions: 3
- Number of Rows (Interface): 1
- Contact Pitch: 7.92 mm
- Connector Length: 31.14 mm
- Connector Width: 34.95 mm
- Connector Height: 12.72 mm
- Connector Orientation: Straight
- Mating/Unmating Cycles: 30
- Housing Color: Beige
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Operating Temperature(°C): -55° to +85°
- Panel Mounting Style: Snap-in

Mechanical Specifications
- Locking Style: Latch-lock
- Key: Yes
- Finger Protection: No
- Metal Shields: No

Electrical Specifications
- Withstanding Voltage: 2500 V Max.
Read moreShow less
Product Details
RBCTDF22PM3VP

Data sheet

Product type
Connector body
Serie
DF22
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-55°C to +85°C
Dimensions
34,95x31,14x12,72 (L x W x H)
Flammability
94V-0
Mounting
On panel
Kind
Female
Number of poles
3
Number of rows
1
Pitch
7.92 mm
Orientation
180°
Minimum order quantity
3
Unit Type
pieces
Attachments
042390_001_3D .zip
Download (328.64KB)
042390_002_Drawing.pdf
Download (210.14KB)
