RBCTDF13PF5V

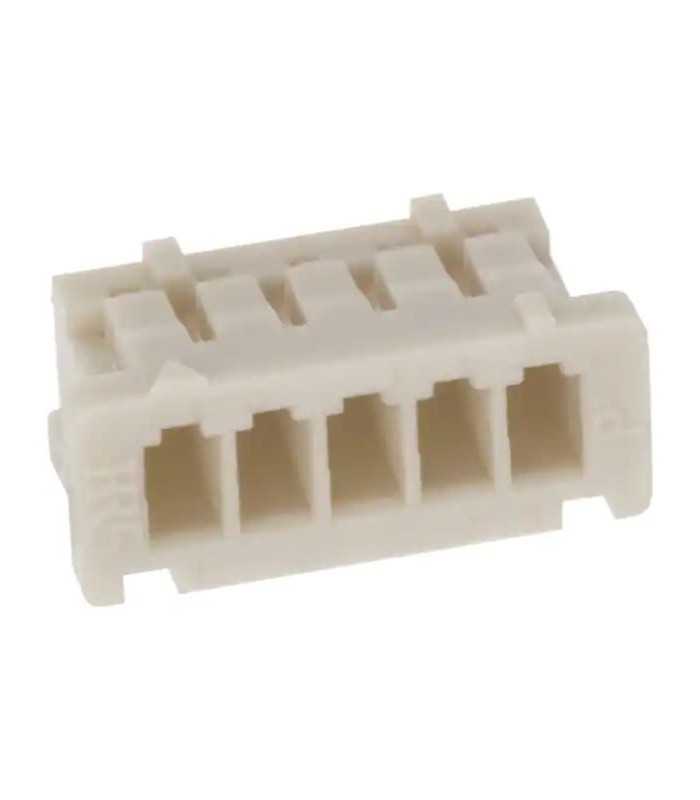

DF13 Connector Male 5 Way Hirose

Errebi code: 55131
Producer code: DF13-5S-1,25C
Producer: Hirose
Read moreShow less
€0.50 (tax excl.)
€0.61 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.61 €0.00
30 €0.49 €3.65
50 €0.46 €7.63
100 €0.40 €21.41
250 €0.34 €68.55
500 €0.31 €152.50
1000 €0.27 €335.81
Last items in stock 47 Items
The minimum purchase order quantity for the product is 10.
Condition
New
Reference:
RBCTDF13PF5VH
Brand:
Hirose
Add to wishlist
Description
Connector type: socket
Number of positions: 5
Number of lines (interface): 1
Mounting pitch: 1.25mm
Contact Pitch: 1.25mm
Connector connector length: 7.9 mm
Connector width: 3.2mm
Connector height: 4.0mm
Housing color: Beige
Wire termination method: crimping
Recommended cable type: Discrete cable
Recommended Min. Wire Size (AWG): 32
Recommended max. Wire Size (AWG): 26
Max operating temperature: 85
Min.working temperature: -35
Read moreShow less
Product Details
RBCTDF13PF5VH

Data sheet

Product type
Connector body
Serie
DF13
Amperage
1A
Material
PA (Polyamide, Nylon)
Color
Beige
Operating temperature
-25°C a +85°C
Dimensions
7,90x4,00x3,20 (L x W x H)
Flammability
94V-0
Voltage
150V
Mounting
On cable
Kind
Male
Number of poles
5
Number of rows
1
Pitch
1.25 mm
Orientation
180°
Minimum order quantity
10
Unit Type
pieces
