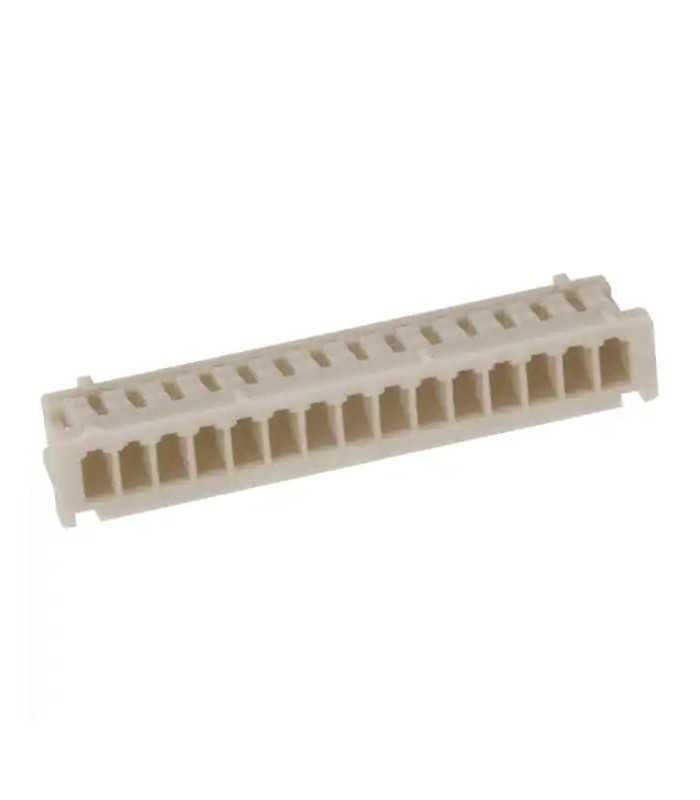

Connector DF13 male 15 way
Errebi code: 26528
Producer code: DF13-15S-1.25C
Producer: Hirose
Read moreShow lessProducer code: DF13-15S-1.25C
Producer: Hirose
€0.71
(tax excl.)
€0.87
(tax incl.)
Condition
New
Reference:
RBCTDF13PF15V
Brand:
Add to wishlist
Basic Specifications
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: UL
- Number of Positions: 15
- Number of Rows (Interface): 1
- Mounting Pitch: 1.25 mm
- Contact Pitch: 1.25 mm

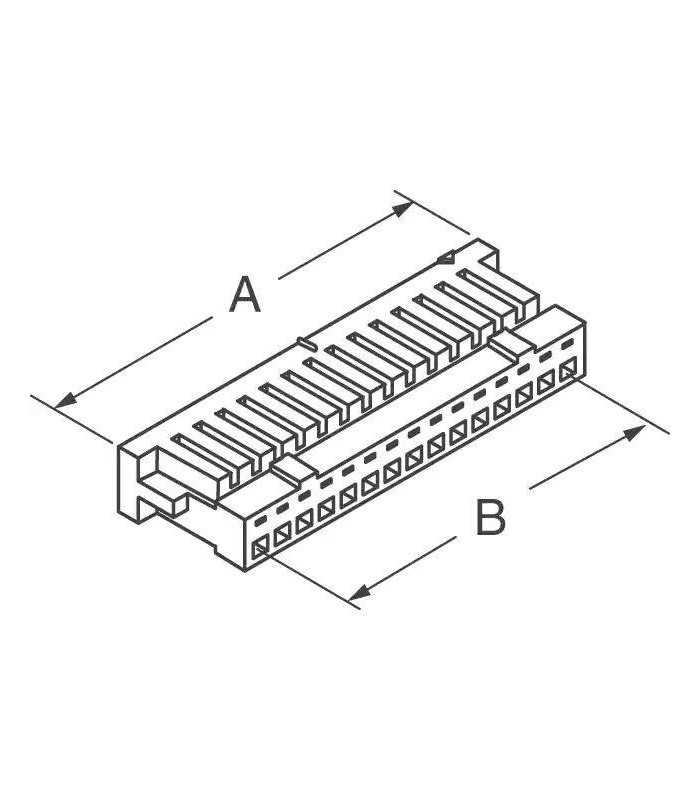

- Connector Length: 20.4 mm
- Connector Width: 3.2 mm
- Connector Height: 4.0 mm
- Mounting Side: Standard on-Board
- Staggered Lead: No
- Housing Color: Beige
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 32
- Recommended Max. Wire Size (AWG): 26
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
- Metal Shields: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
Read moreShow less
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: UL
- Number of Positions: 15
- Number of Rows (Interface): 1
- Mounting Pitch: 1.25 mm
- Contact Pitch: 1.25 mm
- Connector Length: 20.4 mm
- Connector Width: 3.2 mm
- Connector Height: 4.0 mm
- Mounting Side: Standard on-Board
- Staggered Lead: No
- Housing Color: Beige
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 32
- Recommended Max. Wire Size (AWG): 26
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
- Metal Shields: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
RBCTDF13PF15V
Data sheet
- Product type
- Connector body
- Serie
- DF13
- Amperage
- 1A
- Color
- Beige
- Operating temperature
- -35°C to +85°C
- Dimensions
- 20,40x4,00x3,20 (L x W x H)
- Voltage
- 150V
- Mounting
- On cable
- Kind
- Male
- Number of poles
- 15
- Number of rows
- 1
- Pitch
- 1.25 mm
- Orientation
- 180°
- Minimum order quantity
- 5
- Unit Type
- pieces
