RBCTDF22PF3VRH

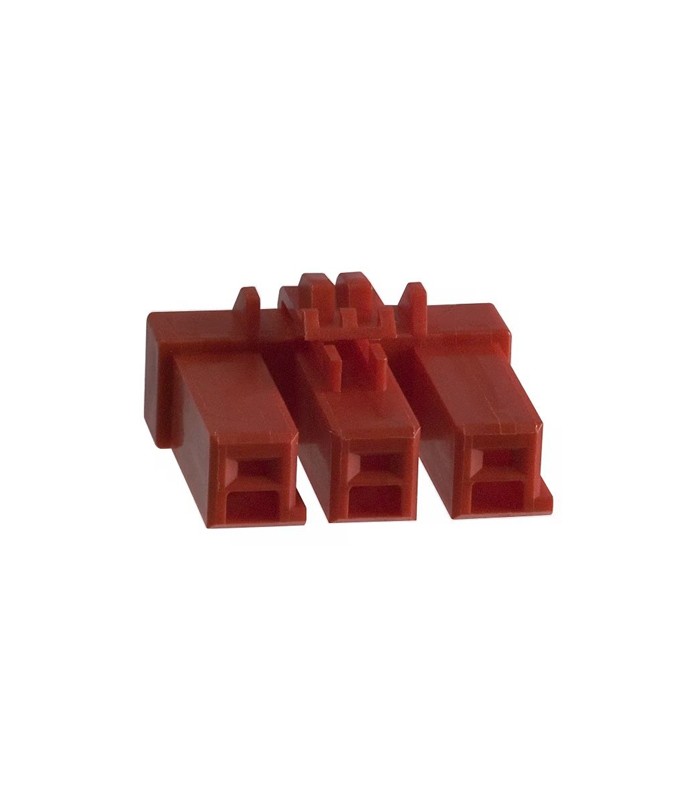

DF22 Connector male 3 way red

Errebi code: 24327
Producer code: DF22L-3S-7.92C(28)
Producer: Hirose
Read moreShow less
€0.58 (tax excl.)
€0.71 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €0.71 €0.00
10 €0.64 €0.70
25 €0.57 €3.53
50 €0.53 €8.85
100 €0.46 €24.84
250 €0.39 €79.52
500 €0.35 €176.90
1000 €0.32 €389.53
Available in stock 5003 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTDF22PF3VRH
Brand:
Hirose
Add to wishlist
Description
Manufacturer: Hirose
Gender: Male
Rated current: 25A
Rated voltage: 1kV
Number of positions: 3 positions
Pitch: 7.92mm
Series: DF22
Contact material: copper alloy
Contact Plating: Tin
Housing Color: Red
Housing material: polyamide (PA)
Insulation resistance: 1000MOhm
Maximum working temperature: +85C
Minimum operating temperature: - 55 C
Mounting angle: straight
Number of lines: 1 line
Maximum conductor section: 10 AWG
Minimum conductor section: 16 AWG
Unit weight: 6,650 g
Read moreShow less
Product Details
RBCTDF22PF3VRH

Data sheet

Product type
Connector body
Amperage
25A
Material
PA (Polyamide, Nylon)
Color
Red
Operating temperature
-55°C to +85°C
Contact material
Copper Alloy
Mounting
On cable
Wire range
16 - 10 AWG
Kind
Male
Number of poles
3
Number of rows
1
Pitch
7.92 mm
Orientation
180°
Contact plating
Tin
Minimum order quantity
5
Unit Type
pieces
Attachments
024327_001_DATASHEET.pdf
Download (198.66KB)
