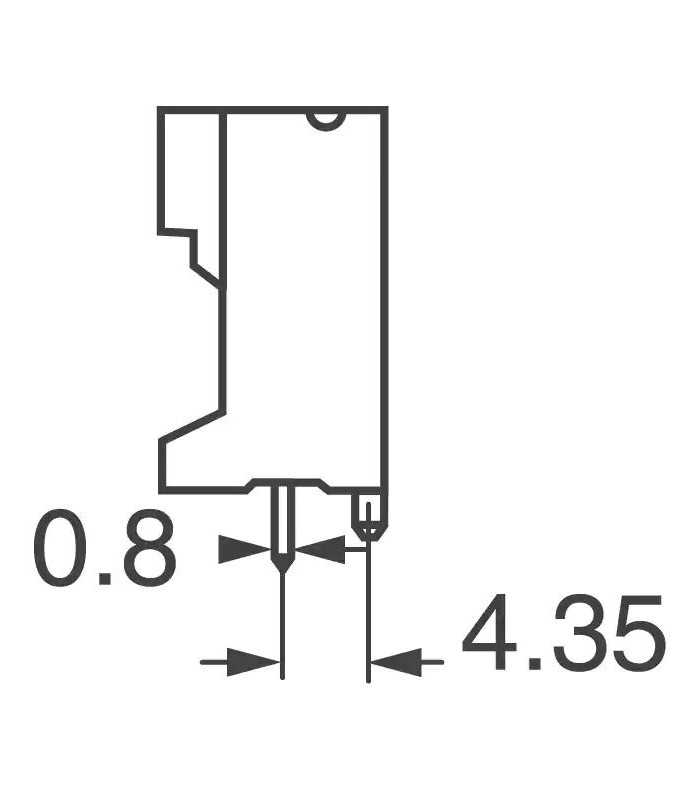

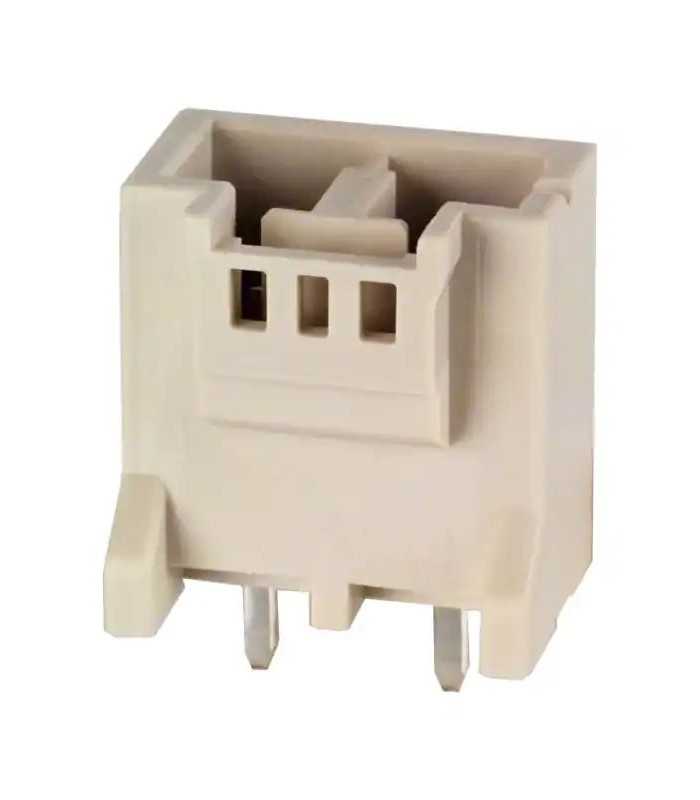

Connector DF22 Male 2 Way PCB

Errebi code: 49437
Producer code: DF22-2P-7.92DSA
Producer: Hirose

Read moreShow less

€2.05 (tax excl.)

€2.50 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
10	€2.25	€2.50
25	€2.00	€12.51
50	€1.88	€31.26
100	€1.63	€87.54
250	€1.38	€281.36
500	€1.25	€625.25
1000	€1.13	€1,375.55

Last items in stock 5 Items

Condition

New

Reference:

RBCTDF22PM2VCS

Brand:

Hirose

Add to wishlist

Description

Basic Specifications
- Connector Type: Header
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL, TÜV
- Number of Positions: 2
- Number of Rows (Interface): 1
- Mounting Pitch: 7.92 mm
- Contact Pitch: 7.92 mm
- Connector Length: 17.22 mm
- Connector Width: 12.45 mm
- Connector Height: 18.1 mm
- Mounting Style: THT
- Mounting Side: Standard on-Board
- Staggered Lead: No
- Recommended PCB Thickness: 1.6 mm Max.
- Connector Orientation: Straight
- Mating/Unmating Cycles: 30
- Contact Plating: Tin-Copper
- Plating Thickness: 1.0 µm
- Housing Color: Beige
- Operating Temperature(°C): -55° to +85°

Mechanical Specifications
- Locking Style: Latch-lock
- Key: Yes
- Finger Protection: No
- Metal Shields: No

Electrical Specifications
- Rated Current: 38.0 A
- Rated Voltage (AC): AC 1000.0 V
- Rated Voltage (DC): DC 1000.0 V
- Withstanding Voltage: 2500 V Max.
