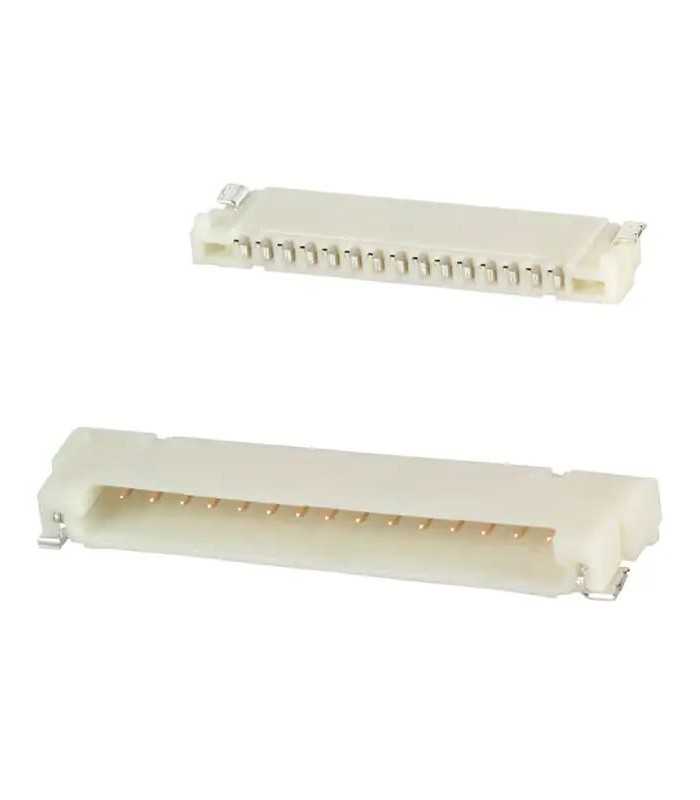

Connector DF14 Female 15 Way PCB
Errebi code: 49476
Producer code: DF14-15P-1.25H(56)
Producer: Hirose
Read moreShow lessProducer code: DF14-15P-1.25H(56)
Producer: Hirose
€6.53
(tax excl.)
€7.97
(tax incl.)
Condition
New
Reference:
RBCTDF14PM15VCS
Brand:
Add to wishlist
Basic Specifications
- Connector Type: Socket
- Cable Assembly: No
- Number of Positions: 15
- Number of Rows (Interface): 1
- Mounting Pitch: 1.25 mm
- Contact Pitch: 1.25 mm
- Connector Length: 23.7 mm
- Connector Width: 6.7 mm
- Connector Height: 2.5 mm
- Mounting Style: SMT
- Mounting Side: Standard on-Board
- Connector Orientation: Right angle
- Mating/Unmating Cycles: 50
- Contact Plating: Gold
- Plating Thickness: 0.1 µm
- Housing Color: Beige
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
- Performance Characteristics: LVDS
Read moreShow less
- Connector Type: Socket
- Cable Assembly: No
- Number of Positions: 15
- Number of Rows (Interface): 1
- Mounting Pitch: 1.25 mm
- Contact Pitch: 1.25 mm
- Connector Length: 23.7 mm
- Connector Width: 6.7 mm
- Connector Height: 2.5 mm
- Mounting Style: SMT
- Mounting Side: Standard on-Board
- Connector Orientation: Right angle
- Mating/Unmating Cycles: 50
- Contact Plating: Gold
- Plating Thickness: 0.1 µm
- Housing Color: Beige
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
- Performance Characteristics: LVDS
RBCTDF14PM15VCS
Data sheet
- Product type
- Connector
- Serie
- DF14
- Amperage
- 1A
- Material
- PA (Polyamide, Nylon)
- Color
- Beige
- Operating temperature
- -35°C to +85°C
- Dimensions
- 6,70x23,70x2,50 (L x W x H)
- Flammability
- 94V-2
- Voltage
- 150V
- Contact material
- Brass
- Mounting
- Printed circuit
- Kind
- Female
- Number of poles
- 15
- Number of rows
- 1
- Pitch
- 1.25 mm
- Orientation
- 90°
- Contact plating
- Gold
- Minimum order quantity
- 1
- Unit Type
- piece
