Errebi code: 24318Produzent code: DF22L-2S-7.92C(28)Produzent: Hirose

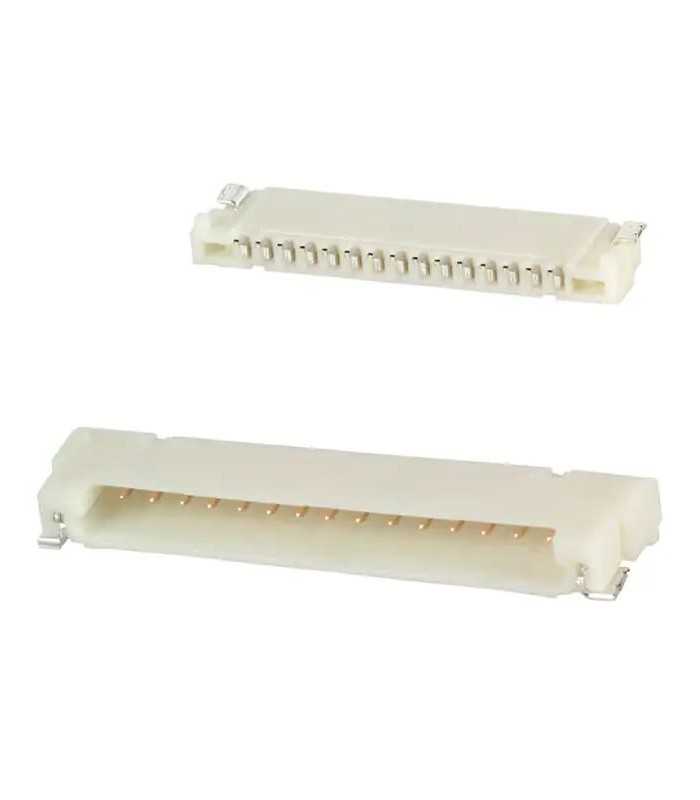

Steckverbinder DF14 Weiblich 15 Wege PCB
Errebi code: 49476
Produzent code: DF14-15P-1.25H(56)
Produzent: Hirose
Read moreShow lessProduzent code: DF14-15P-1.25H(56)
Produzent: Hirose
6,53 €
(tax excl.)
7,97 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCTDF14PM15VCS
Marke:
Zur Wunschliste hinzufügen
Basic Specifications
- Connector Type: Socket
- Cable Assembly: No
- Number of Positions: 15
- Number of Rows (Interface): 1
- Mounting Pitch: 1.25 mm
- Contact Pitch: 1.25 mm
- Connector Length: 23.7 mm
- Connector Width: 6.7 mm
- Connector Height: 2.5 mm
- Mounting Style: SMT
- Mounting Side: Standard on-Board
- Connector Orientation: Right angle
- Mating/Unmating Cycles: 50
- Contact Plating: Gold
- Plating Thickness: 0.1 µm
- Housing Color: Beige
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
- Performance Characteristics: LVDS
Read moreShow less
- Connector Type: Socket
- Cable Assembly: No
- Number of Positions: 15
- Number of Rows (Interface): 1
- Mounting Pitch: 1.25 mm
- Contact Pitch: 1.25 mm
- Connector Length: 23.7 mm
- Connector Width: 6.7 mm
- Connector Height: 2.5 mm
- Mounting Style: SMT
- Mounting Side: Standard on-Board
- Connector Orientation: Right angle
- Mating/Unmating Cycles: 50
- Contact Plating: Gold
- Plating Thickness: 0.1 µm
- Housing Color: Beige
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
- Performance Characteristics: LVDS
RBCTDF14PM15VCS
Technische Daten
- Produktart
- Steckverbinder
- Serie
- DF14
- Stromstärke
- 1A
- Material
- PA (Polyamid, Nylon)
- Farbe
- Beige
- Betriebstemperatur
- -35°C bis +85°C
- Aussenmass
- 6,70x23,70x2,50 (L x W x H)
- Entzündbarkeit
- 94V-2
- Spannung
- 150V
- Kontaktmaterial
- Messing
- Montage
- Gedruckte Schaltung
- Art
- Weibilich
- Anzahl der Pole
- 15
- Anzahl der reihen
- 1
- Raster
- 1.25 mm
- Ausrichtung
- 90°
- Kontaktbeschichtung
- Gold
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
