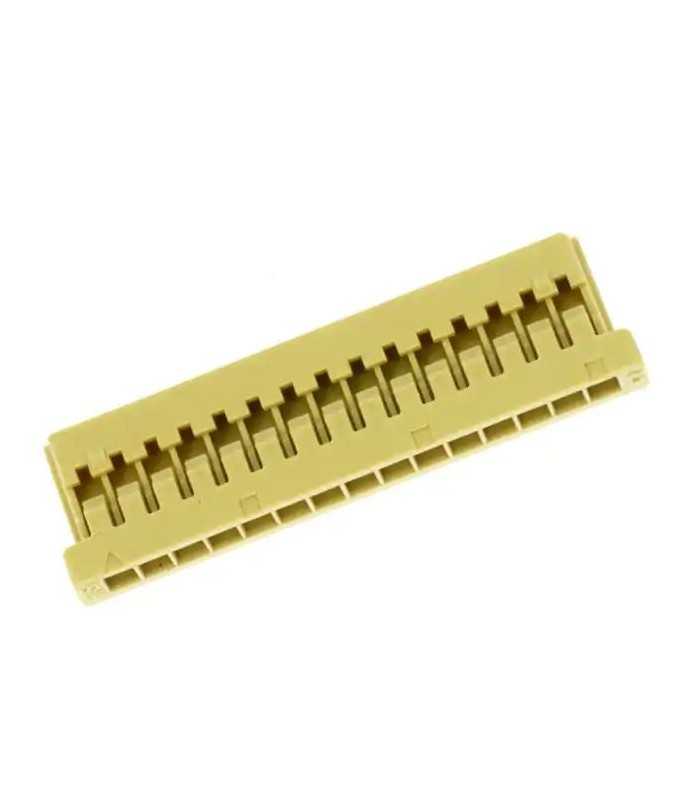

Connector DF14 male 15 way
Errebi code: 49474
Producer code: DF14-15S-1.25C
Producer: Hirose
Read moreShow lessProducer code: DF14-15S-1.25C
Producer: Hirose
€0.54
(tax excl.)
€0.66
(tax incl.)
Condition
New
Reference:
RBCTDF14PF15V
Brand:
Add to wishlist
Basic Specifications
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: UL
- Number of Positions: 15
- Number of Rows (Interface): 1
- Contact Pitch: 1.25 mm

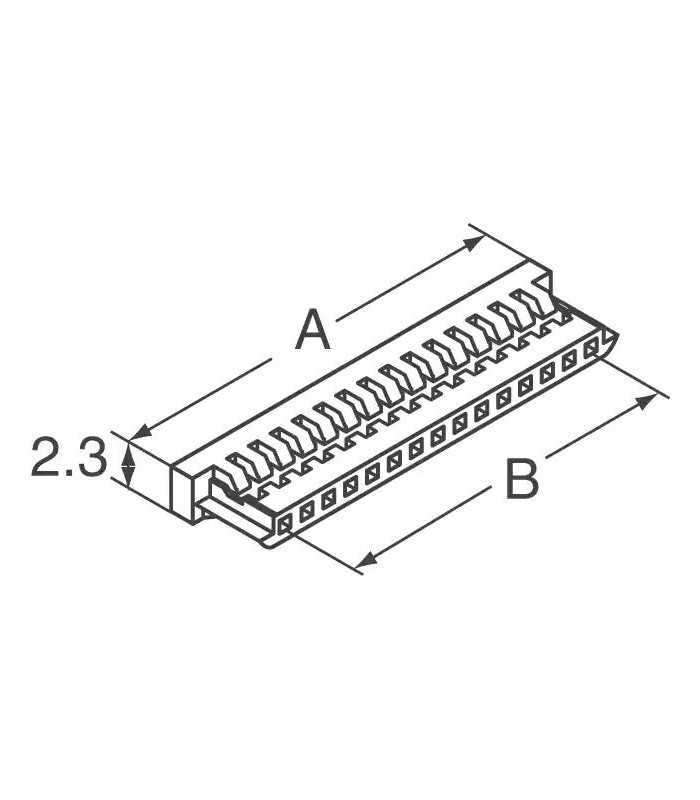

- Connector Length: 20.7 mm
- Connector Width: 5.8 mm
- Connector Height: 2.3 mm
- Connector Orientation: Straight
- Housing Color: Beige
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 32
- Recommended Max. Wire Size (AWG): 26
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
- Performance Characteristics: LVDS
Read moreShow less
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: UL
- Number of Positions: 15
- Number of Rows (Interface): 1
- Contact Pitch: 1.25 mm
- Connector Length: 20.7 mm
- Connector Width: 5.8 mm
- Connector Height: 2.3 mm
- Connector Orientation: Straight
- Housing Color: Beige
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 32
- Recommended Max. Wire Size (AWG): 26
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
- Performance Characteristics: LVDS
RBCTDF14PF15V
Data sheet
- Product type
- Connector body
- Serie
- DF14
- Amperage
- 1A
- Color
- Beige
- Operating temperature
- -35°C to +85°C
- Dimensions
- 5,80x20,70x2,30 (L x W x H)
- Voltage
- 150V
- Mounting
- On cable
- Kind
- Male
- Number of poles
- 15
- Number of rows
- 1
- Pitch
- 1.25 mm
- Orientation
- 180°
- Minimum order quantity
- 5
- Unit Type
- pieces
