Errebi code: 24318Produzent code: DF22L-2S-7.92C(28)Produzent: Hirose

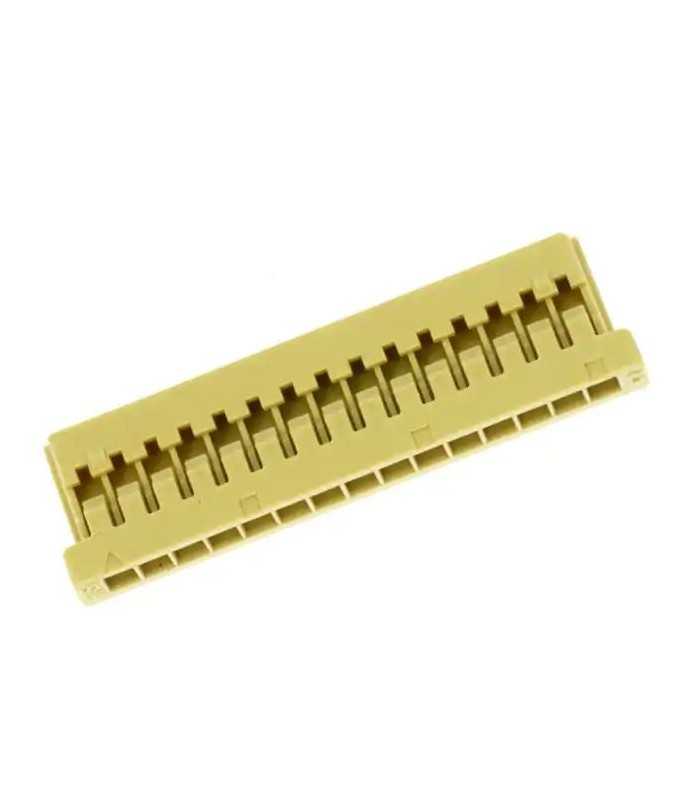

Steckverbinder DF14 männlich 15 wege
Errebi code: 49474
Produzent code: DF14-15S-1.25C
Produzent: Hirose
Read moreShow lessProduzent code: DF14-15S-1.25C
Produzent: Hirose
0,54 €
(tax excl.)
0,66 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCTDF14PF15V
Marke:
Zur Wunschliste hinzufügen
Basic Specifications
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: UL
- Number of Positions: 15
- Number of Rows (Interface): 1
- Contact Pitch: 1.25 mm

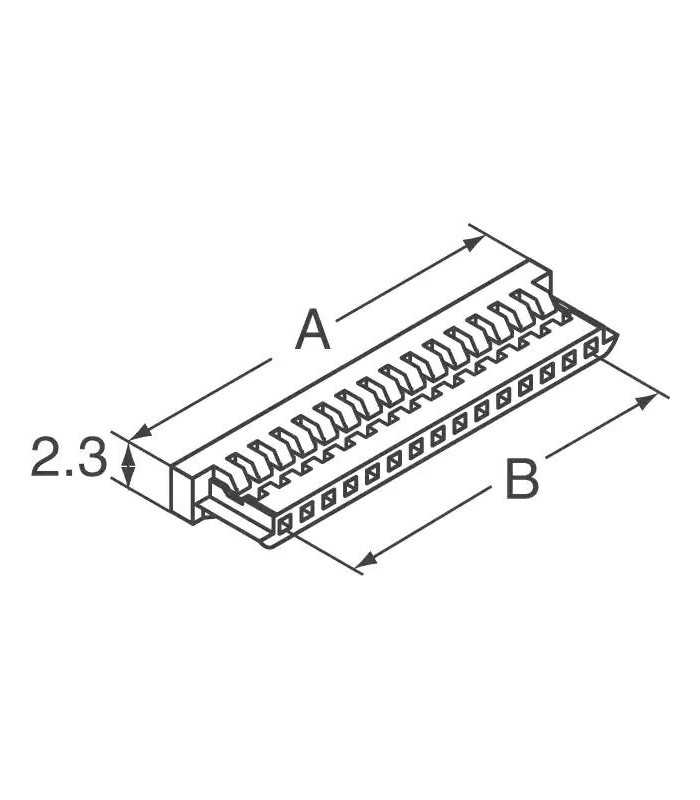

- Connector Length: 20.7 mm
- Connector Width: 5.8 mm
- Connector Height: 2.3 mm
- Connector Orientation: Straight
- Housing Color: Beige
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 32
- Recommended Max. Wire Size (AWG): 26
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
- Performance Characteristics: LVDS
Read moreShow less
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: UL
- Number of Positions: 15
- Number of Rows (Interface): 1
- Contact Pitch: 1.25 mm
- Connector Length: 20.7 mm
- Connector Width: 5.8 mm
- Connector Height: 2.3 mm
- Connector Orientation: Straight
- Housing Color: Beige
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 32
- Recommended Max. Wire Size (AWG): 26
- Operating Temperature: -35°C to 85°C
Mechanical Specifications
- Locking Style: Friction
- Key: No
Electrical Specifications
- Rated Current: 1.0 A
- Rated Voltage (AC): AC 150.0 V
- Withstanding Voltage: 500 V Max.
- Performance Characteristics: LVDS
RBCTDF14PF15V
Technische Daten
- Produktart
- Steckverbinderkörper
- Serie
- DF14
- Stromstärke
- 1A
- Farbe
- Beige
- Betriebstemperatur
- -35°C bis +85°C
- Aussenmass
- 5,80x20,70x2,30 (L x W x H)
- Spannung
- 150V
- Montage
- Auf Kabel
- Art
- Männlich
- Anzahl der Pole
- 15
- Anzahl der reihen
- 1
- Raster
- 1.25 mm
- Ausrichtung
- 180°
- Mindestbestellmenge
- 5
- Maßeinheit
- stücke
