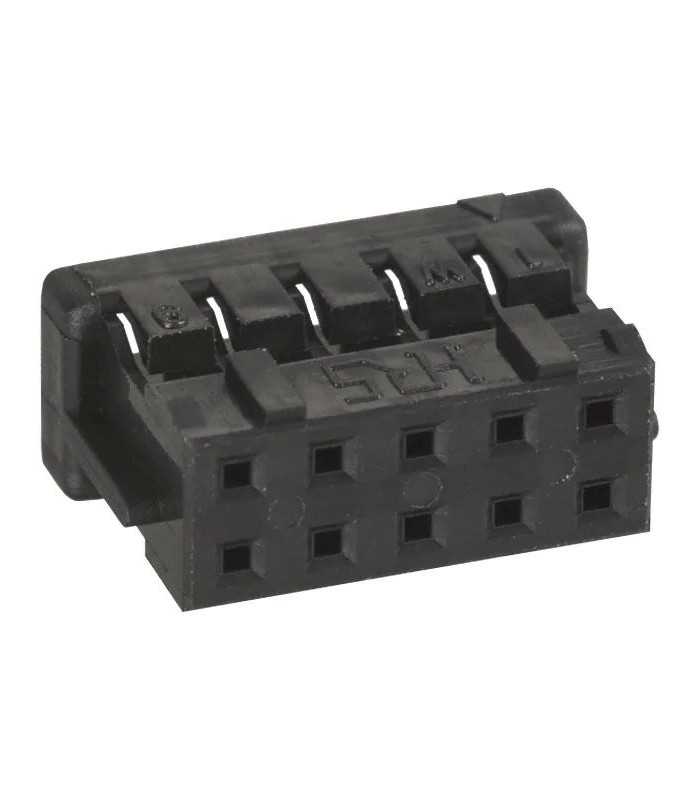

Connector DF11 Male 5x2 Way

Errebi code: 44227
Producer code: DF11-10DS-2C
Producer: Hirose
Read moreShow less
€0.12 (tax excl.)
€0.15 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €0.15 €0.00
10 €0.13 €0.14
25 €0.12 €0.73
50 €0.11 €1.83
100 €0.10 €5.14
250 €0.08 €16.45
500 €0.07 €36.60
1000 €0.07 €80.59
Available in stock 2533 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTDF11PF5X2V
Brand:
Add to wishlist
Description
Basic Specifications
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL
- Number of Positions: 10
- Number of Rows (Interface): 2
- Contact Pitch: 2.0 mm
- Connector Length: 12.0 mm
- Connector Width: 5.0 mm
- Connector Height: 7.3 mm
- Staggered Lead: No
- Housing Color: Black
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 30
- Recommended Max. Wire Size (AWG): 22
- Operating Temperature: -40°C to 85°C

Mechanical Specifications
- Locking Style: Friction

Electrical Specifications
- Rated Current: 2.0 A
- Rated Voltage (AC): AC 250.0 V
- Rated Voltage (DC): DC 250.0 V
- Withstanding Voltage: 650 V Max.
Read moreShow less
Product Details
RBCTDF11PF5X2V

Data sheet

Product type
Connector body
Serie
DF11
Amperage
2A
Material
PA (Polyamide, Nylon)
Color
Black
Operating temperature
-40°C a +85°C
Dimensions
12,00x5,00x7,30 (L x W x H)
Voltage
250V
Mounting
On cable
Wire range
30 - 22 AWG
Kind
Male
Number of poles
10
Number of rows
2
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
5
Unit Type
pieces
