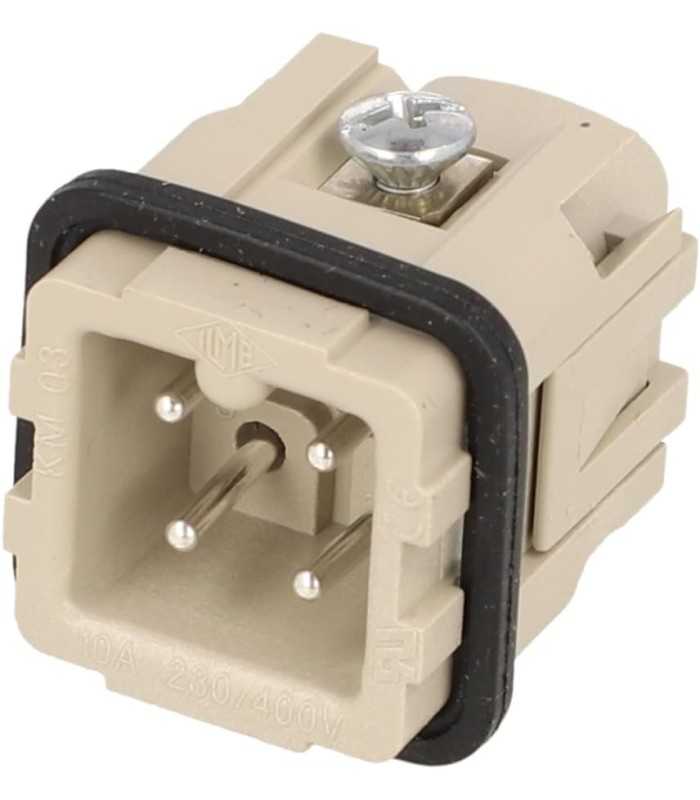

Connector Rectangular Male 3 Way + Grounding 10A
Errebi code: 12067
Producer code: CKM03
Producer: ILME
Read moreShow lessProducer code: CKM03
Producer: ILME
€4.89
(tax excl.)
€5.97
(tax incl.)
Condition
New
Reference:
RBFRTPR4P10AM
Brand:
Add to wishlist
Rated voltage
Installed in a plastic housing: 400 V
Installed in a metal housing: L-PE 250 V / L-L 400 V
Rated voltage according to UL/CSA: 600 V
Rated impulse voltage
Plastic housing: 4 kV
Metal housing: 4 kV
Rated current: 10 A
Degree of pollution: 3
Rated cross section
EN 60999: 0.5 – 2.5 mm2
UL: 18 – 16 AWG
CSA: 22 – 12 AWG
Contacts
Material: Copper alloy
Surface: Sn
Insulation strip length: 4 mm
Contact resistance: = 2 mO
Mating cycles: 50
Screws
Mounting screws: M3 / 0.5 – 0.7 Nm
Clamping screws: M3 / 0.5 – 0.7 Nm
Ground conductor screws: M3 / 0.5 – 0.7 Nm
Temperature range: -40 – +120 °C
Read moreShow less
Installed in a plastic housing: 400 V
Installed in a metal housing: L-PE 250 V / L-L 400 V
Rated voltage according to UL/CSA: 600 V
Rated impulse voltage
Plastic housing: 4 kV
Metal housing: 4 kV
Rated current: 10 A
Degree of pollution: 3
Rated cross section
EN 60999: 0.5 – 2.5 mm2
UL: 18 – 16 AWG
CSA: 22 – 12 AWG
Contacts
Material: Copper alloy
Surface: Sn
Insulation strip length: 4 mm
Contact resistance: = 2 mO
Mating cycles: 50
Screws
Mounting screws: M3 / 0.5 – 0.7 Nm
Clamping screws: M3 / 0.5 – 0.7 Nm
Ground conductor screws: M3 / 0.5 – 0.7 Nm
Temperature range: -40 – +120 °C
RBFRTPR4P10AM
Data sheet
- Product type
- Connector
- Amperage
- 10A
- Color
- White
- Operating temperature
- -40°C to +120°C
- Flammability
- 94V-2
- Voltage
- 400V
- Wire range
- 22 - 12 AWG
- Kind
- Male
- Number of poles
- 4
- Orientation
- 180°
- Minimum order quantity
- 1
- Unit Type
- piece
