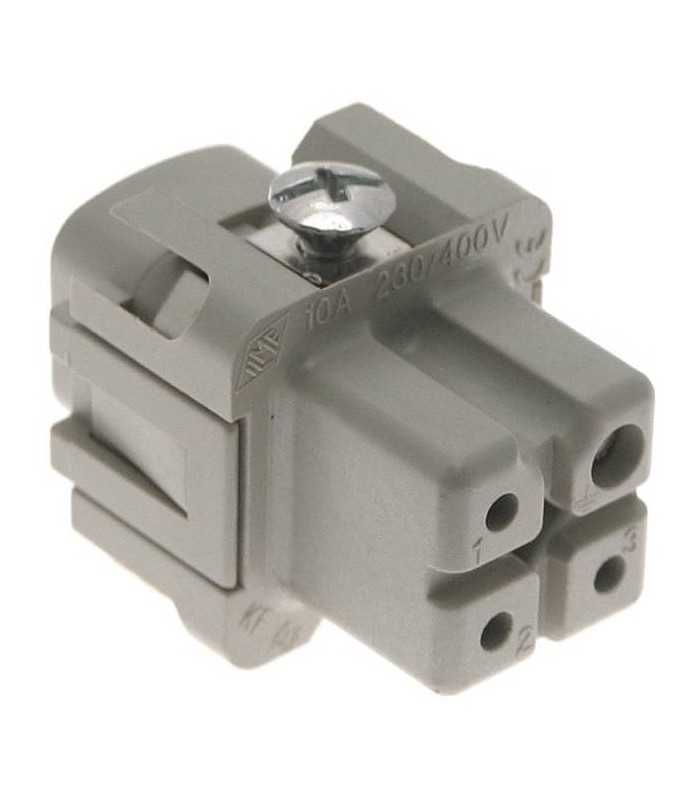

Connector Rectangular Female 3 Way + Grounding 10A

Errebi code: 12279
Producer code: CKF03
Producer: ILME
Read moreShow less
€18.92 (tax excl.)
€23.08

Discounts for quantities

Quantity Unit price You Save
5 €17.82 €26.33
10 €15.79 €72.89
25 €13.77 €232.84
100 €12.15 €1,093.41
Last items in stock 2 Items
Condition
New
Reference:
RBFRTPR4P10AF
Brand:
Add to wishlist
Description
Rated voltage
Installed in a plastic housing: 400 V
Installed in a metal housing: L-PE 250 V / L-L 400 V
Rated voltage according to UL/CSA: 600 V
Rated impulse voltage
Plastic housing: 4 kV
Metal housing: 4 kV
Rated current: 10 A
Degree of pollution: 3
Rated cross section
EN 60999: 0.5 – 2.5 mm2
UL: 18 – 16 AWG
CSA: 22 – 12 AWG
Contacts
Material: Copper alloy
Surface: Sn
Insulation strip length: 4 mm
Contact resistance: = 2 mO
Mating cycles: 50
Screws
Mounting screws: M3 / 0.5 – 0.7 Nm
Clamping screws: M3 / 0.5 – 0.7 Nm
Ground conductor screws: M3 / 0.5 – 0.7 Nm
Temperature range: -40 – +120 °C
Read moreShow less
Product Details
RBFRTPR4P10AF

Data sheet

Product type
Connector
Serie
MIN
Amperage
10A
Color
White
Operating temperature
-40°C to +110°C
Voltage
250V
Wire range
0.50 - 2.50 mmq
Kind
Female
Number of poles
3
Orientation
180°
Minimum order quantity
1
Unit Type
piece
