€25.56
(tax excl.)
€31.18
(tax incl.)
Errebi code: 12279Producer code: CKF03Producer: ILME

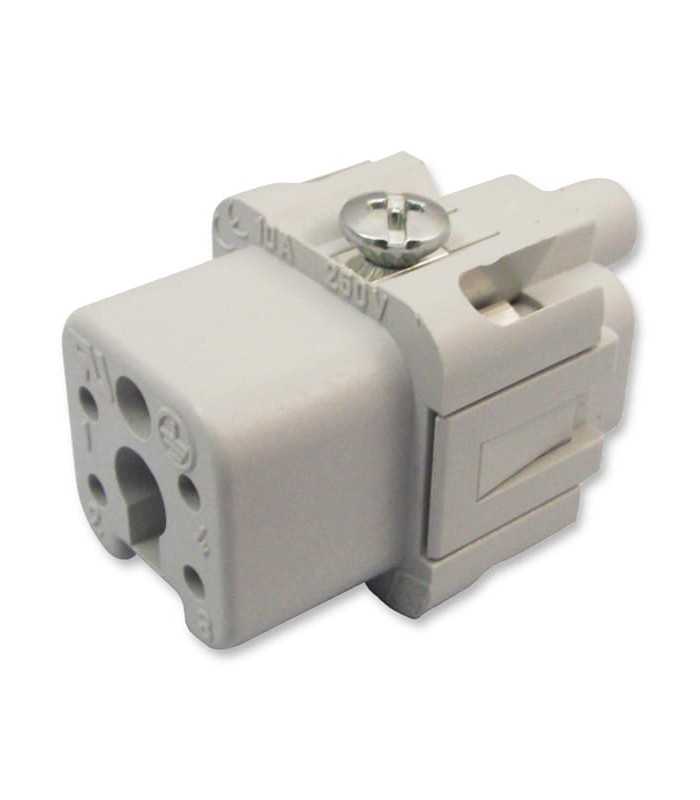

Connector Rectangular Female Insert 4 Way + Grounding 10A
Errebi code: 20123
Producer code: CKF 04
Producer: ILME
Read moreShow lessProducer code: CKF 04
Producer: ILME
€4.74
(tax excl.)
€5.78
(tax incl.)
Condition
New
Reference:
RBFRTPR5P10AF
Brand:
Add to wishlist
Manufacturer: ILME
Connector type: square
Connector type: female
Connector series: CK/MK
Number of pins: 5
Type of pin configuration: 4+PE
Case: size 21.21
Rated current: 10A
Rated voltage: 250V
Wire cross section: 0.75...2.5mm2
Mechanical durability: 500cycles
Contact plating: silver plated
Contact material: brass
Max. contact resistance:: 1mO
Test voltage: 4kV
Operating temperature: -40...100°C
Mechanical mounting: for cable
Electrical mounting: screw terminal
Conform to the norm: CE, CSA, DIN VDE 0627, IEC 61984, UL
Read moreShow less
Connector type: square
Connector type: female
Connector series: CK/MK
Number of pins: 5
Type of pin configuration: 4+PE
Case: size 21.21
Rated current: 10A
Rated voltage: 250V
Wire cross section: 0.75...2.5mm2
Mechanical durability: 500cycles
Contact plating: silver plated
Contact material: brass
Max. contact resistance:: 1mO
Test voltage: 4kV
Operating temperature: -40...100°C
Mechanical mounting: for cable
Electrical mounting: screw terminal
Conform to the norm: CE, CSA, DIN VDE 0627, IEC 61984, UL
RBFRTPR5P10AF
Data sheet
- Product type
- Connector
- Serie
- CK/MK
- Amperage
- 10A
- Color
- Grey
- Operating temperature
- -40°C to +125°C
- Voltage
- 400V
- Contact material
- Brass
- Mounting
- On cable
- Wire range
- 18 - 14 AWG
- Kind
- Female
- Number of poles
- 4
- Number of rows
- 2
- Orientation
- 180°
- Minimum order quantity
- 1
- Unit Type
- piece
