4,74 €
(tax excl.)
5,78 €
(inkl. MwSt.)
Errebi code: 20123Produzent code: CKF 04Produzent: ILME

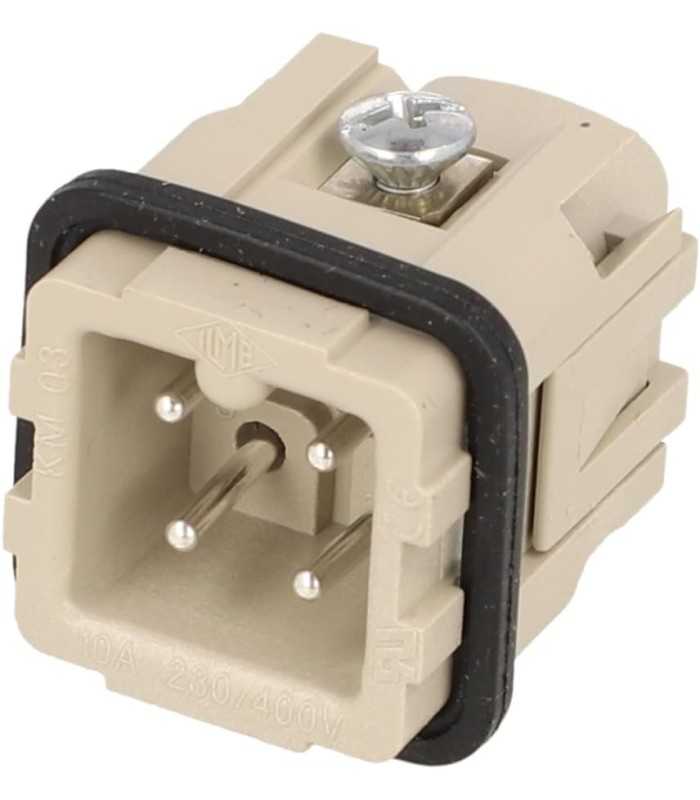

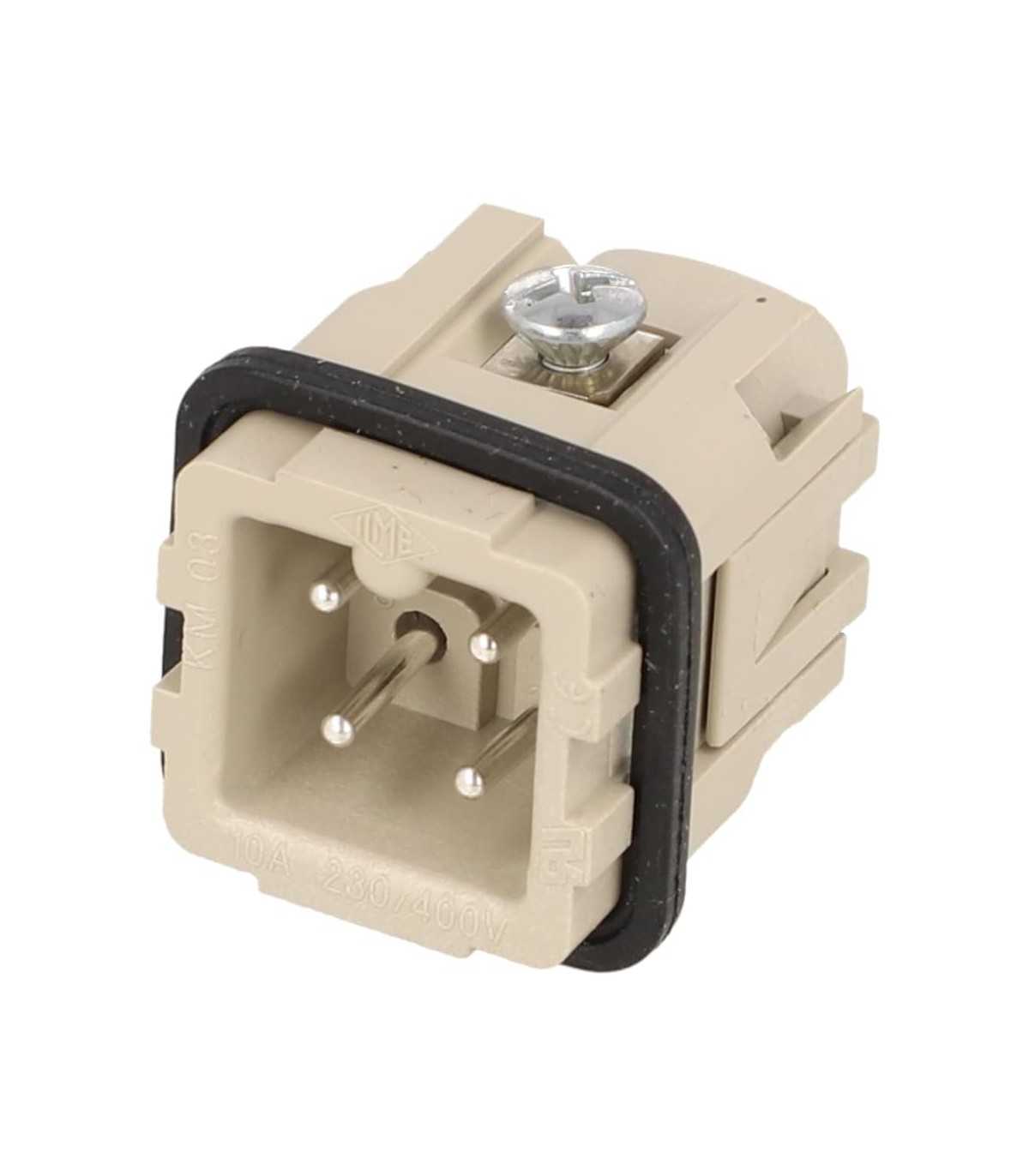

Steckverbinder Rechteckigen Männlich 3 + Erdung Wege
Errebi code: 12067
Produzent code: CKM03
Produzent: ILME
Read moreShow lessProduzent code: CKM03
Produzent: ILME
4,89 €
(tax excl.)
5,97 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBFRTPR4P10AM
Marke:
Zur Wunschliste hinzufügen
Rated voltage
Installed in a plastic housing: 400 V
Installed in a metal housing: L-PE 250 V / L-L 400 V
Rated voltage according to UL/CSA: 600 V
Rated impulse voltage
Plastic housing: 4 kV
Metal housing: 4 kV
Rated current: 10 A
Degree of pollution: 3
Rated cross section
EN 60999: 0.5 – 2.5 mm2
UL: 18 – 16 AWG
CSA: 22 – 12 AWG
Contacts
Material: Copper alloy
Surface: Sn
Insulation strip length: 4 mm
Contact resistance: = 2 mO
Mating cycles: 50
Screws
Mounting screws: M3 / 0.5 – 0.7 Nm
Clamping screws: M3 / 0.5 – 0.7 Nm
Ground conductor screws: M3 / 0.5 – 0.7 Nm
Temperature range: -40 – +120 °C
Read moreShow less
Installed in a plastic housing: 400 V
Installed in a metal housing: L-PE 250 V / L-L 400 V
Rated voltage according to UL/CSA: 600 V
Rated impulse voltage
Plastic housing: 4 kV
Metal housing: 4 kV
Rated current: 10 A
Degree of pollution: 3
Rated cross section
EN 60999: 0.5 – 2.5 mm2
UL: 18 – 16 AWG
CSA: 22 – 12 AWG
Contacts
Material: Copper alloy
Surface: Sn
Insulation strip length: 4 mm
Contact resistance: = 2 mO
Mating cycles: 50
Screws
Mounting screws: M3 / 0.5 – 0.7 Nm
Clamping screws: M3 / 0.5 – 0.7 Nm
Ground conductor screws: M3 / 0.5 – 0.7 Nm
Temperature range: -40 – +120 °C
RBFRTPR4P10AM
Technische Daten
- Produktart
- Steckverbinder
- Stromstärke
- 10A
- Farbe
- Weiß
- Betriebstemperatur
- -40°C bis +120°C
- Entzündbarkeit
- 94V-2
- Spannung
- 400V
- Kabelbereich
- 22 - 12 AWG
- Art
- Männlich
- Anzahl der Pole
- 4
- Ausrichtung
- 180°
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
