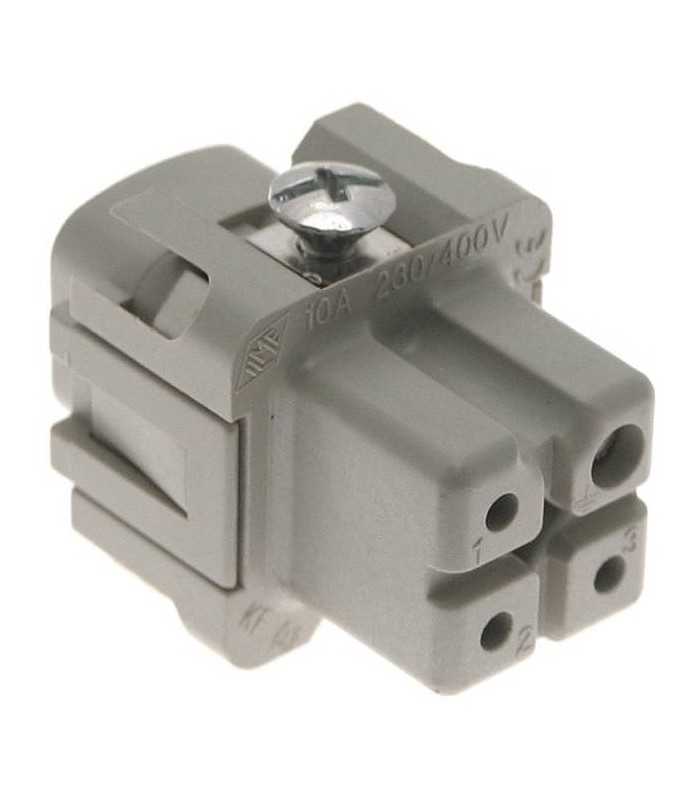

Steckverbinder Rechteckigen Weiblich 3 Wege + Erdung 10A

Errebi code: 12279
Produzent code: CKF03
Produzent: ILME

18,92 € (tax excl.)

23,08 € (inkl. MwSt.)

Mengenrabatt

Menge	Stückpreis	Sie sparen
5	17,82 €	26,33 €
10	15,79 €	72,89 €
25	13,77 €	232,84 €
100	12,15 €	1.093,41 €

Nur noch wenige Teile verfügbar 2 Artikel

Zustand

Neu

Reference:

RBFRTPR4P10AF

Marke:

WIELAND

Zur Wunschliste hinzufügen

Beschreibung

Rated voltage
Installed in a plastic housing: 400 V
Installed in a metal housing: L-PE 250 V / L-L 400 V
Rated voltage according to UL/CSA: 600 V
Rated impulse voltage
Plastic housing: 4 kV
Metal housing: 4 kV
Rated current: 10 A
Degree of pollution: 3
Rated cross section
EN 60999: 0.5 – 2.5 mm2
UL: 18 – 16 AWG
CSA: 22 – 12 AWG
Contacts
Material: Copper alloy
Surface: Sn
Insulation strip length: 4 mm
Contact resistance: = 2 mO
Mating cycles: 50
Screws
Mounting screws: M3 / 0.5 – 0.7 Nm
Clamping screws: M3 / 0.5 – 0.7 Nm
Ground conductor screws: M3 / 0.5 – 0.7 Nm
Temperature range: -40 – +120 °C
