RBCTMD2M2VCS

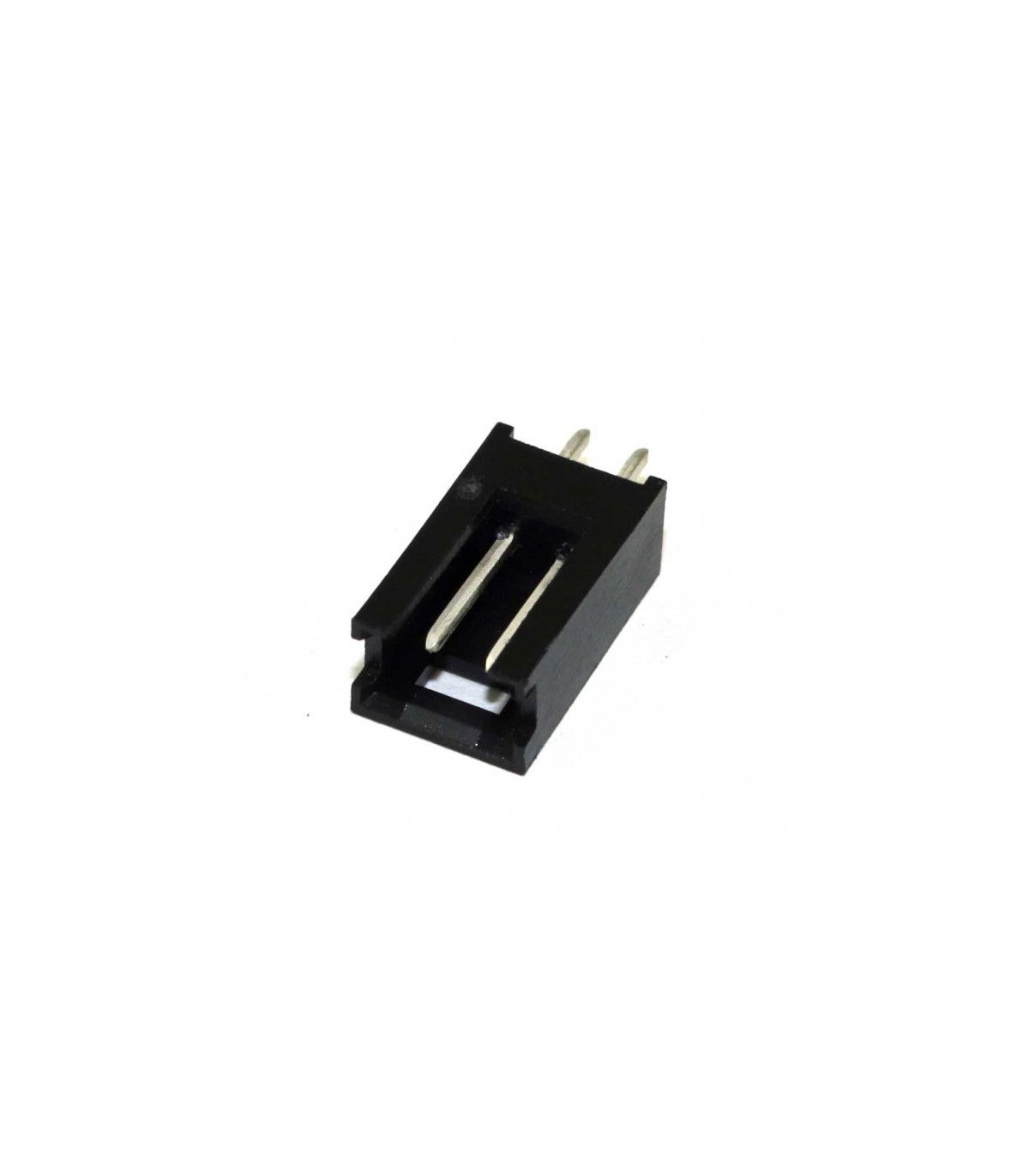

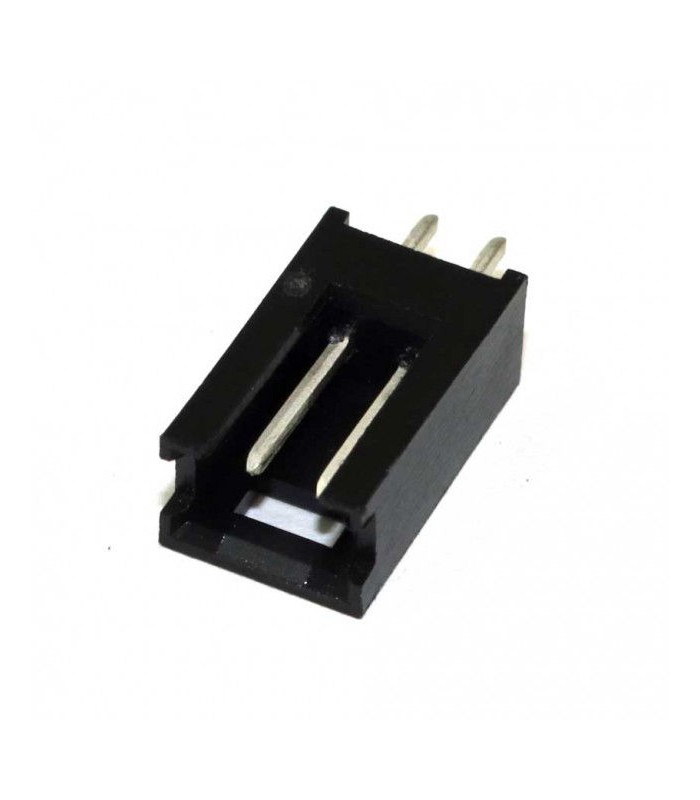

Modu II male connector 2 ways PCB

Errebi code: 20162
Producer code: 254702WV203
Producer: Excon
Read moreShow less
€0.16 (tax excl.)
€0.20 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
40 €0.16 €1.56
60 €0.15 €2.93
100 €0.13 €6.83
260 €0.11 €22.84
500 €0.10 €48.80
1000 €0.09 €107.36
Available in stock 499 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTMD2M2VCS
Brand:
Excon
Add to wishlist
Description

The 254702WV203 connector is a printed circuit board (PCB) connector designed to ensure contact stability, mechanical safety and electrical continuity in industrial and electronic applications.
It is particularly suitable for systems requiring stable PCB connections, easy assembly and long operating life.
The connector is equipped with metal pins already integrated into the connector body, designed to be soldered directly onto the printed circuit board using a standard soldering process.


Advantages


  • 1) High electrical reliability: stable connections for signals and power supply on PCB.

  • 2) Direct PCB integration: pins already present, no terminals to insert.

  • 3) Mechanical robustness: designed to withstand vibrations and operational stress.

  • 4) Easy assembly: compatible with standard PCB soldering processes.

  • 5) Order and compactness: ideal for electronic boards and modular systems.

    • Technical characteristics


  • Series: Modu II

  • Product type: PCB connector

  • Gender: PCB female

  • Number of contacts: 2

  • Number of rows: 1

  • Pitch: 2.54 mm

  • Color: Black

  • Connector mounting orientation: PCB board

  • Flammability rating: UL94V-0

  • Material: Thermoplastic

  • Maximum operating temperature: +105 °C

  • Minimum operating temperature: -40 °C

  • Current rating: 3 A

  • Rated voltage: 250 V

    • Read moreShow less
    Product Details
    RBCTMD2M2VCS

    Data sheet

    Product type
    Connector
    Serie
    Modu II
    Amperage
    3A
    Material
    Plastic
    Color
    Black
    Operating temperature
    -40°C to +105°C
    Dimensions
    5,0x7,7x16,10 (L x W x H)
    Flammability
    94V-0
    Voltage
    250V
    Contact material
    Phosphor Bronze
    Mounting
    Printed circuit
    Kind
    Female + male terminal
    Number of poles
    2
    Number of rows
    1
    Pitch
    2.54 mm
    Orientation
    180°
    Contact plating
    Tin
    Minimum order quantity
    20
    Unit Type
    pieces
    Attachments
    020162_001_DATASHEET.pdf
    Download (88.32KB)
