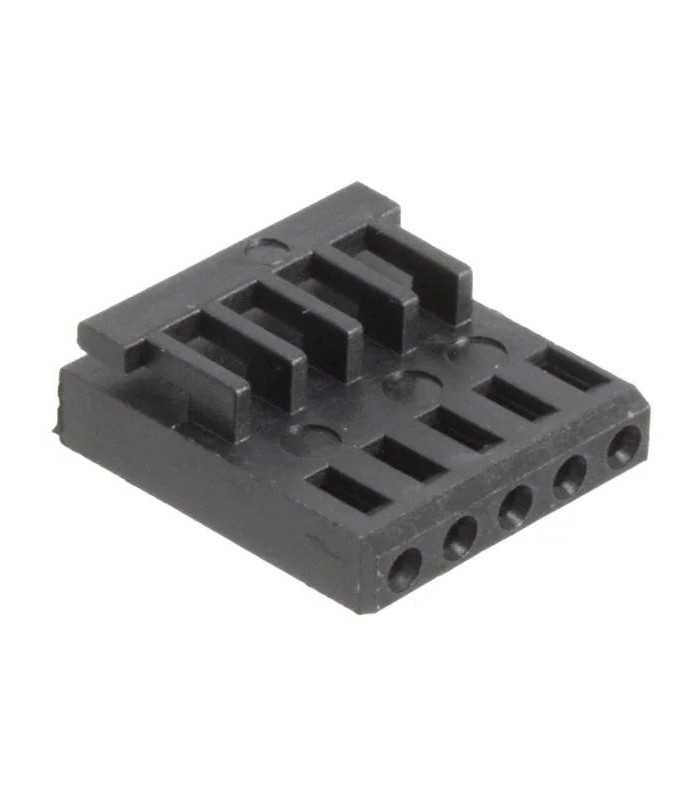

Modu IV Connectors female 5 way

Product type features:
- Connector Product Type: Housing
- Connector and housing type: Socket
- Connector system: wire-to-board
- The connector and the contact end with: wire and cable

Configuration features:
- Number of positions: 5
- Number of lines: 1

electrical characteristics:
- Operating voltage (VAC): 250

Contact characteristics:
- Contact type: socket
- Rated contact current (max) A (A): 3

Termination functions:
- Wire and cable termination method: Crimping

Mechanical attack:
- Anti-tear: with
- Coupling retention: without
- Connector Mounting Type: Cable Mount (Free Hanging)

Housing features
- Housing material P: PBT GF
- Centerline (pitch): 2.54 mm [.1 in]
- Housing color: black
- Housing inlet configuration: both ends closed

Dimensions:
- Connector height (mm): 14.2
- Row-to-row spacing: 2.54 mm [.1 in]
- Connector connector length (mm): 12.7

Terms of use:
- Operating temperature range: -65 - 105 ° C [-85 - 221 ° F]
