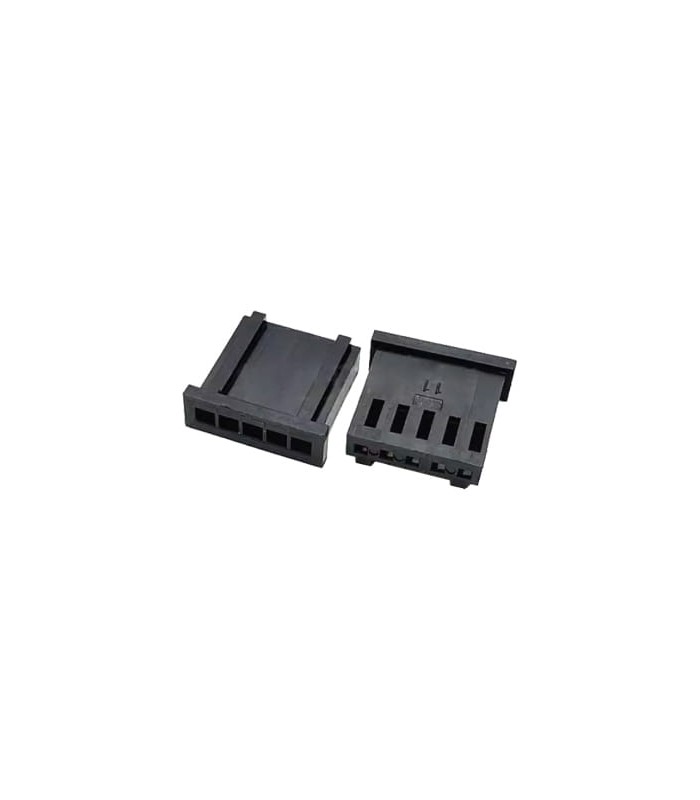

Modu II Connectors female 5 way

Modu II Connectors female 5 way

Errebi code: 21746
Producer code: 254705HA203
Producer: Excon
Read moreShow less
€0.27 (tax excl.)
€0.33 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.30 €0.33
25 €0.26 €1.65
50 €0.25 €4.12
100 €0.21 €11.53
250 €0.18 €37.06
500 €0.16 €82.35
1000 €0.15 €181.17
Available in stock 1020 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMD2F5V
Brand:
Excon
Add to wishlist
Description

The EXCON 254705HA203 connector is part of the 2547 series, a 5-pin female connector designed to ensure stable, reliable, and durable electrical connections in industrial, electronic, and automation applications.


The technical thermoplastic body offers excellent resistance to heat, mechanical stress, and environmental factors, maintaining shape and efficiency even after numerous connection and disconnection cycles.


Main advantages


  • 1) Electrical reliability: stable contacts over time, resistant to vibration and micro-movements.

  • 2) Compactness: reduced 2.54 mm pitch, ideal for limited spaces and miniaturized circuits.

  • 3) Versatility: compatible with numerous standard connectors and PCB boards.

  • 4) Long lifespan: high-quality materials ensure extended operating life.

  • 5) Easy installation: simple board or cable mounting with precise locking systems.

    • Typical applications


    The connector can be used for:


  • 1) Electronic devices and PCB control boards.

  • 2) Industrial automation and control systems.

  • 3) Measuring instruments and monitoring equipment.

  • 4) Household appliances and small electrical devices.

  • 5) Lighting systems, sensors, and signal modules.

    • Technical specifications


  • Series: 2547

  • Gender: female

  • Number of pins: 5 pins

  • Number of rows: 1 row

  • Pitch: 2.54 mm

  • Rated voltage: 250 V

  • Rated current: 3 A

  • Contact material: tinned copper

  • Material: thermoplastic

  • Flammability: UL94V-0

  • Operating temperature: -40 °C / +105 °C

  • Mounting: on cable

  • Color: black

  • Weight: 0.50 g

    • Read moreShow less
    Product Details
    RBCTMD2F5V

    Data sheet

    Product type
    Connector body
    Serie
    Modu II
    Amperage
    3A
    Material
    Thermoplastic
    Color
    Black
    Operating temperature
    -40°C to +105°C
    Flammability
    94V-1
    Voltage
    250V
    Mounting
    On cable
    Wire range
    26 - 22 AWG
    Kind
    Female
    Number of poles
    5
    Number of rows
    1
    Pitch
    2.54 mm
    Orientation
    180°
    Minimum order quantity
    5
    Unit Type
    pieces
    Attachments
    021746_001_DATASHEET.pdf
    Download (88.08KB)
