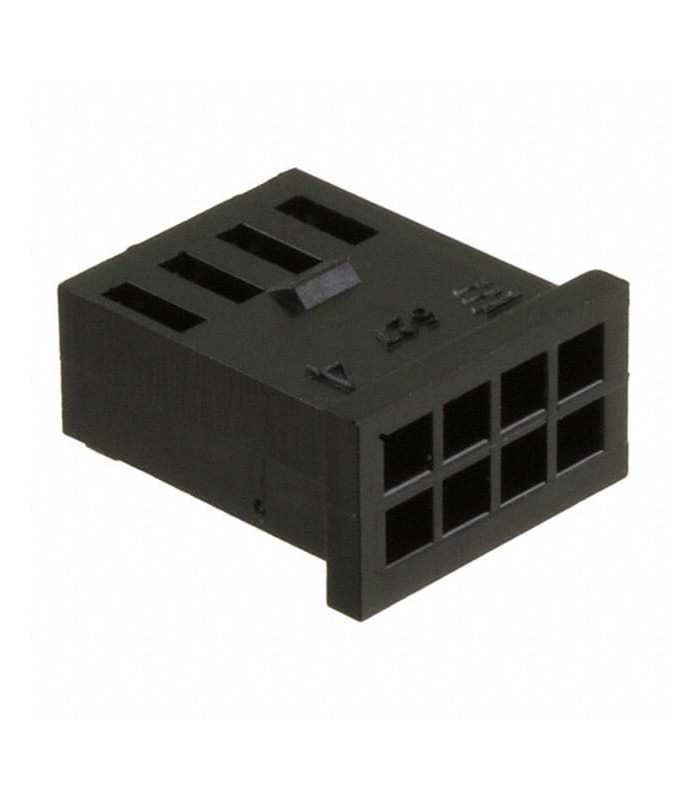

Modu II Connectors female 4x2 way

The female connector of the Modu II family is designed to create board-to-wire connections with a 2.54 mm pitch in signal applications.

It is the classic choice when reliable, repeatable and standardized connections are required.

Main benefits

• Industry standard, 2.54 mm pitch, broad compatibility with the Modu II family.


• 8 positions, high density in a compact footprint for tidier, modular harnesses.


• Rugged housing: black body for crimp contacts with snap-in retention, designed for repeated assembly and maintenance.

Typical applications

• Signal harnesses between board-to-board / board-to-panel in industrial electronics and instrumentation.


• Light automation, testing and validation, development/prototyping harnesses on boards.


• Embedded systems, measuring equipment, Ramp;D labs where modular connections are needed.

Main technical data

Series: Modu II
Product type: connector housing
Number of positions: 8
Number of rows: 2
Pitch: 2.54 mm
Mounting: cable (free-hanging)
Color: black
Max operating temperature: +80 °C
Min operating temperature: -40 °C
Housing material: thermoplastic (TP)
