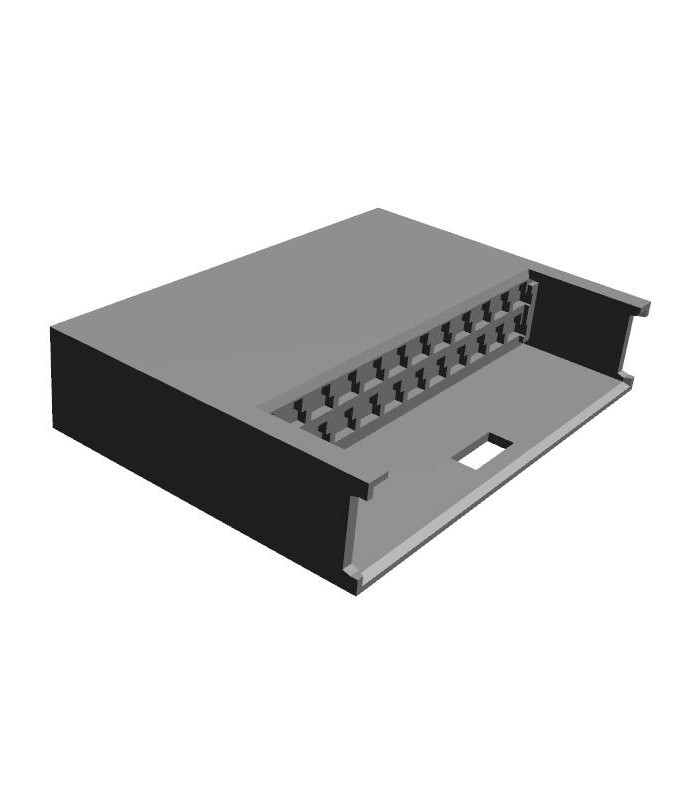

Connectors Modu II Male 12X2 Way

Errebi code: 18290
Producer code: 280640
Producer: TE/Connectivity
Read moreShow less
€1.84 (tax excl.)
€2.24

Discounts for quantities

Quantity Unit price You Save
10 €2.02 €2.21
25 €1.80 €11.20
50 €1.68 €28.06
100 €1.46 €78.79
250 €1.24 €252.26
500 €1.12 €561.20
1000 €1.01 €1,235.76
Available in stock 504 Items
Condition
New
Reference:
RBCTMD2M12X2V
Add to wishlist
Description
Product Type Features
Row-to-Row Spacing: 2.54mm [.1 in]
Connector & Contact Terminates To: Wire & Cable
Glow Wire Rating: Standard Part - Not Glow Wire
Connector : Housing
Connector Style: Plug
Product Type: Connector

Configuration Features
Number of Rows: 2
Number of Positions: 24

Contact Features
Contact Layout: Inline
Contact Type: Pin

Termination Features
Termination Method to Wire/Cable: Crimp

Mechanical Attachment
Mating Retention: With
Mating Retention Type: Lock
Mating Connector Lock: Without
Mating Alignment: Without
Panel Mount Retention: Without
Mating Alignment Type: Polarization
PCB Mount Retention: Without

Housing Features
Centerline (Pitch): 2.54 mm [.1 in]
Housing Material: Thermoplastic
Housing Color: Black
Housing Configuration: Both Ends Closed

Dimensions
Length (mm): 12.5
Height: 3.1 mm [.12 in]

Industry Standards
UL Flammability Rating: UL 94V-1
Read moreShow less
Product Details
RBCTMD2M12X2V

Data sheet

Product type
Connector body
Serie
Modu II
Material
Thermoplastic
Color
Black
Operating temperature
-40°C a +80°C
Dimensions
13,70x32,80x4,80 (L x W x H)
Flammability
94V-0
Mounting
On cable
Kind
Male
Number of poles
24
Number of rows
2
Pitch
2.54 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece

Specific References

EAN13
2050001881304
