Product Type Features
Row-to-Row Spacing: 2.54mm [.1 in]
Connector & Contact Terminates To: Wire & Cable
Glow Wire Rating: Standard Part - Not Glow Wire

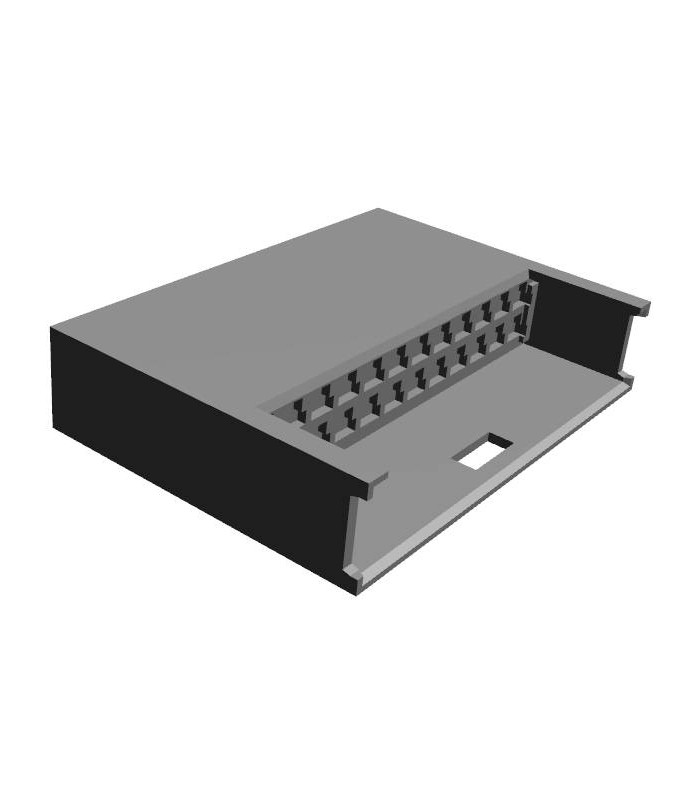

Connector : Housing
Connector Style: Plug
Product Type: Connector
Configuration Features
Number of Rows: 2
Number of Positions: 24
Contact Features
Contact Layout: Inline
Contact Type: Pin
Termination Features
Termination Method to Wire/Cable: Crimp
Mechanical Attachment
Mating Retention: With
Mating Retention Type: Lock
Mating Connector Lock: Without
Mating Alignment: Without
Panel Mount Retention: Without
Mating Alignment Type: Polarization
PCB Mount Retention: Without
Housing Features
Centerline (Pitch): 2.54 mm [.1 in]
Housing Material: Thermoplastic
Housing Color: Black
Housing Configuration: Both Ends Closed
Dimensions
Length (mm): 12.5
Height: 3.1 mm [.12 in]
Industry Standards
UL Flammability Rating: UL 94V-1
