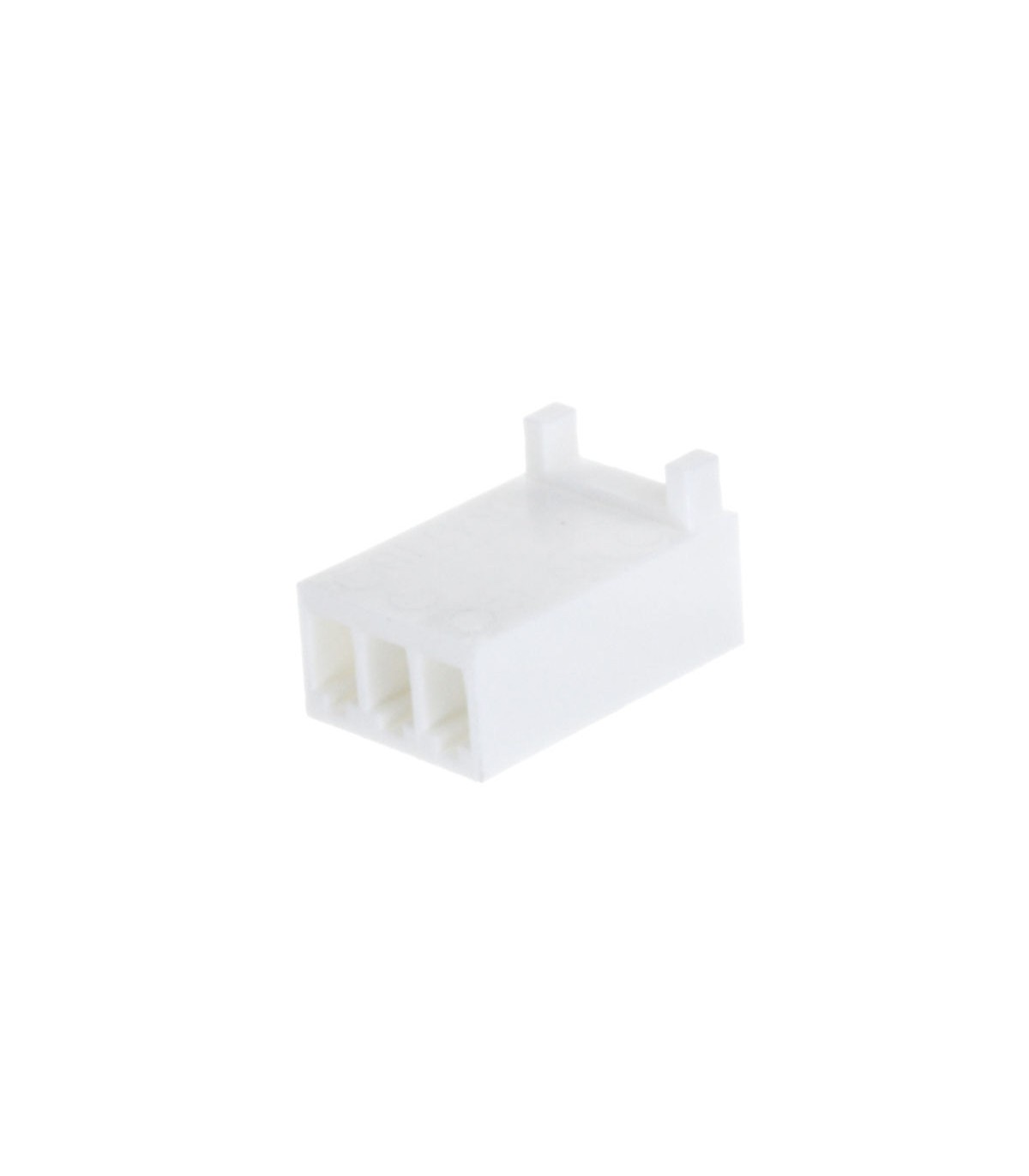

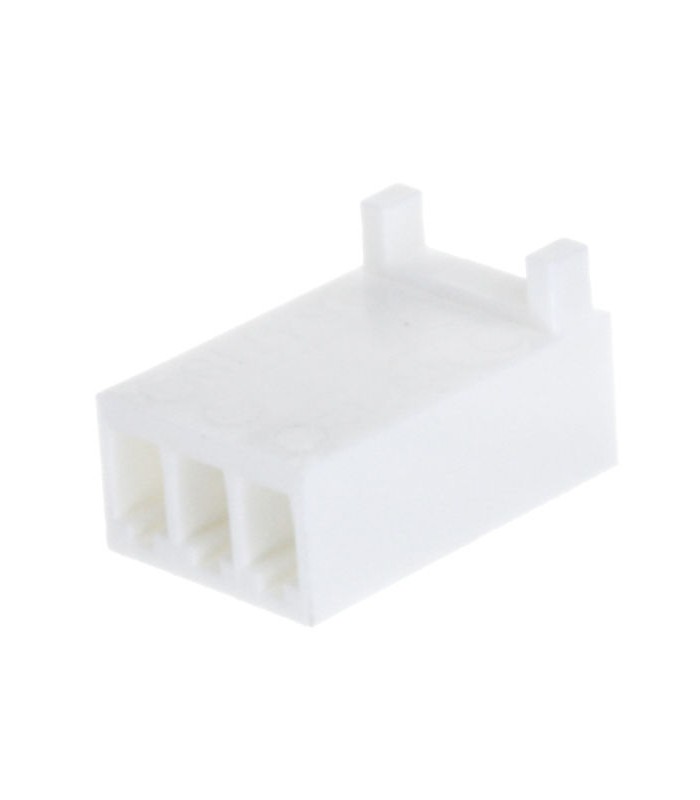

Connector KK 254 Series 6471 female 3 Way

The 22-01-2035 connector is a 2.54 mm pitch connector belonging to the 6471 series.
It is designed to create safe electrical connections that are easily interchangeable between boards,
devices, and electronic modules.

Function

The connector is intended for use with crimped terminals and can be mounted on PCBs or wiring harnesses
through female contacts inserted into the nylon housing.
The snap-lock mechanism ensures a stable connection to the female counterpart, preventing accidental disconnections
caused by vibrations or mechanical stress.

Main advantages

• Long-term reliability: ensures stable and durable contact even after numerous connection and disconnection cycles.


• Versatility of use: suitable for PCB applications, internal wiring of electronic devices, power supply or control signals.


• Compactness: thanks to the reduced 2.54 mm pitch, it allows high connection density in limited spaces.


• Ease of assembly: the snap system simplifies assembly and reduces installation time.

Typical applications

• Consumer electronics: internal connections of boards, sensors and power supplies in audio/video devices or small appliances.


• Industrial automation: wiring of control modules, sensors and interface devices.


• IT and telecommunications systems: interconnection between logic boards, fans, LEDs, control units or signal modules.

Operating conditions

The connector is made of nylon 6/6 UL 94V-0, a self-extinguishing and heat-resistant material
that ensures dimensional stability and electrical safety even in environments with significant temperature variations.
It is designed to operate in a temperature range between -40 °C and +105 °C, providing
optimal insulation even in the presence of humidity or external agents.
The connection is made by crimping the terminals onto cables with a section of 22 - 30 AWG.
