Automatic cable stripping and crimping machine for insulated ferrules (0.15 - 4 mmq)

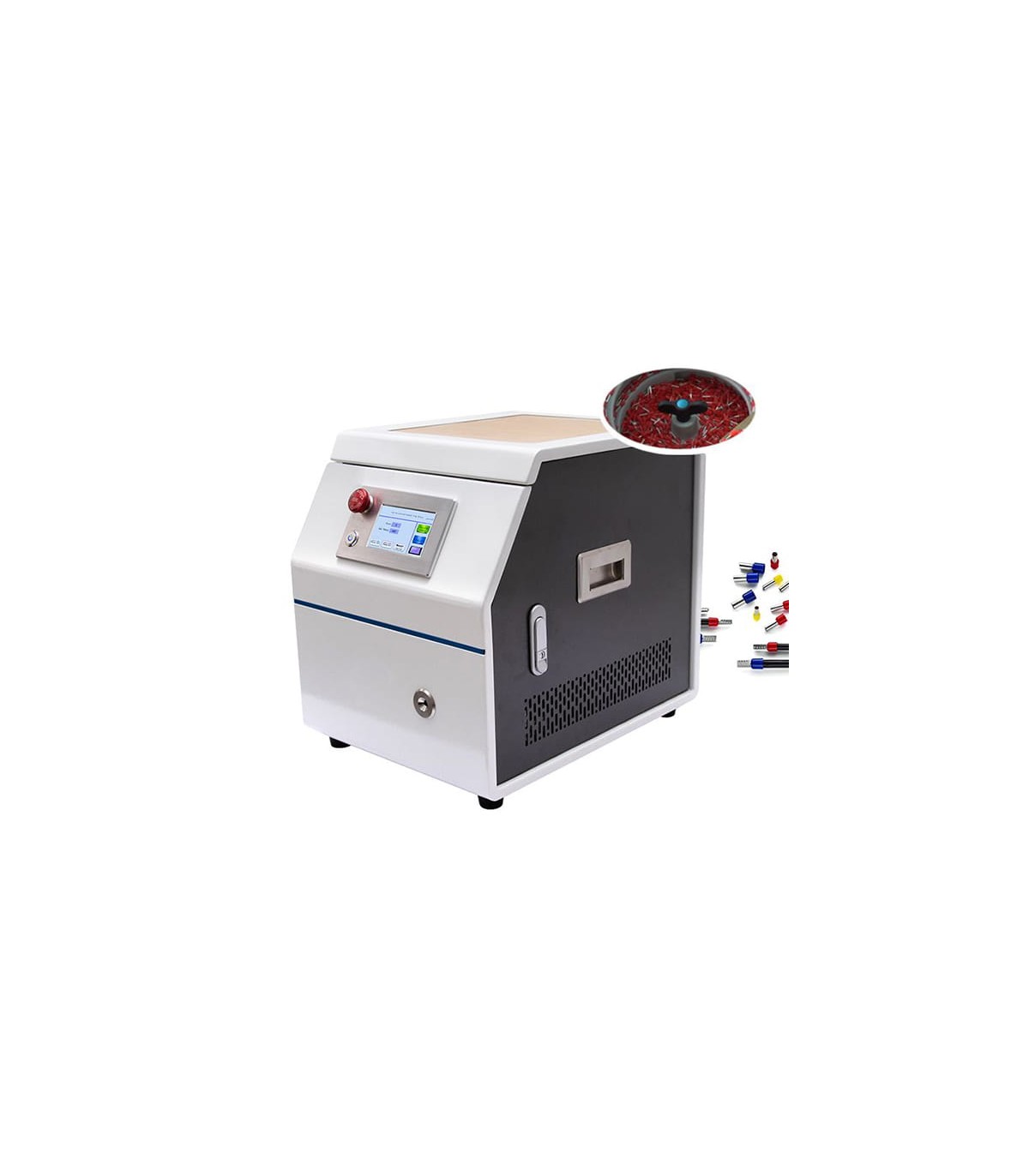

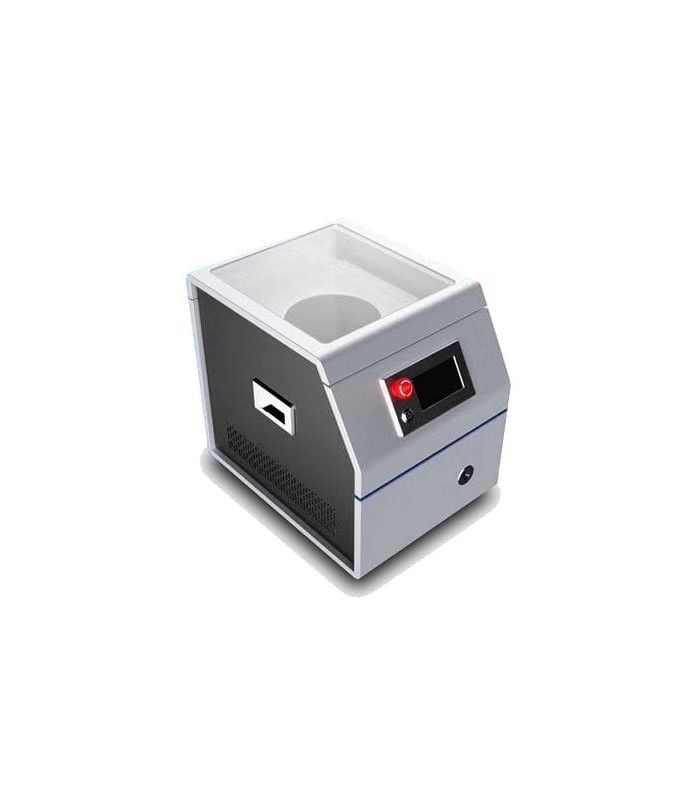

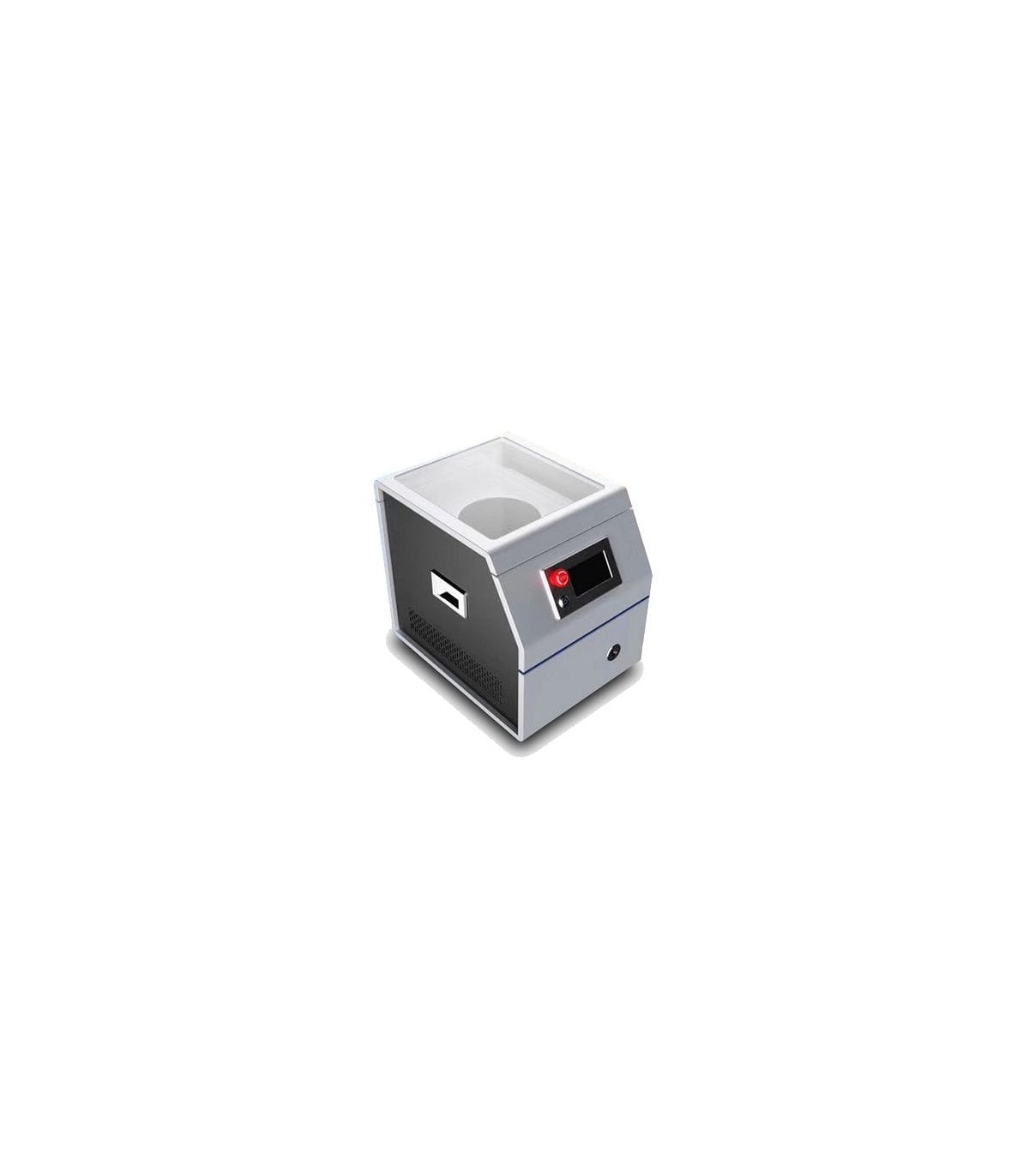

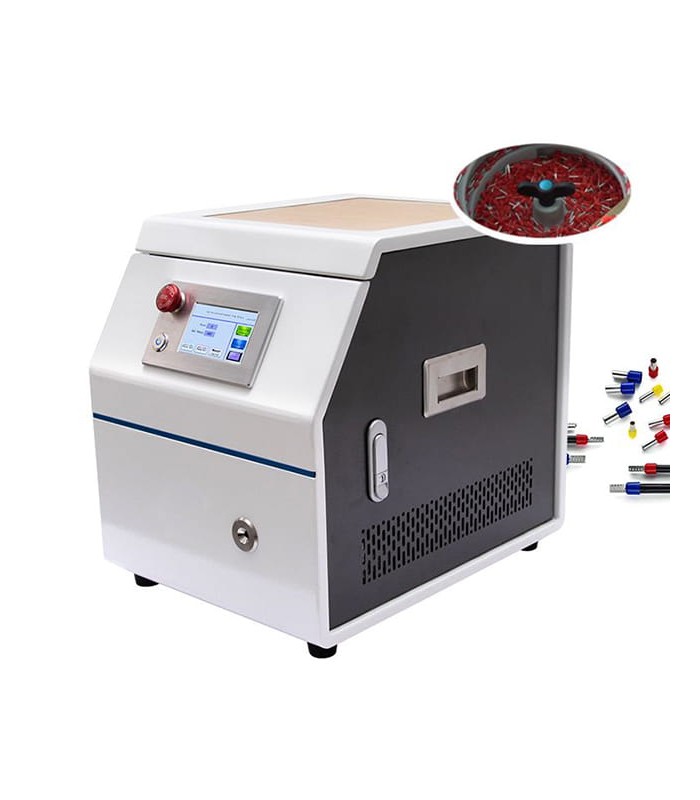

The RBEW5010A is a semi-automatic machine for crimping insulated ferrules, designed for wiring harness lines with requirements for speed, repeatability, and process quality.

It integrates an intuitive operator interface and process controls to standardize results even on high volumes.

How it works

The operator inserts the stripped cable into the loading area and positions the insulated ferrule in the tooling.

The machine performs the controlled closing of the ferrule, monitoring the crimping position via servo-motor actuation.

Typical applications

1) Industrial and civil wiring harnesses with insulated terminals.

2) Electrical panels, automation and control systems.

3) Assemblies for renewable energy (photovoltaics, DC storage).

4) Pre-assembly departments, bench stations, or assembly cells.

Technical features

Model: RBEW5010A

Cable cross-section (mm²): 0.50 - 4.00 mm²

Cable cross-section (AWG): 20 - 12 AWG

Max stripping length: 17 mm

Productivity: 900 - 1200 pcs/hour

Production cycle time: 2.8s/cable

Working temperature: 10 - 25 °C

Drive: servo motor

Air pressure: 0.6 - 0.8 MPa

Voltage: AC 110/220 V - 50/60 Hz

Interface: digital panel

Weight: 40 kg

Dimensions: 350 × 450 × 400 mm
