€0.81
(tax excl.)
€0.99
Errebi code: 54572Producer code: 350781-1Producer: TE/connectivity

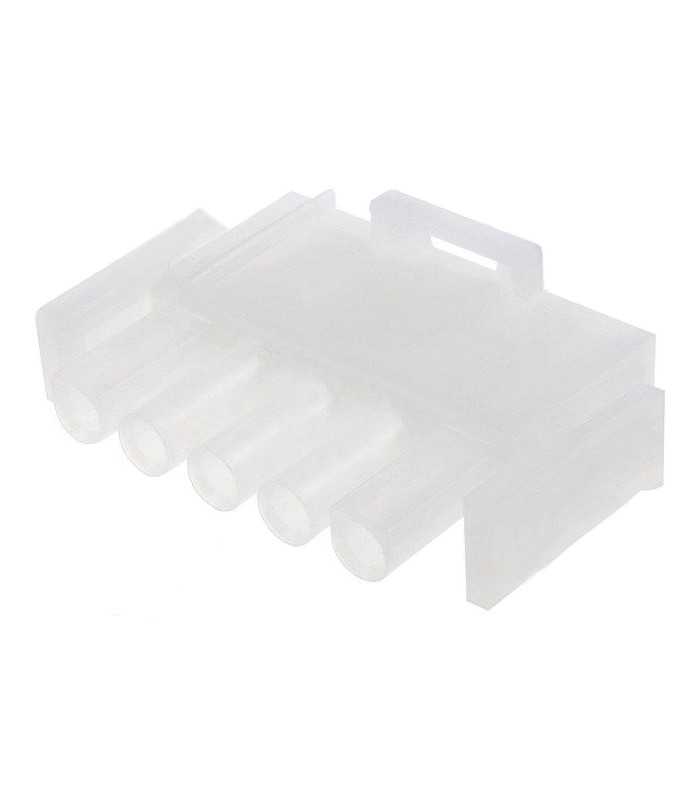

Mate n lok connector male 5 way
Errebi code: 13576
Producer code: Cross Reference 1-480763-0
Producer: Cross Reference TE/connectivity
Read moreShow lessProducer code: Cross Reference 1-480763-0
Producer: Cross Reference TE/connectivity
€0.33
(tax excl.)
€0.40
Condition
New product
Reference:
RBCTML5VM
Brand:
Series: Universal Mate-N-Lok
No. of Positions: 5
Pitch Spacing: 6.35mm
For Use With: Universal MATE-N-LOK Connectors
Colour: Clear
Contact Resistance: 3.5mohm
Current rating: 15A
Dielectric Strength VAC: 5000V
Dielectric Strength VDC: 10000V
Flammability rating: UL94V-2
Gender: Plug
Insulation Resistance: 1000Mohm
Material: Nylon
No. of Mating Cycles: 50
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -55°C
Voltage Rating V AC: 600V
Working Voltage: 600V
Read moreShow less
No. of Positions: 5
Pitch Spacing: 6.35mm
For Use With: Universal MATE-N-LOK Connectors
Colour: Clear
Contact Resistance: 3.5mohm
Current rating: 15A
Dielectric Strength VAC: 5000V
Dielectric Strength VDC: 10000V
Flammability rating: UL94V-2
Gender: Plug
Insulation Resistance: 1000Mohm
Material: Nylon
No. of Mating Cycles: 50
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -55°C
Voltage Rating V AC: 600V
Working Voltage: 600V
RBCTML5VM
Data sheet
- Product type
- Connector body
- Serie
- Universal MATE-N-LOK
- Amperage
- 15A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -55°C a +105°C
- Dimensions
- 27,43x33,02x13,46 (L x W x H)
- Flammability
- 94V-2
- Voltage
- 600V
- Mounting
- On panel
- Kind
- Male
- Number of poles
- 5
- Number of rows
- 1
- Pitch
- 6.35 mm
- Orientation
- 90°
- Minimum order quantity
- 5
- Unit Type
- pieces
