€0.59
(tax excl.)
€0.72
(tax incl.)
Errebi code: 25460Producer code: 350767-1 Producer: TE/connectivity

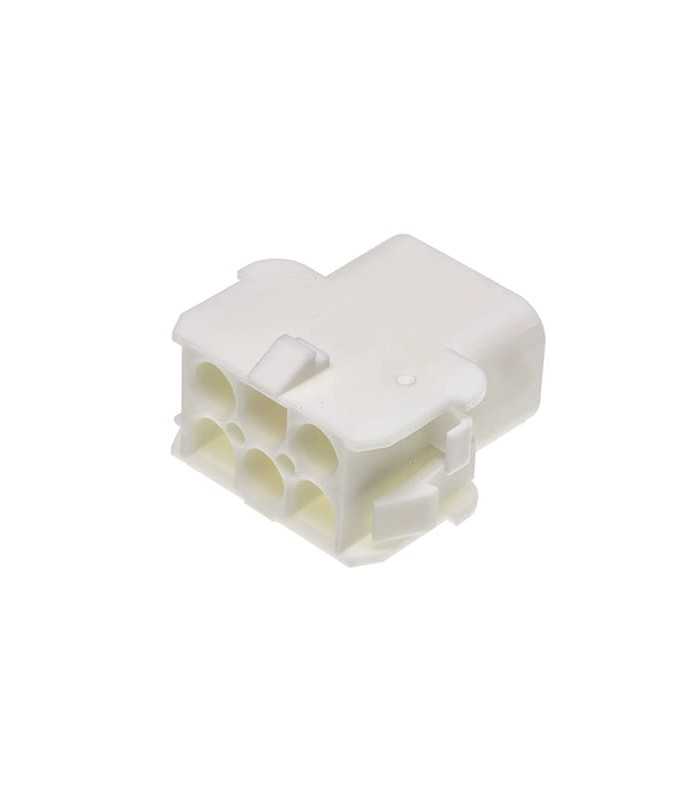

Mate n lok connector female 6 way
Errebi code: 54572
Producer code: 350781-1
Producer: TE/connectivity
Read moreShow lessProducer code: 350781-1
Producer: TE/connectivity
€0.83
(tax excl.)
€1.01
(tax incl.)
Condition
New
Reference:
RBCTML6VFV0T
Brand:
Add to wishlist
Series: Universal Mate-N-Lok
No. of Positions: 6
Pitch Spacing: 6.35mm
For Use With: Universal MATE-N-LOK Connectors
Approval Bodies: CSA, UL, VDE
Colour: Clear
Connector Body Material: Nylon (Polyamide)
Contact Resistance: 3.5mohm
Current rating: 15A
Dielectric Strength VAC: 5000V
Dielectric Strength VDC: 10000V
Flammability rating: UL94V-2
Gender: Receptacle
Insulation Resistance: 1000Mohm
Material: Nylon
No. of Mating Cycles: 50
No. of Rows: 1
Operating Temperature Max: 125°C
Operating Temperature Min: -55°C
Panel Thickness Max: 2.29mm
Panel Thickness Min: 0.76mm
Voltage Rating V AC: 600V
Read moreShow less
No. of Positions: 6
Pitch Spacing: 6.35mm
For Use With: Universal MATE-N-LOK Connectors
Approval Bodies: CSA, UL, VDE
Colour: Clear
Connector Body Material: Nylon (Polyamide)
Contact Resistance: 3.5mohm
Current rating: 15A
Dielectric Strength VAC: 5000V
Dielectric Strength VDC: 10000V
Flammability rating: UL94V-2
Gender: Receptacle
Insulation Resistance: 1000Mohm
Material: Nylon
No. of Mating Cycles: 50
No. of Rows: 1
Operating Temperature Max: 125°C
Operating Temperature Min: -55°C
Panel Thickness Max: 2.29mm
Panel Thickness Min: 0.76mm
Voltage Rating V AC: 600V
RBCTML6VFV0T
Data sheet
- Product type
- Connector body
- Serie
- Universal MATE-N-LOK
- Amperage
- 15A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -55°C a +105°C
- Dimensions
- 27,43x20,32x19,97 (L x W x H)
- Flammability
- 94V-2
- Voltage
- 600V
- Mounting
- On cable
- Kind
- Female
- Number of poles
- 6
- Number of rows
- 2
- Pitch
- 6.35 mm
- Orientation
- 90°
- Minimum order quantity
- 5
- Unit Type
- pieces
