€0.59
(tax excl.)
€0.72
(tax incl.)
Errebi code: 25460Producer code: 350767-1 Producer: TE/connectivity

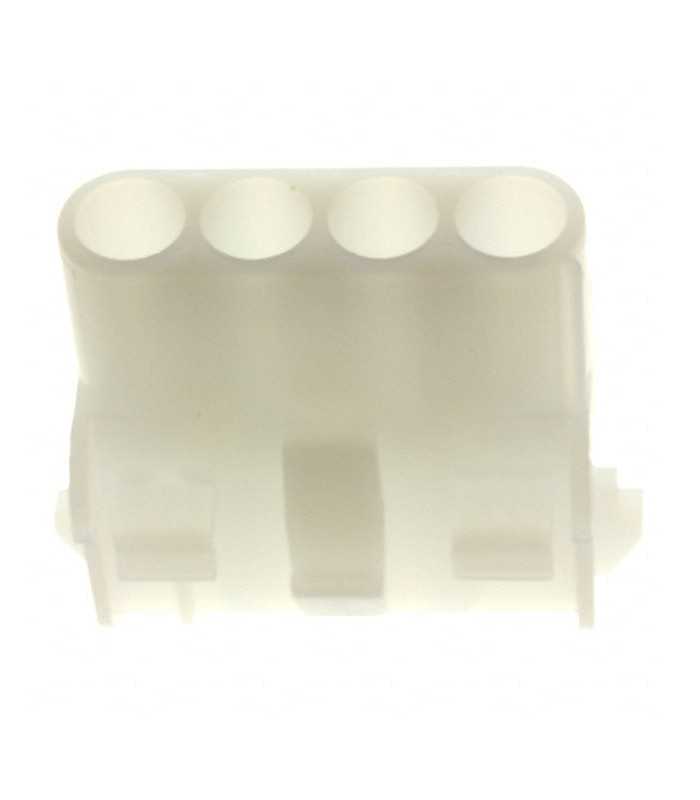

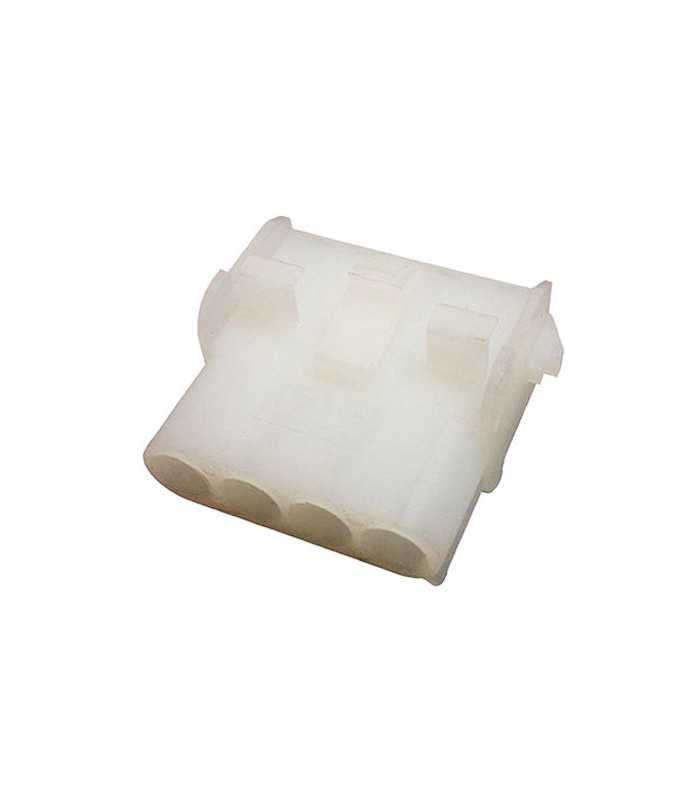

Mate n lok connector female 4 way
Errebi code: 13570
Producer code: Cross Reference 1-480703-0
Producer: Cross Reference TE/connectivity
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: Cross Reference 1-480703-0
Producer: Cross Reference TE/connectivity
Please note: the item is a reproduction of the original, please contact us for more information.
€0.41
(tax excl.)
€0.50
(tax incl.)
Condition
New
Reference:
RBCTML4VF
Brand:
Add to wishlist
Series: Universal Mate-N-Lok
No. of Positions: 4
Pitch Spacing: 6.35mm
For Use With: Universal MATE-N-LOK Connectors
Approval Bodies: CSA, UL
Colour: Natural
Connector Body Material: Nylon (Polyamide)
Flammability rating: UL94V-2
Gender: Receptacle
No. of Rows: 1
Operating Temperature Max: 125°C
Operating Temperature Min: -55°C
Panel Thickness Max: 2.29mm
Panel Thickness Min: 0.76mm
Voltage Rating V AC: 600V
Read moreShow less
No. of Positions: 4
Pitch Spacing: 6.35mm
For Use With: Universal MATE-N-LOK Connectors
Approval Bodies: CSA, UL
Colour: Natural
Connector Body Material: Nylon (Polyamide)
Flammability rating: UL94V-2
Gender: Receptacle
No. of Rows: 1
Operating Temperature Max: 125°C
Operating Temperature Min: -55°C
Panel Thickness Max: 2.29mm
Panel Thickness Min: 0.76mm
Voltage Rating V AC: 600V
RBCTML4VF
Data sheet
- Product type
- Connector body
- Serie
- Universal MATE-N-LOK
- Amperage
- 15A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -55°C to +125°C
- Dimensions
- 27,43x27,10x13,46 (L x W x H)
- Flammability
- 94V-2
- Voltage
- 600V
- Mounting
- On panel
- Kind
- Female
- Number of poles
- 4
- Number of rows
- 1
- Pitch
- 6.35 mm
- Orientation
- 90°
- Minimum order quantity
- 5
- Unit Type
- pieces
