RBCTML15VM

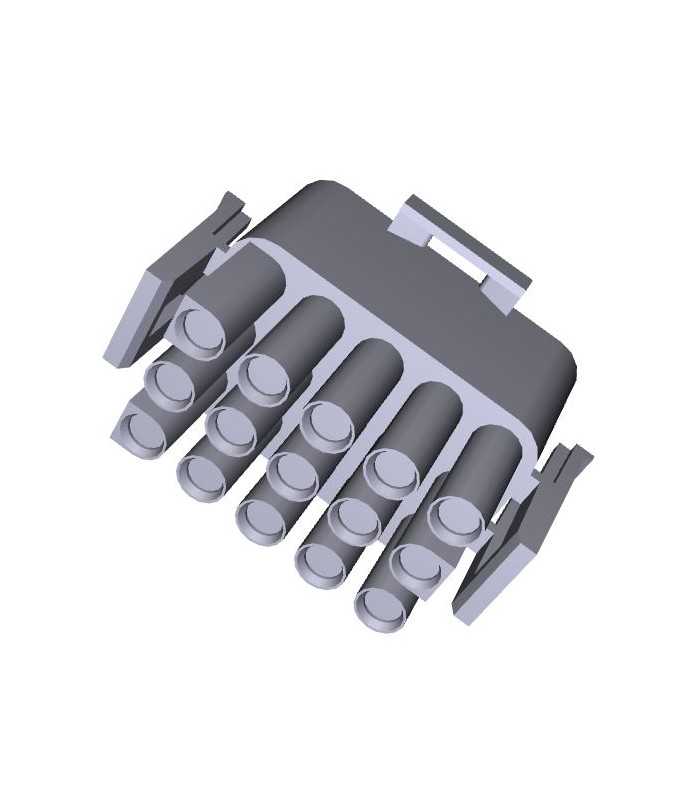

Mate n lok connector male 15 way

Errebi code: 13578
Producer code: Cross Reference 1-480710
Producer: Cross Reference TE/connectivity
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.74 (tax excl.)
€0.90 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
2 €0.90 €0.00
10 €0.81 €0.89
26 €0.72 €4.68
50 €0.68 €11.29
100 €0.59 €31.69
250 €0.50 €101.45
500 €0.45 €225.70
1000 €0.41 €496.99
Available in stock 585 Items
The minimum purchase order quantity for the product is 2.
Condition
New
Reference:
RBCTML15VM
Brand:
ErreBi Group
Add to wishlist
Description
Series: Universal Mate-N-Lok
No. of Positions: 15
Pitch Spacing: 6.35mm
For Use With: Universal MATE-N-LOK Connectors
Colour: Clear
Contact Resistance: 3.5mohm
Current rating: 15A
Dielectric Strength VAC: 5000V
Dielectric Strength VDC: 10000V
Flammability rating: UL94V-2
Gender: Plug
Insulation Resistance: 1000Mohm
Material: Nylon
No. of Mating Cycles: 50
No. of Rows: 3
Operating Temperature Max: 105°C
Operating Temperature Min: -55°C
Voltage Rating V AC: 600V
Working Voltage: 600V
Read moreShow less
Product Details
RBCTML15VM

Data sheet

Product type
Connector body
Serie
Universal MATE-N-LOK
Amperage
15A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-55°C a +105°C
Dimensions
27,43x33,02x20,32 (L x W x H)
Voltage
600V
Mounting
For cable
Kind
Male
Number of poles
15
Number of rows
3
Pitch
6.35 mm
Orientation
180°
Minimum order quantity
2
Unit Type
pieces
Attachments
013578_001_3D .pdf
Download (335.73KB)
013578_002_Drawing.pdf
Download (548.31KB)
