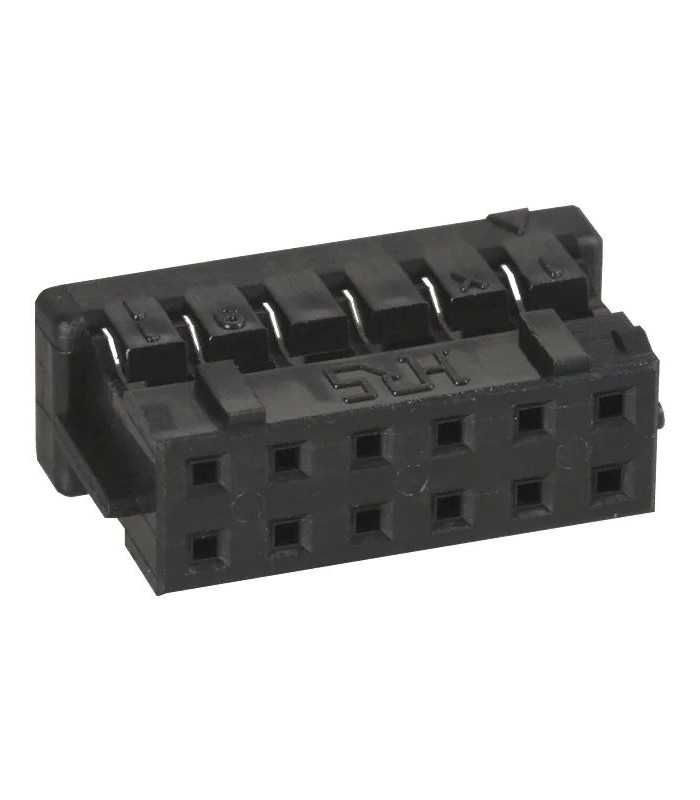

Connector DF11 Male 6x2 Way
Errebi code: 26547
Producer code: DF11-12DS-2C
Producer: Hirose
Read moreShow lessProducer code: DF11-12DS-2C
Producer: Hirose
€0.37
(tax excl.)
€0.45
(tax incl.)
Condition
New
Reference:
RBCTDF11PF6X2V
Brand:
Add to wishlist
Basic Specifications
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL
- Number of Positions: 12
- Number of Rows (Interface): 2
- Contact Pitch: 2.0 mm
- Connector Length: 14.0 mm
- Connector Width: 5.0 mm
- Connector Height: 7.3 mm
- Staggered Lead: No
- Housing Color: Black
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 30
- Recommended Max. Wire Size (AWG): 22
- Operating Temperature: -40°C to 85°C
Mechanical Specifications
- Locking Style: Friction
Electrical Specifications
- Rated Current: 2.0 A
- Rated Voltage (AC): AC 250.0 V
- Rated Voltage (DC): DC 250.0 V
- Withstanding Voltage: 650 V Max.
Read moreShow less
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL
- Number of Positions: 12
- Number of Rows (Interface): 2
- Contact Pitch: 2.0 mm
- Connector Length: 14.0 mm
- Connector Width: 5.0 mm
- Connector Height: 7.3 mm
- Staggered Lead: No
- Housing Color: Black
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 30
- Recommended Max. Wire Size (AWG): 22
- Operating Temperature: -40°C to 85°C
Mechanical Specifications
- Locking Style: Friction
Electrical Specifications
- Rated Current: 2.0 A
- Rated Voltage (AC): AC 250.0 V
- Rated Voltage (DC): DC 250.0 V
- Withstanding Voltage: 650 V Max.
RBCTDF11PF6X2V
Data sheet
- Product type
- Connector body
- Serie
- DF11
- Amperage
- 2A
- Material
- PA (Polyamide, Nylon)
- Color
- Black
- Operating temperature
- -40°C a +85°C
- Dimensions
- 14,00x5,00x7,30 (L x W x H)
- Voltage
- 250V
- Mounting
- On cable
- Wire range
- 30 - 22 AWG
- Kind
- Male
- Number of poles
- 12
- Number of rows
- 2
- Pitch
- 2.00 mm
- Orientation
- 180°
- Minimum order quantity
- 5
- Unit Type
- pieces
