RBCTDF11PF15X2VAP

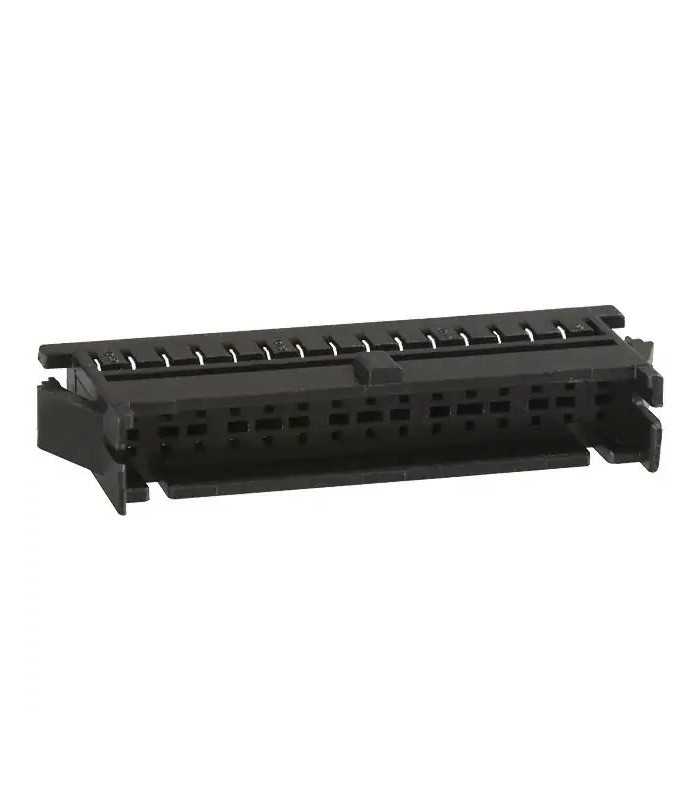

Connector DF11 Female 15x2 Way with flap for fixing panel

Errebi code: 47712
Producer code: DF11-30DEP-2C
Producer: Hirose
Read moreShow less
€2.13 (tax excl.)
€2.60 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.34 €2.60
25 €2.08 €12.99
50 €1.95 €32.48
100 €1.69 €90.95
250 €1.43 €292.34
500 €1.30 €649.65
1000 €1.17 €1,429.23
Last items in stock 1 Item
Condition
New
Reference:
RBCTDF11PF15X2VAP
Brand:
Hirose
Add to wishlist
Description
Basic Specifications
- Connector Type: In-line plug
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL
- Number of Positions: 30
- Number of Rows (Interface): 2
- Contact Pitch: 2.0 mm
- Connector Length: 37.0 mm
- Connector Width: 6.09 mm
- Connector Height: 13.0 mm
- Staggered Lead: No
- Housing Color: Black
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 30
- Recommended Max. Wire Size (AWG): 22
- Operating Temperature: -40°C to 85°C

Mechanical Specifications
- Locking Style: Friction

Electrical Specifications
- Rated Current: 2.0 A
- Rated Voltage (AC): AC 250.0 V
- Rated Voltage (DC): DC 250.0 V
- Withstanding Voltage: 650 V Max.
Read moreShow less
Product Details
RBCTDF11PF15X2VAP

Data sheet

Product type
Connector body
Serie
DF11
Amperage
2A
Material
PA (Polyamide, Nylon)
Color
Black
Operating temperature
-40°C a +85°C
Dimensions
37,00x6,09x13,00 (L x W x H)
Voltage
250V
Mounting
On panel
Kind
Female
Number of poles
30
Number of rows
2
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
Attachments
047712_001_3D .zip
Download (467.48KB)
047712_002_Drawing.pdf
Download (148.5KB)
