RBCTDF11PF15X2V

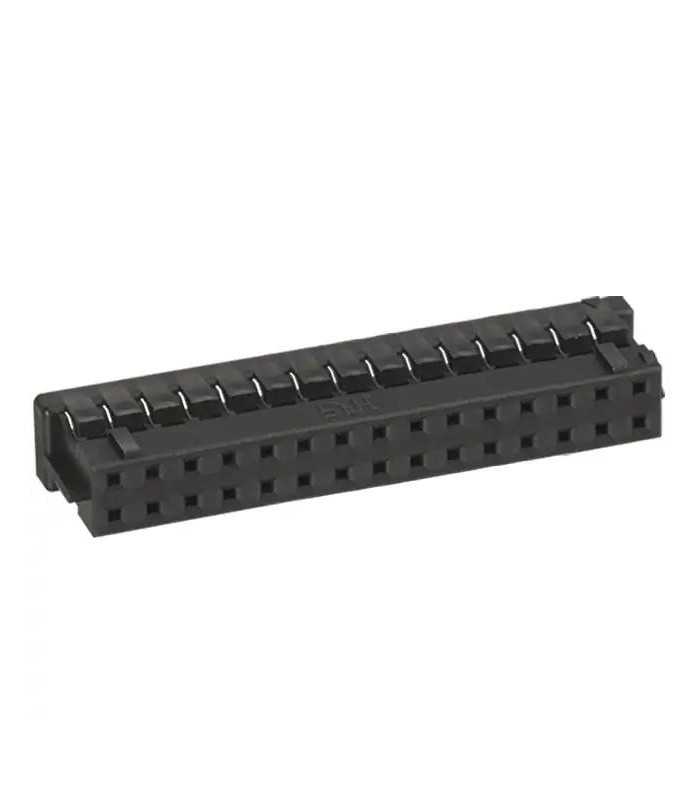

Connector DF11 Male 15x2 Way

Errebi code: 47711
Producer code: DF11-30DS-2C
Producer: Hirose
Read moreShow less
€1.36 (tax excl.)
€1.66 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €1.49 €1.66
25 €1.33 €8.30
50 €1.24 €20.74
100 €1.08 €58.07
250 €0.91 €186.66
500 €0.83 €414.80
1000 €0.75 €912.56
Product available for orders 1 Item
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTDF11PF15X2V
Brand:
Hirose
Add to wishlist
Description
Basic Specifications
- Connector Type: Socket
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL
- Number of Positions: 30
- Number of Rows (Interface): 2
- Contact Pitch: 2.0 mm
- Connector Length: 32.0 mm
- Connector Width: 5.0 mm
- Connector Height: 7.3 mm
- Staggered Lead: No
- Housing Color: Black
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 30
- Recommended Max. Wire Size (AWG): 22
- Operating Temperature: -40°C to 85°C

Mechanical Specifications
- Locking Style: Friction

Electrical Specifications
- Rated Current: 2.0 A
- Rated Voltage (AC): AC 250.0 V
- Rated Voltage (DC): DC 250.0 V
- Withstanding Voltage: 650 V Max.
Read moreShow less
Product Details
RBCTDF11PF15X2V

Data sheet

Product type
Connector body
Serie
DF11
Amperage
2A
Material
PA (Polyamide, Nylon)
Color
Black
Operating temperature
-40°C a +85°C
Dimensions
32,00x5,00x7,30 (L x W x H)
Voltage
250V
Mounting
On cable
Wire range
30 - 22 AWG
Kind
Male
Number of poles
30
Number of rows
2
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
5
Unit Type
pieces
Attachments
047711_001_3D .zip
Download (469.1KB)
047711_002_Drawing.pdf
Download (60.2KB)
