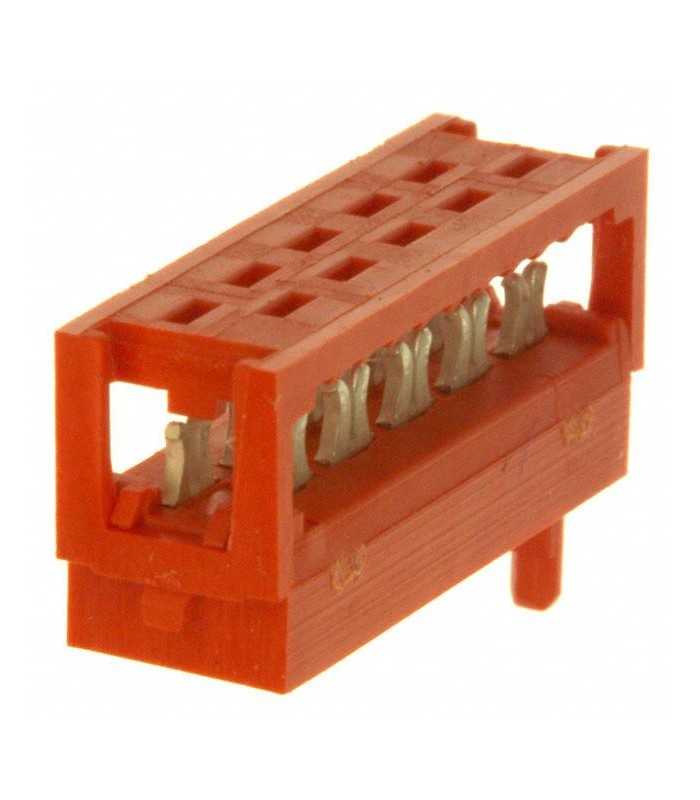

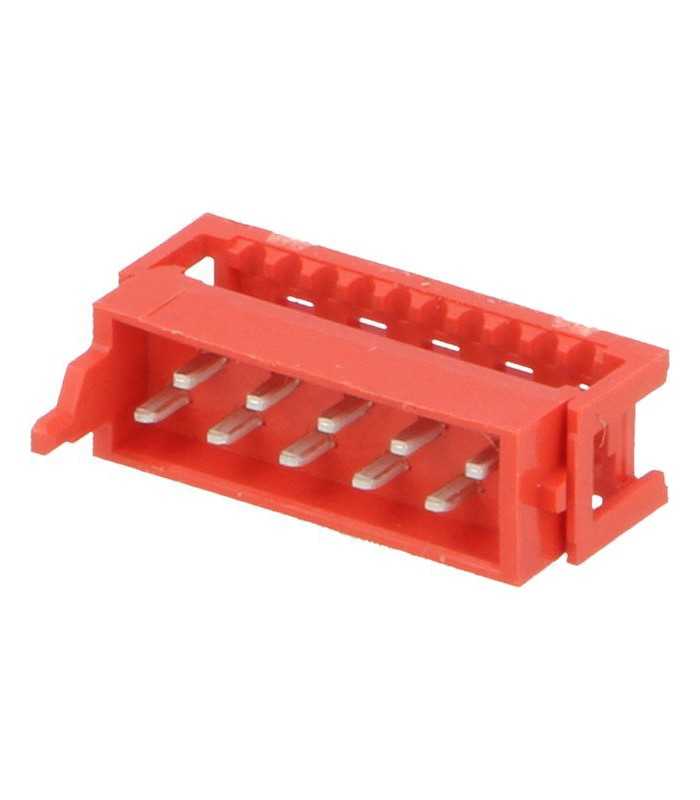

Connector IDC Micro Match Male 10 Way
Errebi code: 20348
Producer code: 1-215083-0
Producer: TE/Connectivity
Read moreShow lessProducer code: 1-215083-0
Producer: TE/Connectivity
€0.53
(tax excl.)
€0.65
(tax incl.)
Condition
New
Reference:
RBIMMM10V
Brand:
Add to wishlist
Mounting Orientation: Vertical
Shrouded: Yes
Connector: Style Plug
Profile: Low
Applies To: Cable
Product Type: Connector
Board Standoff: Without
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Connector System: Wire-to-Board
Ejection Latches: Without
Configuration Features
Number of Positions: 10
Electrical Characteristics
Insulation Resistance?(MO): 1000
Operating Voltage?(VDC): 100
Body Features
Header Type: Pin Header
Daisy Chain: Without
Contact Features
Contact Mating Area Plating Material: Tin
Contact Design: Dual Beam
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin
Contact Current Rating?(A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Gold
Termination Features
Termination Method to PC Board: Through Hole
Mechanical Attachment
PCB Mount Retention: Without
Mating Alignment Type: Polarization
Read moreShow less
Shrouded: Yes
Connector: Style Plug
Profile: Low
Applies To: Cable
Product Type: Connector
Board Standoff: Without
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Connector System: Wire-to-Board
Ejection Latches: Without
Configuration Features
Number of Positions: 10
Electrical Characteristics
Insulation Resistance?(MO): 1000
Operating Voltage?(VDC): 100
Body Features
Header Type: Pin Header
Daisy Chain: Without
Contact Features
Contact Mating Area Plating Material: Tin
Contact Design: Dual Beam
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin
Contact Current Rating?(A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Gold
Termination Features
Termination Method to PC Board: Through Hole
Mechanical Attachment
PCB Mount Retention: Without
Mating Alignment Type: Polarization
RBIMMM10V
Data sheet
- Product type
- Connector
- Serie
- IDC
- Amperage
- 1.5A
- Material
- PBT (Polybutylene terephthalate)
- Color
- Red
- Operating temperature
- -40°C to +105°C
- Dimensions
- 6,80x16,20x5,10 (L x W x H)
- Flammability
- 94V-0
- Voltage
- 100V
- Contact material
- Phosphor Bronze
- Mounting
- On cable
- Wire range
- 28 AWG
- Kind
- Male
- Number of poles
- 10
- Number of rows
- 2
- Pitch
- 1.27 mm
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 2
- Unit Type
- pieces
