0,58 €
(tax excl.)
0,71 €
(impuestos inc.)
Código ErreBi: 13176Código productor: 215083-8Productor: TE/Connectivity

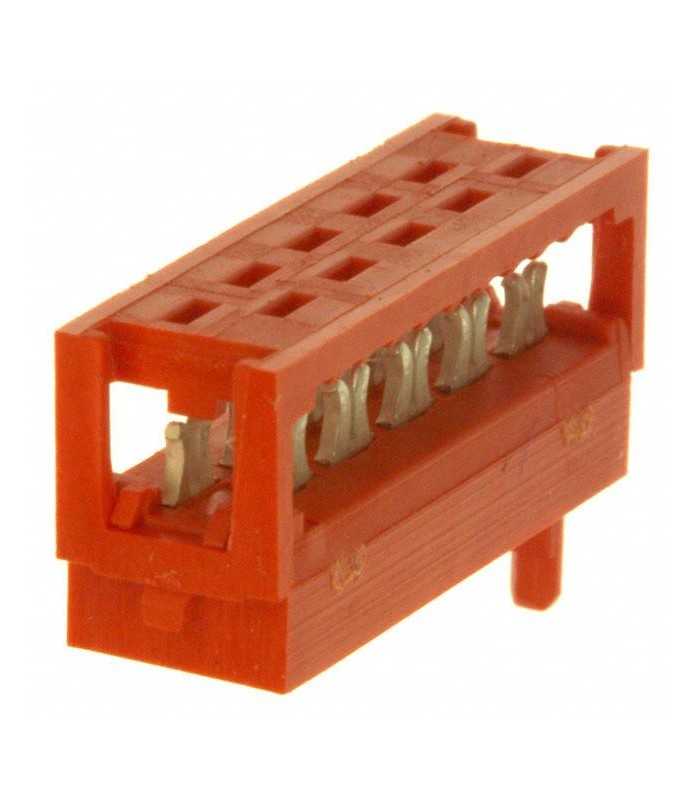

Conector IDC Micro Match Macho 10 Vías
Código ErreBi: 20348
Código productor: 1-215083-0
Productor: TE/Connectivity
Lee masShow lessCódigo productor: 1-215083-0
Productor: TE/Connectivity
0,53 €
(tax excl.)
0,65 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBIMMM10V
Marca:
A lista de deseos
Mounting Orientation: Vertical
Shrouded: Yes
Connector: Style Plug
Profile: Low
Applies To: Cable
Product Type: Connector
Board Standoff: Without
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Connector System: Wire-to-Board
Ejection Latches: Without
Configuration Features
Number of Positions: 10
Electrical Characteristics
Insulation Resistance?(MO): 1000
Operating Voltage?(VDC): 100
Body Features
Header Type: Pin Header
Daisy Chain: Without
Contact Features
Contact Mating Area Plating Material: Tin
Contact Design: Dual Beam
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin
Contact Current Rating?(A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Gold
Termination Features
Termination Method to PC Board: Through Hole
Mechanical Attachment
PCB Mount Retention: Without
Mating Alignment Type: Polarization
Lee masShow less
Shrouded: Yes
Connector: Style Plug
Profile: Low
Applies To: Cable
Product Type: Connector
Board Standoff: Without
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Connector System: Wire-to-Board
Ejection Latches: Without
Configuration Features
Number of Positions: 10
Electrical Characteristics
Insulation Resistance?(MO): 1000
Operating Voltage?(VDC): 100
Body Features
Header Type: Pin Header
Daisy Chain: Without
Contact Features
Contact Mating Area Plating Material: Tin
Contact Design: Dual Beam
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin
Contact Current Rating?(A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Gold
Termination Features
Termination Method to PC Board: Through Hole
Mechanical Attachment
PCB Mount Retention: Without
Mating Alignment Type: Polarization
RBIMMM10V
Ficha técnica
- Tipo de producto
- Conector
- Serie
- IDC
- Amperaje
- 1.5A
- Material
- PBT (Tereftalato de polibutileno)
- Color
- Rojo
- Temperatura de funcionamiento
- -40°C a +105°C
- Dimensión
- 6,80x16,20x5,10 (L x W x H)
- Inflamabilidad
- 94V-0
- Voltaje
- 100V
- Material de contacto
- Bronce fosforado
- Montaje
- En cable
- Rango de cable
- 28 AWG
- Clase
- Macho
- Número de polos
- 10
- Número de Filas
- 2
- Paso
- 1.27 mm
- Orientación
- 180°
- Cobertura de contactor
- Estaño
- Minima pedido
- 2
- Tipo de unidad
- piezas
