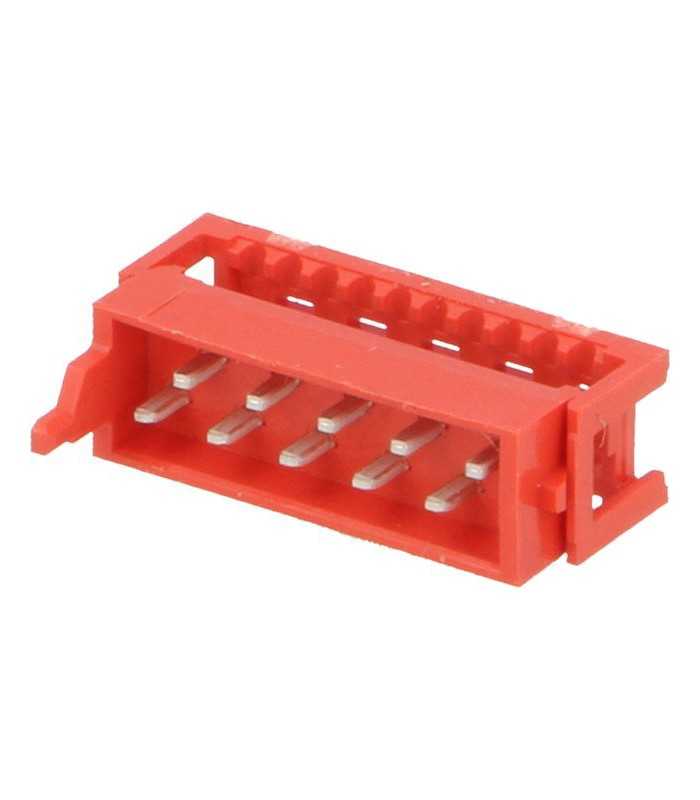

Connettore IDC Micro Match Maschio 10 Vie

Connettore IDC Micro Match Maschio 10 Vie

Codice ErreBi: 20348
Codice produttore: 1-215083-0
Produttore: TE/Connectivity

Read moreShow less

0,53 € (Tasse escluse)

0,65 € (Tasse incl.)

Sconti per quantità

Quantità	Prezzo unitario	Salva
2	0,65 €	0,00 €
10	0,58 €	0,64 €
26	0,52 €	3,35 €
50	0,48 €	8,08 €
100	0,42 €	22,70 €
250	0,36 €	72,66 €
500	0,32 €	161,65 €
1000	0,29 €	355,95 €

Disponibile in magazzino 634 Articoli

La quantità minima ordinabile per questo prodotto è 2.

Condizione

Nuovo

Reference:

RBIMMM10V

Brand:

TE Connectivity

Metti in lista desideri

Descrizione

Mounting Orientation: Vertical
Shrouded: Yes
Connector: Style Plug
Profile: Low
Applies To: Cable
Product Type: Connector
Board Standoff: Without
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Connector System: Wire-to-Board
Ejection Latches: Without
Configuration Features
Number of Positions: 10
Electrical Characteristics
Insulation Resistance?(MO): 1000
Operating Voltage?(VDC): 100
Body Features
Header Type: Pin Header
Daisy Chain: Without
Contact Features
Contact Mating Area Plating Material: Tin
Contact Design: Dual Beam
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin
Contact Current Rating?(A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Gold
Termination Features
Termination Method to PC Board: Through Hole
Mechanical Attachment
PCB Mount Retention: Without
Mating Alignment Type: Polarization
